RZT 26520 (2691079-00) - Murray 52" Zero-Turn Mower, 26hp (2012) Fender Group (7501679dev) Parts Diagram

52" Zero-Turn Mower, 26hp

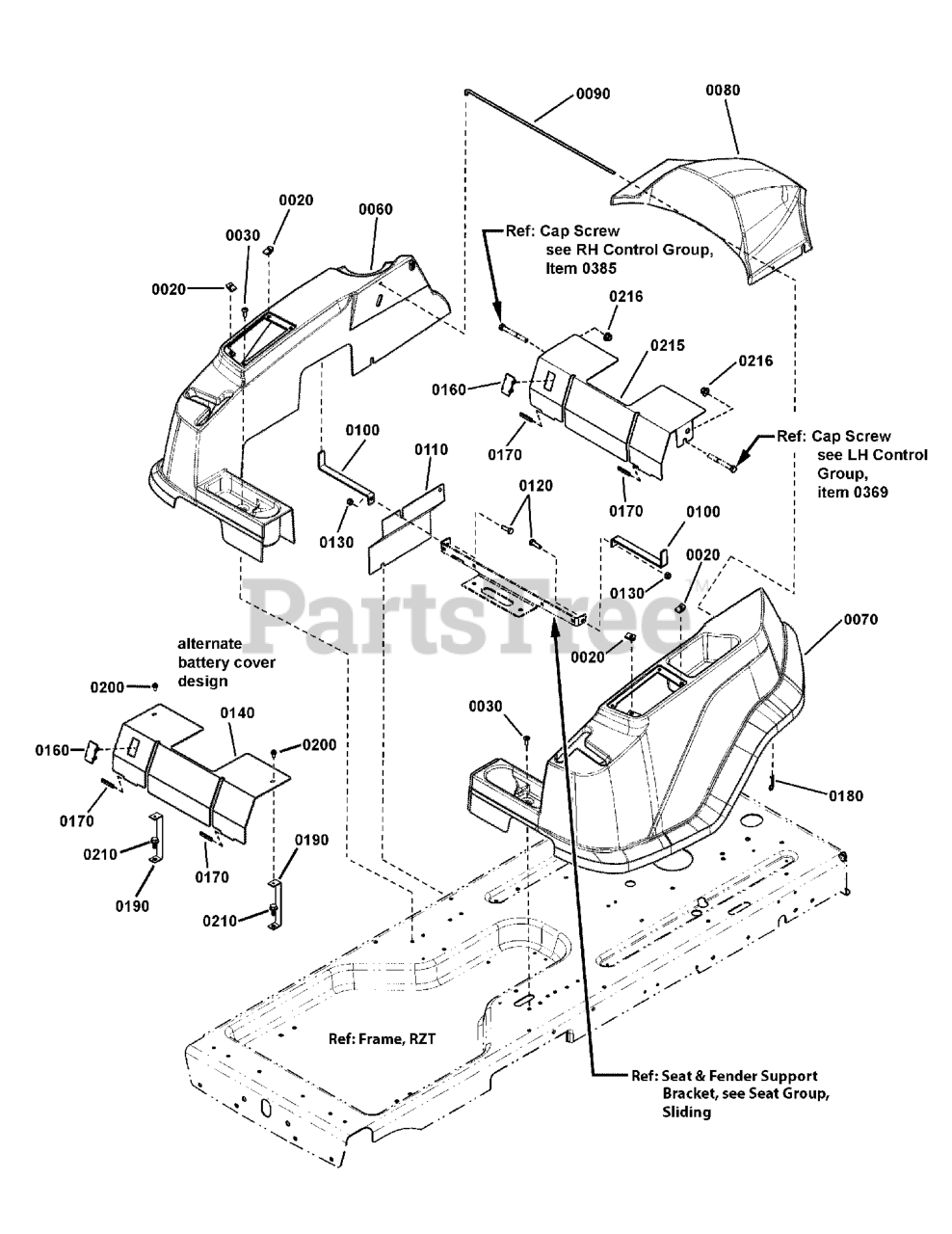

Fender Group (7501679dev) Parts Diagram

  • Title

0020

Murray 7023295

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0030

Murray 7091246

SCREW, 1/4-20 x 3/4" Pan Head Self-Tap (Torx)
(Superseded to 7091246YP)

$3.99

$

In Stock, Qty 20+

0

0060

Murray 7103775

FENDER, RH
(Superseded to 7103775YP)

$347.99

$

Usually ships in 2-12 days

0

0070

Murray 7103776

FENDER, LH
(Superseded to 7103776YP)

$302.99

$

Usually ships in 2-12 days

0

0080

Murray 7103777

COVER, Engine
(Superseded to 7103777YP)

$68.99

$

Usually ships in 2-12 days

0

0090

Murray 7103998

ROD, Pivot, Hood
(Superseded to 7103998YP)

$47.99

$

Usually ships in 2-12 days

0

0100

Murray 7301101BM

BRACKET, Support, Fender
(Superseded to 7301101BMYP)

$11.99

$

Usually ships in 2-12 days

0

0110

Murray 7301126BM

PLATE, Side, RH
(Superseded to 7301126BMYP)

$26.99

$

Usually ships in 2-12 days

0

0120

Murray 80002716

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5, YZ
(Superseded to 703585)

Note: (Was 7027168)

$4.99

$

In Stock, only 1 left!

0

0130

Murray 7091298

NUT, 5/16-18 3B Nyloc, YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0140

Murray 7301216BM

COVER, Battery, w/Bracket Holes, 285Z (Early Version)
(Superseded to 7301216BZYP)

$27.99

$

Usually ships in 2-12 days

0

0160

Murray 1722611

PLUG, Switch Hole, Dash
(Superseded to 1722611SM)

$6.99

$

In Stock, only 1 left!

0

0170

Murray 7104514

STRIP, Trim, 1.50
(Superseded to 7104514YP)

$3.49

$

Usually ships in 2-12 days

0

0180

HAIRPIN, .080" Wire, 1.19" Long, Zinc/Clear

Note: (Was 1722460)

$

$

Not available

0190

Murray 7301217BM

BRACKET, Battery Cover (Early Version)
(Superseded to 7301217BZYP)

$12.99

$

Usually ships in 2-12 days

0

0200

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap, BZ

Note: (Was 7091122)

$

$

Not available

0210

Murray 720353

SCREW, 3/8-16 x 3/4" Hex Washer Head Self-Tap
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

0215

Murray 7301161

COVER, Battery, 285Z
(Superseded to 7301161BZYP)

$142.99

$

Usually ships in 2-12 days

0

0216

Murray 1960687

NUT, 3/8-16 Hex Flange Esna, Black
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0
