RZT 26520 (2691079-00) - Murray 52" Zero-Turn Mower, 26hp (2012) Control Group - Right Hand with Electric Height of Cut (7502145) Parts Diagram

52" Zero-Turn Mower, 26hp

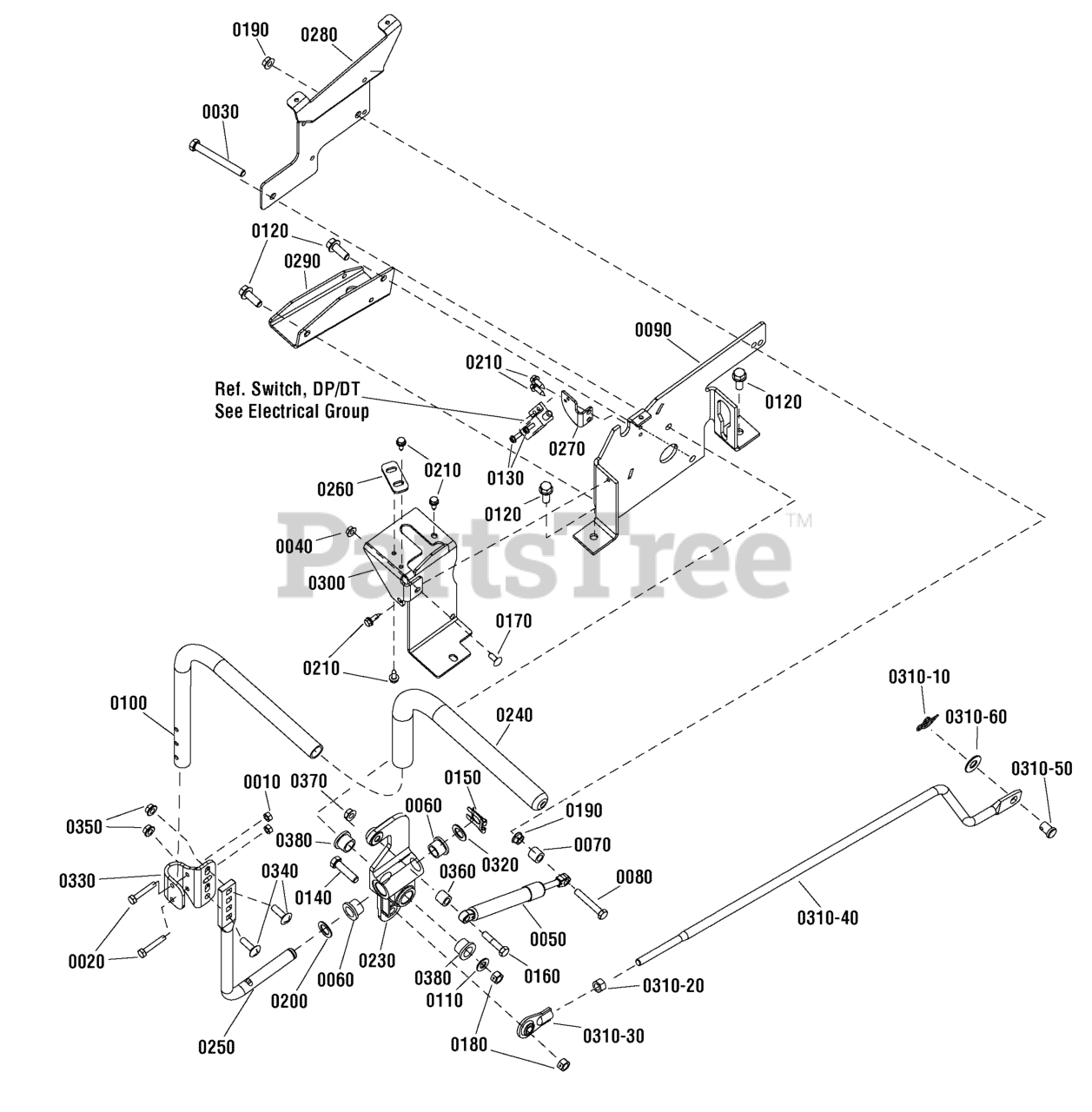

Control Group - Right Hand with Electric Height of Cut (7502145) Parts Diagram

  • Title

0010

Murray 7090372SM

NUT, 1/4-20 Hex Nyloc
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0020

Murray 1922837SM

CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0030

Murray 7200012SM

BOLT, Shoulder, 3/8-16

$15.99

$

Usually ships in 2-12 days

0

0040

Murray 1960294SM

NUT, Hex Flange Whiz Lock Small, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

0050

Murray 5100728SM

DAMPENER, Control
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 16

0

0060

Murray 7013874SM

BUSHING

$5.99

$

In Stock, Qty 5

0

0070

Murray 7023206YP

SPACER, .625 OD x .380 ID x .564 L

$8.49

$

Usually ships in 2-12 days

0

0080

Murray 7027174SM

SCREW, 5/16-18 x 2" Hex Head Cap, GR 5, YZ
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

0090

Murray 7043330BMYP

CONTROL BRACKET, RH

$33.99

$

Usually ships in 2-12 days

0

0100

Murray 7301168BZYP

HANDLE, Adjustable

$30.99

$

Usually ships in 2-12 days

0

0110

Murray 1670971SM

WASHER, Thrust

$4.49

$

In Stock, Qty 6

0

0120

Murray 7090324SM

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0130

Murray 7090913SM

SCREW, #10-24 x 1/2" Hex Washer Self-Tap, Torx
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

0140

Murray 7091497SM

SCREW, 3/8-16 x 1-1/2 Hex Head Cap, GR 5, YZ
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

0150

Murray 7104704YP

CLIP, Spring, 5/8 OD, Shaft

$5.49

$

Usually ships in 2-12 days

0

0160

Murray 7900003SM

BOLT, Shoulder, 5/16 x 1/4-20

$4.99

$

In Stock, only 4 left!

0

0170

Murray 7091573YP

BOLT, 1/4-20 x 5/8" Round Head Short Square Neck, GR 5, YZ

$4.49

$

In Stock, only 1 left!

0

0180

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

0190

Murray 7091601SM

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0200

Murray 7091628SM

WASHER, .64 x .99 x .05 Flat, YZ

$4.49

$

In Stock, only 3 left!

0

0210

Murray 7090290SM

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap, Black
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0230

Murray 7400001SM

CONTROL BRACKET, RH
(Superseded to 7400001BMYP)

$173.99

$

Usually ships in 2-12 days

0

0240

Murray 7100051YP

GRIP, Handle

$10.99

$

Usually ships in 2-12 days

0

0250

Murray 7104677YP

ROD, Adjustable Handle

$40.99

$

In Stock, only 1 left!

0

0260

Murray 7300009AYP

PLATE, FWD / REV ADJUST

$7.99

$

Usually ships in 2-12 days

0

0270

Murray 7300032BMYP

BRACKET, Switch

$9.99

$

Usually ships in 2-12 days

0

0280

Murray 7301072BMYP

BRACKET, Fender Support, RH

$23.99

$

Usually ships in 2-12 days

0

0290

Murray 7301103BMYP

BRACKET, Mount, Motor

$14.99

$

Usually ships in 2-12 days

0

0300

Murray 7301129BMYP

BRACKET, Guide, Stick, Control, RH

$54.99

$

Usually ships in 2-12 days

0

0310

ROD ASSEMBLY

$

$

Not available

0310-10

Murray 7091594SM

COTTER PIN, 1/2 Self, YZ

$2.99

$

In Stock, only 2 left!

0

0310-20

Murray 7091630SM

NUT, 3/8-24 Hex, GR B, YZ
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

0310-30

Murray 7100743YP

ROD END, (3/8-24 thread)

$10.99

$

In Stock, only 2 left!

0

0310-40

Murray 7104168YP

ROD, Link Foward/Reverse (3/8-24 thread)

$30.99

$

Usually ships in 2-12 days

0

0310-50

Murray 7900000SM

PIN, 7/16 x 1" Clevis

$6.99

$

Usually ships in 2-12 days

0

0310-60

Murray 7031961YP

WASHER, 7/16" Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

0320

Murray 7900016SM

WASHER, 5/8 ID x 1.00 OD x .065 Nylon

$3.49

$

Usually ships in 2-12 days

0

0330

Murray 7074628BZYP

BRACKET, Handle Adjustment

$12.99

$

Usually ships in 2-12 days

0

0340

Murray 7091714YP

BOLT, 5/16-18 x 1" Square Neck Carriage
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

0350

Murray 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0360

Murray 7200006SM

SPACER, 9/16 OD

$11.99

$

In Stock, only 2 left!

0

0370

Murray 7092126SM

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0380

Murray 7014409SM

BEARING, Flange

$6.99

$

In Stock, Qty 19

0
