RZT 22501 BVE2 (7800153) - Snapper 50" Zero-Turn Mower, 22hp TRANSAXLE GROUP Parts Diagram

50" Zero-Turn Mower, 22hp

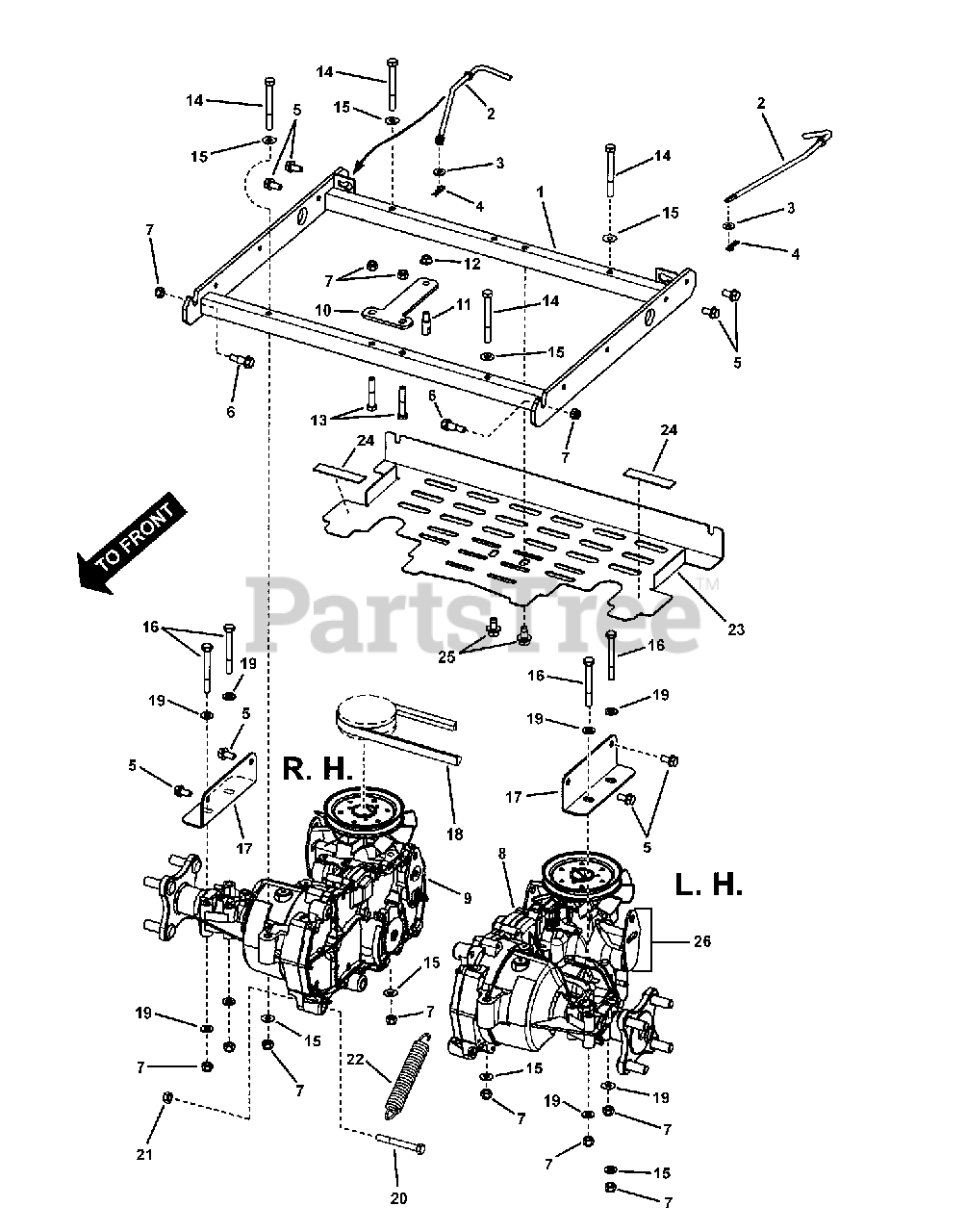

TRANSAXLE GROUP Parts Diagram

  • Title

1

Snapper 7400020

WELDMENT, Transaxle Support
(Superseded to 7400020SM)

$210.99

$

Usually ships in 2-12 days

0

2

Snapper 7100229

ROD, Roll Release
(Superseded to 7100229SM)

$5.99

$

Usually ships in 2-12 days

0

3

Snapper 7091294

WASHER, .28 x .63 x .06 Flat, GR 5
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7012431

HAIR PIN, 1-1/8"
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

5

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7014664

SHOULDER BOLT, 5/16-18
(Superseded to 7014664SM)

Note: .530 long shoulder

$1.99

$

Usually ships in 2-12 days

0

7

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7078112

TRANSAXLE, LH RZT
(Superseded to 7078112SM)

Note: ZA-AHBB-2D5A-2DCX

$1003.99

$

Usually ships in 2-12 days

0

9

Snapper 7078111

TRANSAXLE, RH RZT
(Superseded to 7078111SM)

Note: ZA-DHBB-2D5A-2DCX

$1003.99

$

Usually ships in 2-12 days

0

10

Snapper 7300082

BRACKET, Anti-Rotation
(Superseded to 7300082SM)

$25.99

$

Usually ships in 2-12 days

0

11

Snapper 7200046

PIN, Anti-Rotation, RZT Clutch
(Superseded to 7200046SM)

$112.99

$

Usually ships in 2-12 days

0

12

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

13

Snapper 7091908

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5, YZ
(Superseded to 7091908YP)

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 7091830

SCREW, 5/16-18 x 3" Hex Head Cap, GR 5, YZ
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7015686

SHIM WASHER, 5/16" I.D.
(Superseded to 7015686SM)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7091944

SCREW 5/16-18 x 2-3/4" Hex Head Cap, GR 5, YZ
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

17

Snapper 7300000

BRACKET, Transaxle Support
(Superseded to 7300000BMYP)

$12.99

$

Usually ships in 2-12 days

0

18

Snapper 7100102

V-BELT, HA Sect. (wrapped) 58.00 effective length
(Superseded to 7100102SM)

Note: hydro drive

$43.99

$

In Stock, Qty 20+

0

19

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

20

Snapper 7091703

SCREW, 7/16-20 x 2-1/2" Hex Head Cap, GR 5 (Special Head)
(Superseded to 7091703SM)

Note: or 7900027 (7/16-20 x 4" Hex Head Cap Screw)

$7.99

$

Usually ships in 2-12 days

0

21

Snapper 7090377

NUT, 7/16-20 Hex Center Lock Jam, GR 5 or B
(Superseded to 7090377SM)

$5.49

$

In Stock, Qty 20+

0

22

Snapper 2159106

SPRING, Extension, .562 OD x 4.250 long x .049 Wire B
(Superseded to 703144)

Note: or 0159106

$5.99

$

In Stock, Qty 6

0

23

Snapper 7300554

GUARD, Euro 44

$

$

Currently unavailable

24

Snapper 7100605

PAD, Rubber Adhesive
(Superseded to 7100605SM)

$

$

Not available

25

Snapper 7091198

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 1735484

ARM, Control Kit
(Superseded to 1735484SM)

Note: (Used on both R.H. & L.H. Transaxle)

$28.99

$

Usually ships in 2-12 days

0
