RZT 22501 BVE2 (7800153) - Snapper 50" Zero-Turn Mower, 22hp 50" DECK GROUP (Final Assembly) Parts Diagram

50" Zero-Turn Mower, 22hp

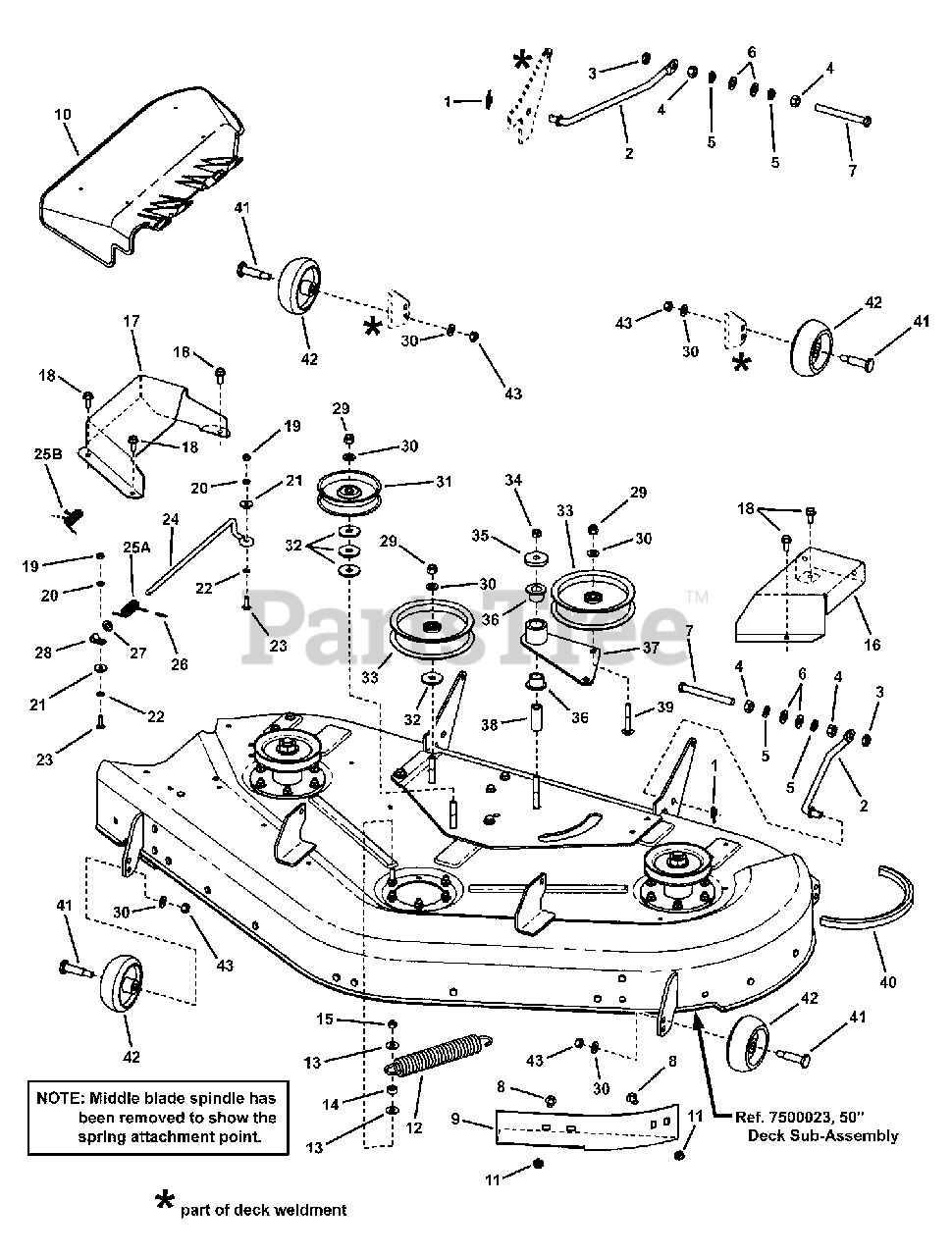

50" DECK GROUP (Final Assembly) Parts Diagram

  • Title

Snapper 7050587

DECK GROUP, 50"

$

$

Currently unavailable

1

Snapper 7091594

COTTER PIN, 1/2 Self Locking, YZ
(Superseded to 7091594SM)

$2.99

$

In Stock, only 3 left!

0

2

Snapper 7100488

ROD, Stabilizer
(Superseded to 7100488SM)

$35.99

$

In Stock, only 2 left!

0

3

Snapper 7090377

NUT, 7/16-20 Hex Center Lock Jam, GR 5 or B
(Superseded to 7090377SM)

$5.49

$

In Stock, Qty 20+

0

4

Snapper 7090460

NUT, 7/16-20 Hex, GR 5 or B
(Superseded to 7090460SM)

$2.49

$

Usually ships in 2-12 days

0

5

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7091595

WASHER, .47 x .92 x .065 Flat
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

7

Snapper 7900027

SCREW, 7/16-20 x 4" Hex Head Cap, GR 5
(Superseded to 7900027SM)

$15.99

$

Usually ships in 2-12 days

0

8

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 1724538

BAFFLE, Anti-Blowout
(Superseded to 1724538ASM)

$45.99

$

In Stock, only 1 left!

0

10

Snapper 1705449

DEFLECTOR, Black Plastic
(Superseded to 1705449SM)

$122.99

$

In Stock, only 2 left!

0

11

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Snapper 7100157

SPRING, Idler, 44/50" Deck
(Superseded to 7100157SM)

Note: Ref. 7029272

$29.99

$

In Stock, only 1 left!

0

13

Snapper 7091528

WASHER, 3/8" Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7028620

SPACER, .340 I.D. x .63 O.D. x .310 Thick
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

15

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR 5 or B, YZ
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7300204

COVER, Spindle, LH, Red, RZT 44/50"

$

$

Not available

17

Snapper 7300203

COVER, Spindle, RH, Red, RZT 44/50"
(Superseded to 7300203YP)

$50.99

$

Usually ships in 2-12 days

0

18

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 1916622

NUT, 1/4-20 Hex
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 1916964

LOCKWASHER, 1/4" Spring
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

21

Snapper 1960353

WASHER, Large 1/4 ID x 5/8 OD x .134/.109
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

22

Snapper 1960518

RETAINER, 1/4" Bolt
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 1931318

BOLT, 1/4-20 x 7/8" Round Head Short Square Neck Carriage, GR 5
(Superseded to 1931318SM)

$4.49

$

In Stock, only 2 left!

0

24

Snapper 1706709

ROD, Pivot, Side Discharge, 50" Deck
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 20+

0

25A

Snapper 1723938

SPRING, Torsion
(Superseded to 1723938SM)

$

$

Not available

25B

Snapper 7101082

SPRING, Torsion, Chute 44/50
(Superseded to 7101082SM)

Note: replaces items 25A & 26

$8.49

$

In Stock, Qty 20+

0

26

Snapper 1723323

CAP, Spring End
(Superseded to 1723323SM)

$4.99

$

In Stock, only 1 left!

0

27

Snapper 1919326

WASHER, .34 ID x .75 OD Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 1704873

CLAMP
(Superseded to 1704873SM)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Snapper 7100448

PULLEY, 4" Flat Idler
(Superseded to 7100448SM)

$59.99

$

In Stock, Qty 6

0

32

Snapper 7091331

WASHER, .406 x 1.50 x .120 Flat
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

33

Snapper 7034422

PULLEY, Flat Idler 5.0 x .375
(Superseded to 7034422SM)

Note: belt clutch

$38.99

$

In Stock, Qty 20+

0

34

Snapper 7091585

NUT, Hex Cap Lock 3/8-16
(Superseded to 703347)

Note: Was 7090546

$4.99

$

In Stock, only 4 left!

0

35

Snapper 7091962

WASHER, .468 x 1.625 x .25 Flat
(Superseded to 7091962SM)

$7.99

$

In Stock, only 1 left!

0

36

Snapper 7015363

BEARING, Powdered Metal
(Superseded to 7015363SM)

$

$

Not available

37

Snapper 7400057

WELDMENT, Idler Swing Arm
(Superseded to 7400057SM)

$111.99

$

In Stock, only 1 left!

0

38

Snapper 7200033

SPACER, Idler (.75 x .390 x 1.800)
(Superseded to 7200033SM)

$16.99

$

Usually ships in 2-12 days

0

39

Snapper 7900009

BOLT, 3/8-16 x 2-1/4" Short Square Neck Carriage, GR 5
(Superseded to 7900009SM)

$3.99

$

In Stock, only 1 left!

0

40

Snapper 7100515

BELT, B Section, 150" Effective Length
(Superseded to 7100515SM)

$136.99

$

In Stock, only 1 left!

0

41

Snapper 2108765

SHOULDER BOLT, 3/8-16 x 3/4" YZ
(Superseded to 2108765SM)

Note: replaces 7091526 (3/8-24 x 5/8")

$6.49

$

In Stock, Qty 20+

0

42

Snapper 1714760

WHEEL, 4 x 1-7/8" Offset
(Superseded to 1714760SM)

Note: replaces 7026122 (1-1/2" offset)

$6.49

$

In Stock, Qty 20+

0

43

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: replaces 7090289 (HCLN, 3/8-24)

$4.99

$

In Stock, only 4 left!

0
