RZT-22 (17AA5A7P712) - Cub Cadet 50" RZT Zero-Turn Mower Frame And Drive Idler Assembly Parts Diagram

50" RZT Zero-Turn Mower

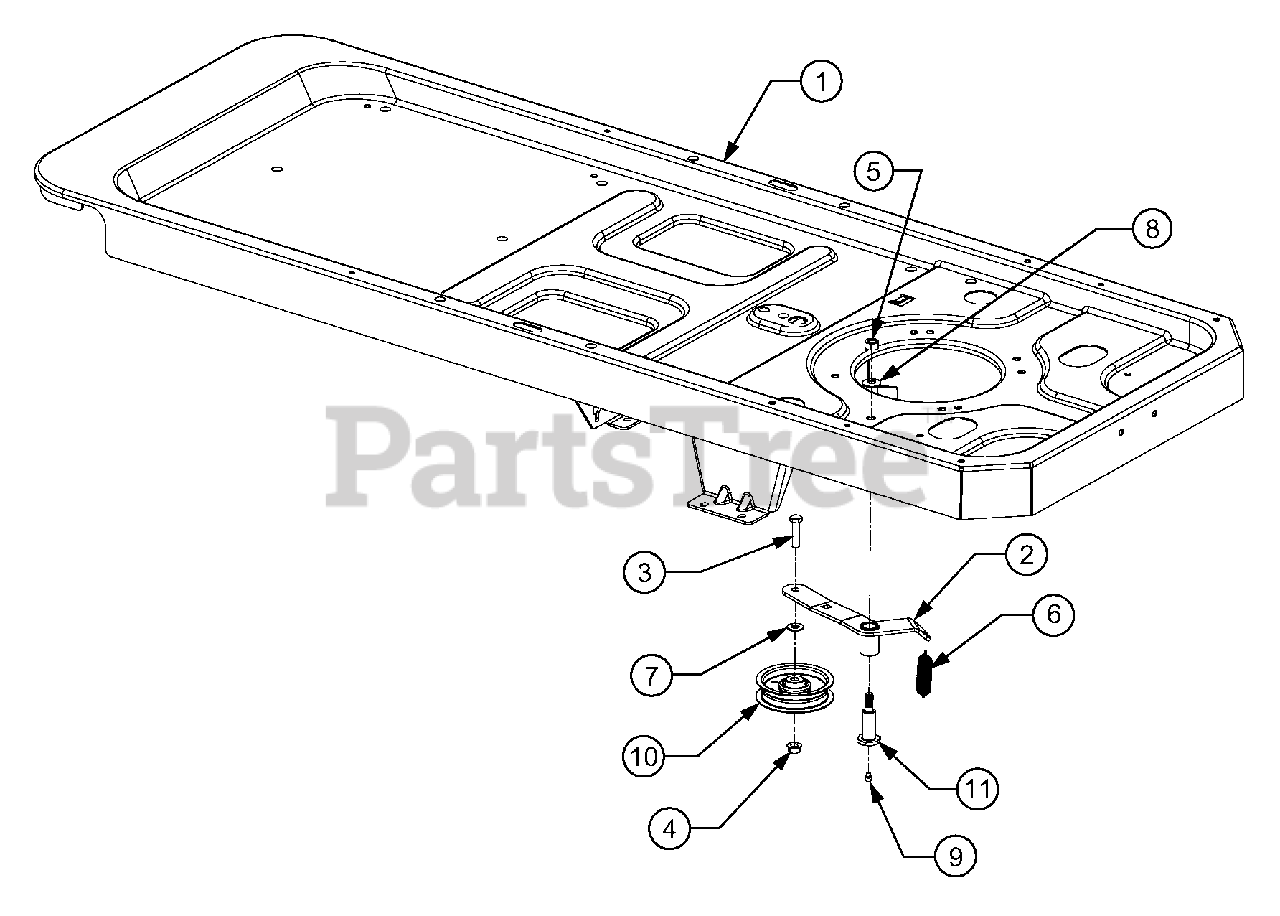

Frame And Drive Idler Assembly Parts Diagram

  • Title

1

Cub Cadet 603-04142

Frame Assembly
(Superseded to 603-04303E)

Variations

Cub Cadet 603-04142-0650

USE 603-04303E-0650 FRAME-ASS - RED METALLIC (0650)

$

$

Not available

Cub Cadet 603-04142-0716

USE 603-04303B FRAME-RZT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

1

Cub Cadet 777D03479

Graphic, Cub Cadet
(Superseded to 777D09506)

Note: Not shown

$18.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04147

Idler Arm, Drive
(Superseded to 603-04147A-0637)

Variations

Cub Cadet 603-04147-0637

Idler Arm Assembly, Black - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 6

0

4

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0290

Nut, Hex Lock, 7/16-14 GRA

$4.99

$

In Stock, Qty 11

0

6

Cub Cadet 732-0626

Spring, Extension, .75 x 5.06

$12.99

$

In Stock, only 1 left!

0

7

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0322

Washer, Flat, .45 x 1.25 x .164 HT

$9.49

$

In Stock, Qty 8

0

9

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 756-0627B

Pulley, Idler, 3.50 Dia.
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

11

Cub Cadet 738-3005A

Screw, Shoulder, .68 x 1.59
(Superseded to 638-04012A)

$21.99

$

In Stock, Qty 7

0
