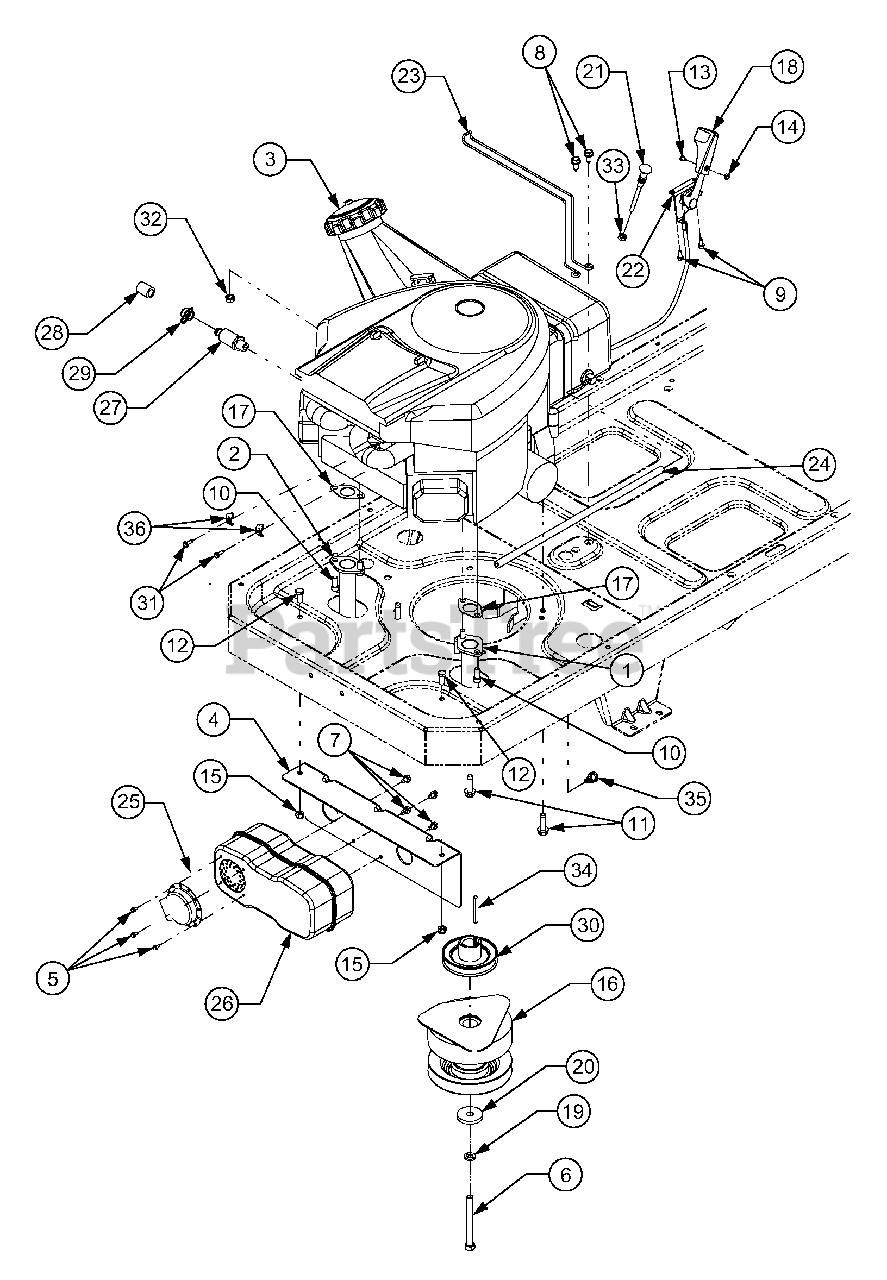

RZT-22 (17AA5A7P710) - Cub Cadet 50" RZT Zero-Turn Mower Engine Connections Parts Diagram

50" RZT Zero-Turn Mower

Engine Connections Parts Diagram

  • Title

1

Cub Cadet 603-04162

Tube, Exhaust RH

$89.99

$

In Stock, only 2 left!

0

2

Cub Cadet 603-04163

Tube, Exhaust LH

$80.99

$

In Stock, only 1 left!

0

3

Cub Cadet 651-04058

Tank, Fuel, 3.0 Gal.
(Superseded to 751-10057D)

$309.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 751-3124B

Cap, Fuel
(Superseded to 951-3124E)

Note: Not shown

$36.99

$

In Stock, only 1 left!

0

4

Cub Cadet 703-05441

Bracket, Muffler Mounting
(Superseded to 703-05441A)

$52.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0227

Screw, Hex Wash. Hd. Tapp #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-04248

Screw, Hex Cap, 7/16-20 x 4.0 GR5

$10.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04261

Screw, Hex Wash. Hd. Tapp #12-16 x .5

$6.49

$

In Stock, only 3 left!

0

10

Cub Cadet 710-1314A

Screw, Socket Hd. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1315

Screw, Hex Wash. Hd. Tapp 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3217

Screw, Truss Hd. Mach. #8-32 x .375

$6.99

$

In Stock, Qty 7

0

14

Cub Cadet 712-0142

Nut, Hex, #8-32

$4.49

$

In Stock, Qty 10

0

15

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 717-04127

Clutch Assembly, Electric PTO
(Superseded to 917-04127)

$604.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 721-0460

Gasket, Exhaust
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

18

Cub Cadet 731-3161

Knob, Throttle Control
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

20

Cub Cadet 736-04131

Washer, Flat, .438 x 1.75 x .25

$15.99

$

In Stock, only 1 left!

0

21

Cub Cadet 746-04143

Cable, Choke, 61Lg
(Superseded to 946-04143)

$59.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 746-1086

Cable, Throttle, 39.0 Lg
(Superseded to 946-1086)

$33.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 747-04228

Wire, Tank Mounting
(Superseded to 747-04228A)

$

$

Not available

24

Cub Cadet 751-0535-16

Hose, Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

24

Cub Cadet 726-0205

Clamp, Hose

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 751-0564A

Deflector, Muffler
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

26

Cub Cadet 751-0616A

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

27

Cub Cadet 751-3140

Valve, Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 3 left!

0

28

Cub Cadet 751-3141

Hose, Oil Drain Extension
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

29

Cub Cadet 751-3142

Cap, Oil Drain Valve

$4.49

$

In Stock, Qty 14

0

30

Cub Cadet 756-04102A

Pulley, Drive, 3.25 Dia.

$85.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-1237

Screw, Hex Wash. Hd. Tapp #10-32 x 0.625

$4.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 712-0711

Nut, Hex Jam, 3/8-24 GR2

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 714-04037

Key, Square, 1/4 x 2.25

$

$

Not available

35

Cub Cadet 726-3055

Clip, Cable Retainer

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet BS-691024

Clamp, Casing

$3.99

$

In Stock, Qty 7

0
