RZT 20420 BVE2 (7800010) - Snapper 42" Zero-Turn Mower, 20hp FRONT AXLE GROUP Parts Diagram

42" Zero-Turn Mower, 20hp

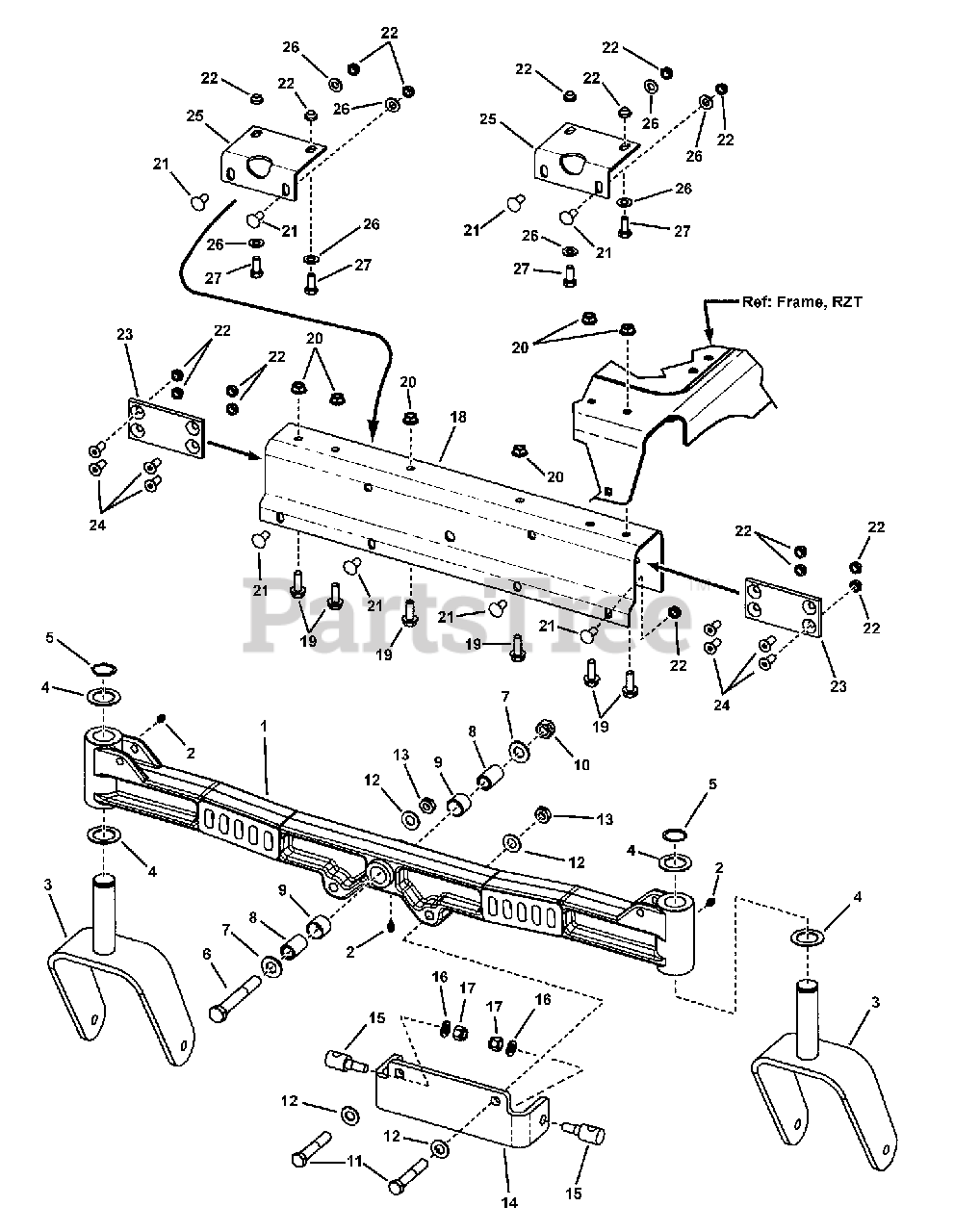

FRONT AXLE GROUP Parts Diagram

  • Title

1

Snapper 7100321

FRONT AXLE, Cast (Cardinal Red)
(Superseded to 7100321YP)

$313.99

$

Usually ships in 2-12 days

0

2

Snapper 7013864

LUBE FITTING, 3/16" Press-In
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

3

Snapper 7400075

WELDMENT, Caster (Cardinal Red)
(Superseded to 7400075YP)

$107.99

$

Usually ships in 2-12 days

0

4

Snapper 7013855

THRUST WASHER, 1" I.D.
(Superseded to 7013855SM)

$7.49

$

In Stock, Qty 6

0

5

Snapper 7012709

RETAINING RING, 1" External
(Superseded to 703993)

$3.49

$

In Stock, Qty 13

0

6

Snapper 7091558

SCREW, 1/2-13 x 3-1/2" Hex Head Cap, YZ
(Superseded to 7091558SM)

$4.99

$

In Stock, only 1 left!

0

7

Snapper 7090250

WASHER, 1/2" SAE Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

8

Snapper 7011309

SPACER, Axle Pivot
(Superseded to 7011309SM)

$7.49

$

Usually ships in 2-12 days

0

9

Snapper 7012706

BEARING SLEEVE
(Superseded to 7012706SM)

$10.99

$

In Stock, only 4 left!

0

10

Snapper 7091894

NUT, 1/2-13 Hex Center Lock, GR 5, YZ
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

11

Snapper 7091703

SCREW, 7/16-20 x 2-1/2" Hex Head Cap, GR 5 (Special Head)
(Superseded to 7091703SM)

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 7091595

WASHER, .47 x .92 x .065 Flat
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

13

Snapper 7090377

NUT, 7/16-20 Hex Center Lock Jam, GR 5 or B
(Superseded to 7090377SM)

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7300080

BRACKET, Quick Hitch
(Superseded to 7300080SM)

$25.99

$

Usually ships in 2-12 days

0

15

Snapper 7200028

SWIVEL, 3/8-16 Inline
(Superseded to 7200028SM)

$73.99

$

In Stock, only 2 left!

0

16

Snapper 7032030

WASHER, 13/32 x 1-1/4" Flat
(Superseded to 7032030SM)

$4.49

$

In Stock, only 1 left!

0

17

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7300187

BRACKET, Axle (Cardinal Red)
(Superseded to 7300187YP)

$45.99

$

Usually ships in 2-12 days

0

19

Snapper 7091905

BOLT, 5/16-18 x 7/8" Hex Flange Lock, YZ
(Superseded to 7091905SM)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

21

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

22

Snapper 7091706

NUT, 5/16-18 Hex Top Lock, GR B
(Superseded to 7091706SM)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7100417

PLATE, Friction
(Superseded to 7100417SM)

$20.99

$

Usually ships in 2-12 days

0

24

Snapper 7077683

SCREW, 5/16-18 x 1" Flat Head Countersunk
(Superseded to 7077683SM)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper 7300004

BRACKET, Axle Support
(Superseded to 7300004BMYP)

$21.99

$

In Stock, only 1 left!

0

26

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

27

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5, YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0
