RZT 20420 BVE2 (7800010) - Snapper 42" Zero-Turn Mower, 20hp 42" DECK SPINDLE Parts Diagram

42" Zero-Turn Mower, 20hp

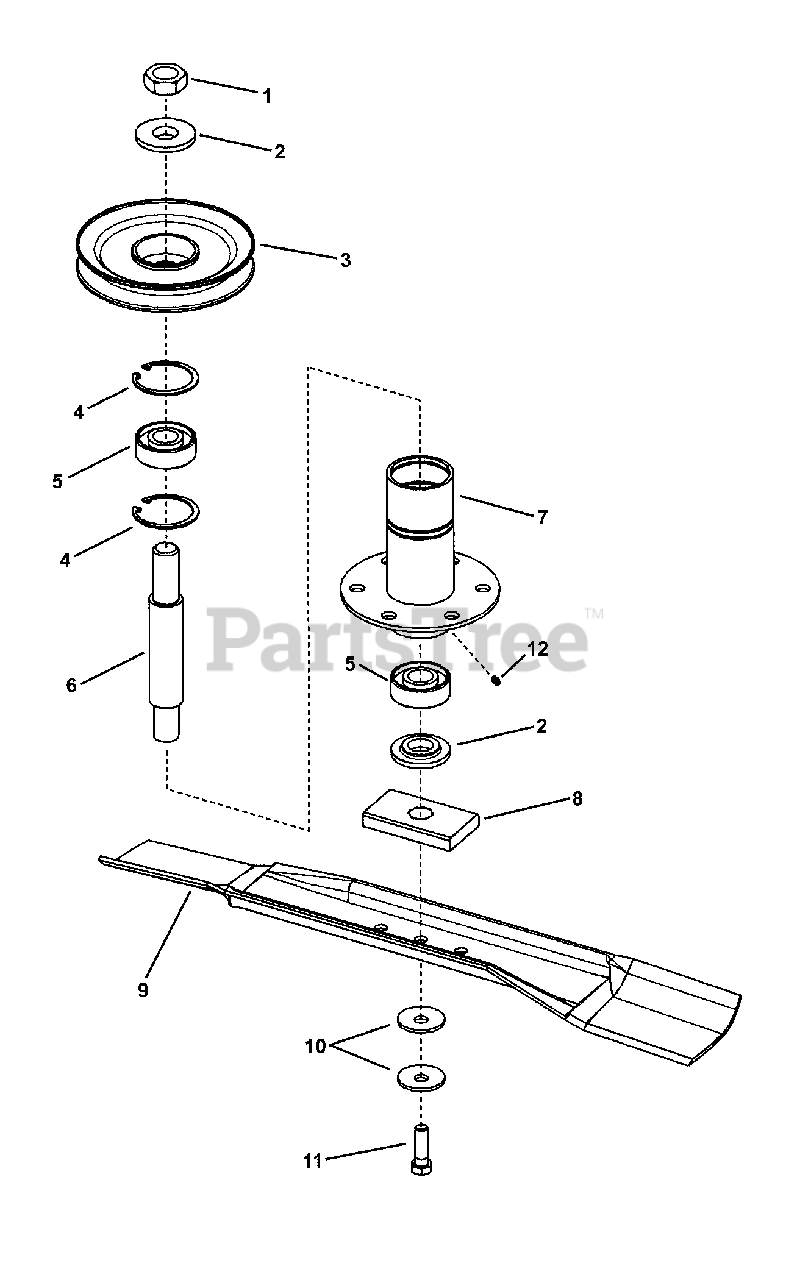

42" DECK SPINDLE Parts Diagram

  • Title
1

Snapper 7074467

NUT, 3/4-16 Hex Jam, GR 8
(Superseded to 7074467SM)

$4.49

$

In Stock, Qty 10

0

2

Snapper 7014407

*WASHER, Spindle (Special)
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

3

Snapper 7036437

PULLEY, 5-1/4" O.D. w/hub
(Superseded to 7036437YP)

$90.99

$

In Stock, only 1 left!

0

4

Snapper 7012491

*RING, 1.85" Internal Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7013313

*BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

6

Snapper 7027668

*SHAFT, Blade Spindle (6.500 overall length)
(Superseded to 7027668YP)

$46.99

$

In Stock, only 1 left!

0

7

Snapper 7047917

*WELDMENT, Spindle Housing
(Superseded to 7051918YP)

$

$

Not available

8

Snapper 7032294

*BLADE HOLDER
(Superseded to 7032294YP)

$

$

Not available

9

Snapper 7026691

BLADE, 21" Standard Lift
(Superseded to 7026691BZYP)

$23.99

$

In Stock, Qty 20+

0

10

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

11

Snapper 7090824

SCREW, 3/8-24 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 7090824YP)

$4.99

$

In Stock, Qty 9

0

12

Snapper 7010817

*LUBE FITTING, 3/16" Press-In
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0
