RZT 20420 BVE2 (7800010) - Snapper 42" Zero-Turn Mower, 20hp 42" DECK GROUP (Sub-Assembly) Parts Diagram

42" Zero-Turn Mower, 20hp

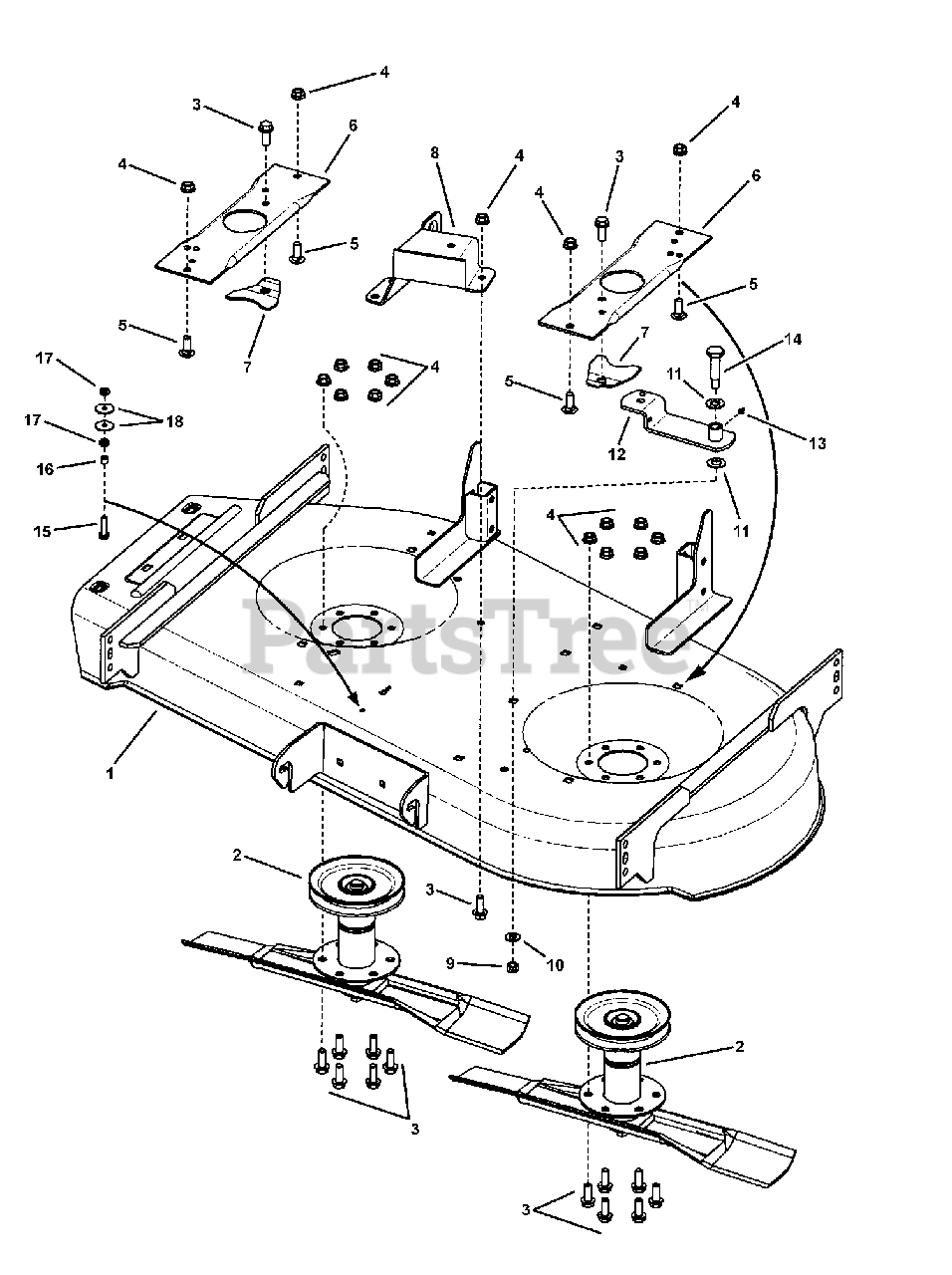

42" DECK GROUP (Sub-Assembly) Parts Diagram

  • Title

Snapper 7500021

SUB-ASSY, 42" Deck w/Spindles

Note: includes 18 items below

$

$

Currently unavailable

1

Snapper 7400009

WELDMENT, 42" Deck

$

$

Not available

2

Snapper 7059723

ASSEMBLY, Spindle Brake

Note: see 42" Deck Spindle pages

$

$

Not available

3

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock, GR 5
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

4

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

5

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5, YZ
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

6

Snapper 7033366

SPINDLE BRACE
(Superseded to 7033366YP)

$39.99

$

Usually ships in 2-12 days

0

7

Snapper 7051747

ASSEMBLY, Spindle Lock
(Superseded to 7051747YP)

Note: w/strux nut

$23.99

$

In Stock, only 1 left!

0

8

Snapper 7044651

WELDMENT, Stationary Idler 42"
(Superseded to 7044651YP)

$103.99

$

Usually ships in 2-12 days

0

9

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

10

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7025074

WASHER, .531 x 1.0 x .063 Flat
(Superseded to 7025074SM)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7400083

WELDMENT, Idler Arm, 38" RZT (Cardinal Red)
(Superseded to 7400082BMYP)

$

$

Not available

13

Snapper 7014871

LUBE FITTING, 3/16"
(Superseded to 7014871SM)

Note: or 7010817

$4.49

$

In Stock, only 4 left!

0

14

Snapper 7091526

SHOULDER BOLT, 3/8-24 x 5/8" YZ
(Superseded to 7091526SM)

Note: 1.530" long shoulder

$

$

Not available

15

Snapper 7090872

BOLT,1/4-20 x 1-1/8" Hex Flange Lock, GR 5
(Superseded to 7090872YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7010916

SPACER, .265 I.D. x .375 O.D. x .300 thick
(Superseded to 7010916YP)

$5.49

$

In Stock, Qty 9

0

17

Snapper 7092126

NUT 1/4-20 Hex Center Lock, GR 5 YZ
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

18

Snapper 7014241

WASHER, .27 x 1.0 x .065 Flat
(Superseded to 7014241YP)

$3.99

$

In Stock, only 1 left!

0
