RZT 20420 BVE2 (7800010) - Snapper 42" Zero-Turn Mower, 20hp 42" DECK GROUP (Final Assembly) Parts Diagram

42" Zero-Turn Mower, 20hp

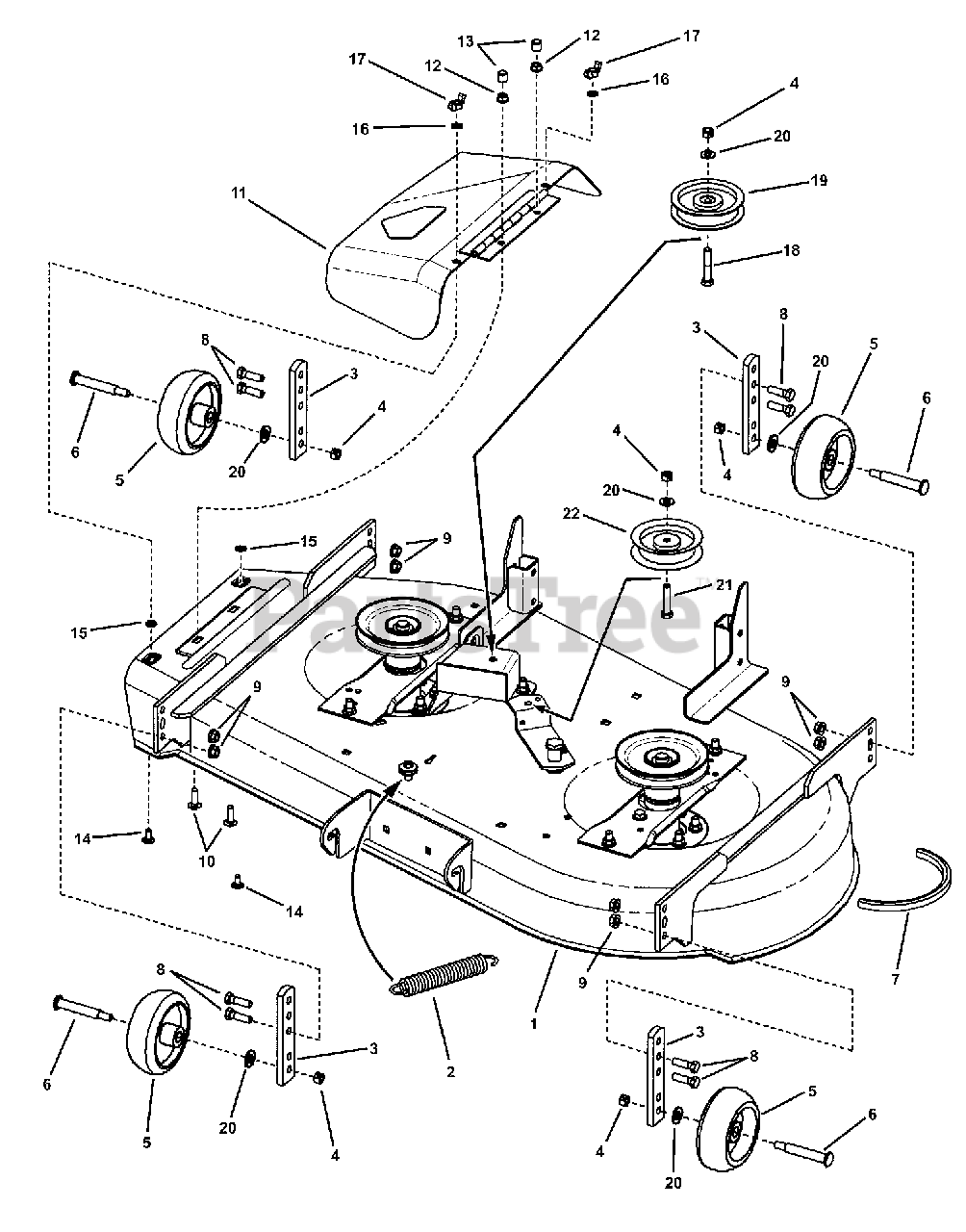

42" DECK GROUP (Final Assembly) Parts Diagram

  • Title

1

Snapper 7500021

SUB-ASSY, 42" Deck w/Spindles

Note: Ref. Sub-Assembly pages

$

$

Currently unavailable

2

Snapper 7035969

SPRING, Extension, 1.03 Dia. x 6.8 Long
(Superseded to 7035969SM)

$20.99

$

Usually ships in 2-12 days

0

3

Snapper 7035835

POST, Anti-Scalp
(Superseded to 7035835SM)

$20.99

$

In Stock, only 2 left!

0

4

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR 5 or B, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

5

Snapper 1714760

WHEEL, GAGE 3.92 X 1.87
(Superseded to 1714760SM)

Note: replaces 7029264

$6.49

$

In Stock, Qty 20+

0

6

Snapper 2108765

BOLT, SHOULDER (3/8-16 thread)
(Superseded to 2108765SM)

Note: replaces 7029265

$6.49

$

In Stock, Qty 20+

0

7

Snapper 7100419

42" BELT, A Section, 119.25 Effective Length
(Superseded to 7100419YP)

$84.99

$

In Stock, only 1 left!

0

8

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, GR 5 YZ
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7091303

BOLT, 5/16-18 x 1" Short Square Neck Carriage, GR 5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

11

Snapper 7500185

ASSEMBLY, 42" Chute & Decal

Note: Cardinal Red Chute 7400116 plus decal 7013010

$

$

Not available

12

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

13

Snapper 7023606

VINYL CAP
(Superseded to 7023606YP)

$3.99

$

In Stock, only 2 left!

0

14

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Square Neck Carriage, GR 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7011791

BOLT RETAINER, 5/16" Black
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7091537

WING LOCKNUT, 5/16-18- YZ
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

18

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5 YZ
(Superseded to 7091305SM)

Note: or 7091553 (1-3/4" long)

$4.49

$

In Stock, only 1 left!

0

19

Snapper 7018574

PULLEY, Flat Idler 4-1/8" Dia.
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

20

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, GR 5 YZ
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

22

Snapper 7075707

PULLEY, Flat Idler (4.00 O.D.)
(Superseded to 7075707YP)

$37.99

$

In Stock, only 1 left!

0
