RZT 185381 BVE (7800151) - Snapper 38" Zero-Turn Mower, 18.5hp SNAPPER FENDER GROUP Parts Diagram

38" Zero-Turn Mower, 18.5hp

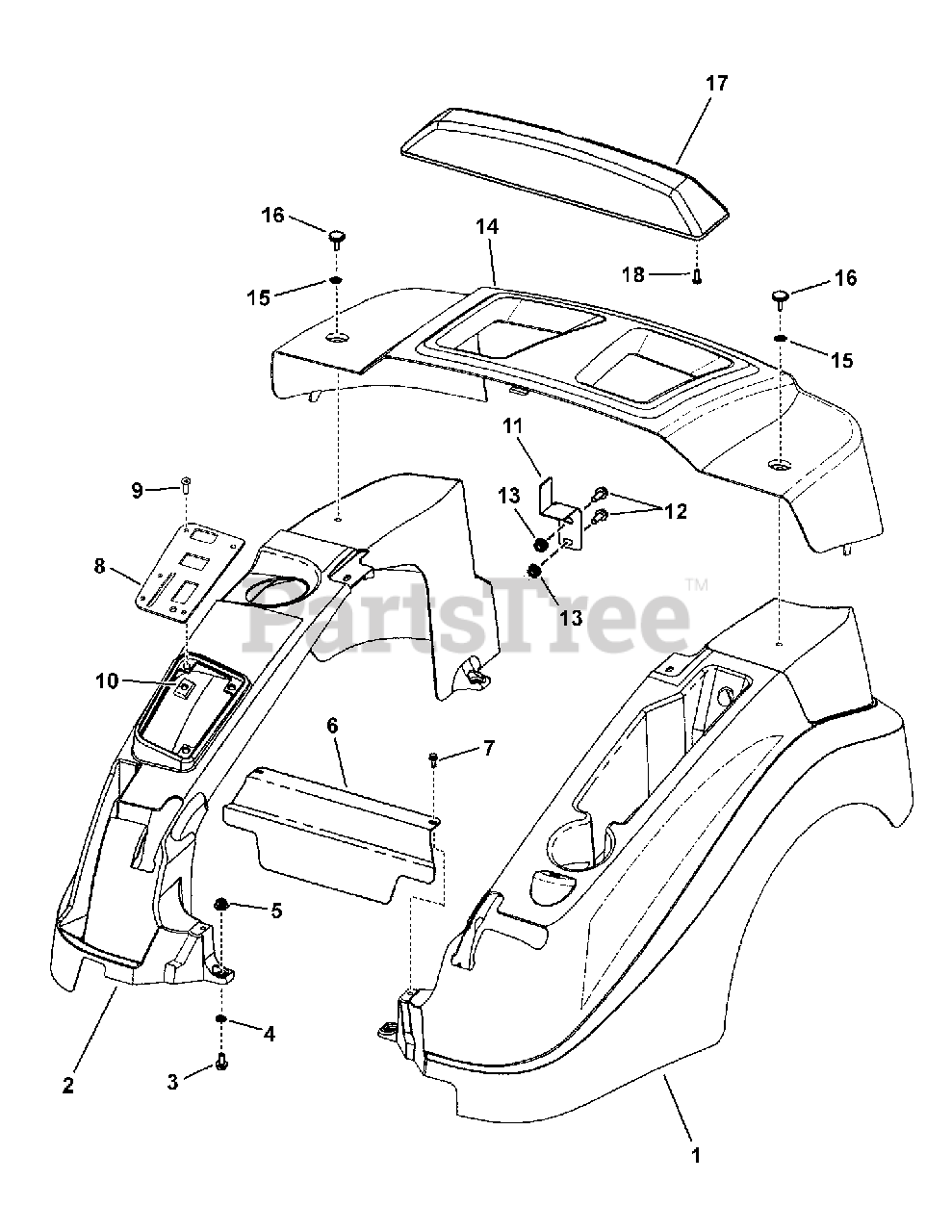

SNAPPER FENDER GROUP Parts Diagram

  • Title

1

Snapper 7100007

FENDER, LH RZT
(Superseded to 7100007SM)

$295.99

$

Usually ships in 2-12 days

0

2

Snapper 7100006

FENDER, RH RZT
(Superseded to 7100006SM)

$295.99

$

Usually ships in 2-12 days

0

3

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

4

Snapper 7011791

BOLT RETAINER, 5/16" Black
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7090951

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 17

0

6

Snapper 7300178

COVER, Front, Snapper
(Superseded to 7300178YP)

$71.99

$

Usually ships in 2-12 days

0

7

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap, YZ
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

8

Snapper 7300112

PANEL, Control
(Superseded to 7300112SM)

$16.99

$

In Stock, only 1 left!

0

9

Snapper 7090999

SCREW, 1/4-20 x 5/8" Pan Head Self-Tap (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7023295

U-NUT 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7300283

BRACKET, RH Fender Support (Cardinal Red)
(Superseded to 7300283YP)

$29.99

$

Usually ships in 2-12 days

0

12

Snapper 7091905

BOLT, 5/16-18 x 7/8" Hex Flange Lock, YZ
(Superseded to 7091905SM)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7100112

COVER, Engine, Double Vent

$141.99

$

Usually ships in 2-12 days

0

15

Snapper 7091890

WASHER, 1/4" Internal/External Tooth Lock
(Superseded to 7091890SM)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7100825

3-PRONG KNOB, 1/4-20 x 1/2"
(Superseded to 7100825YP)

Note: was 7023341

$7.99

$

Usually ships in 2-12 days

0

17

Snapper 7100012

GUARD, Rear Seat
(Superseded to 7100012SM)

$40.99

$

Usually ships in 2-12 days

0

18

Snapper 7900023

SCREW, 1/4-15 x 1-1/4" Hex Washer Self-Tap
(Superseded to 1751399YP)

$4.49

$

In Stock, only 3 left!

0
