RZT 185381 BVE (7800151) - Snapper 38" Zero-Turn Mower, 18.5hp ELECTRICAL GROUP Parts Diagram

38" Zero-Turn Mower, 18.5hp

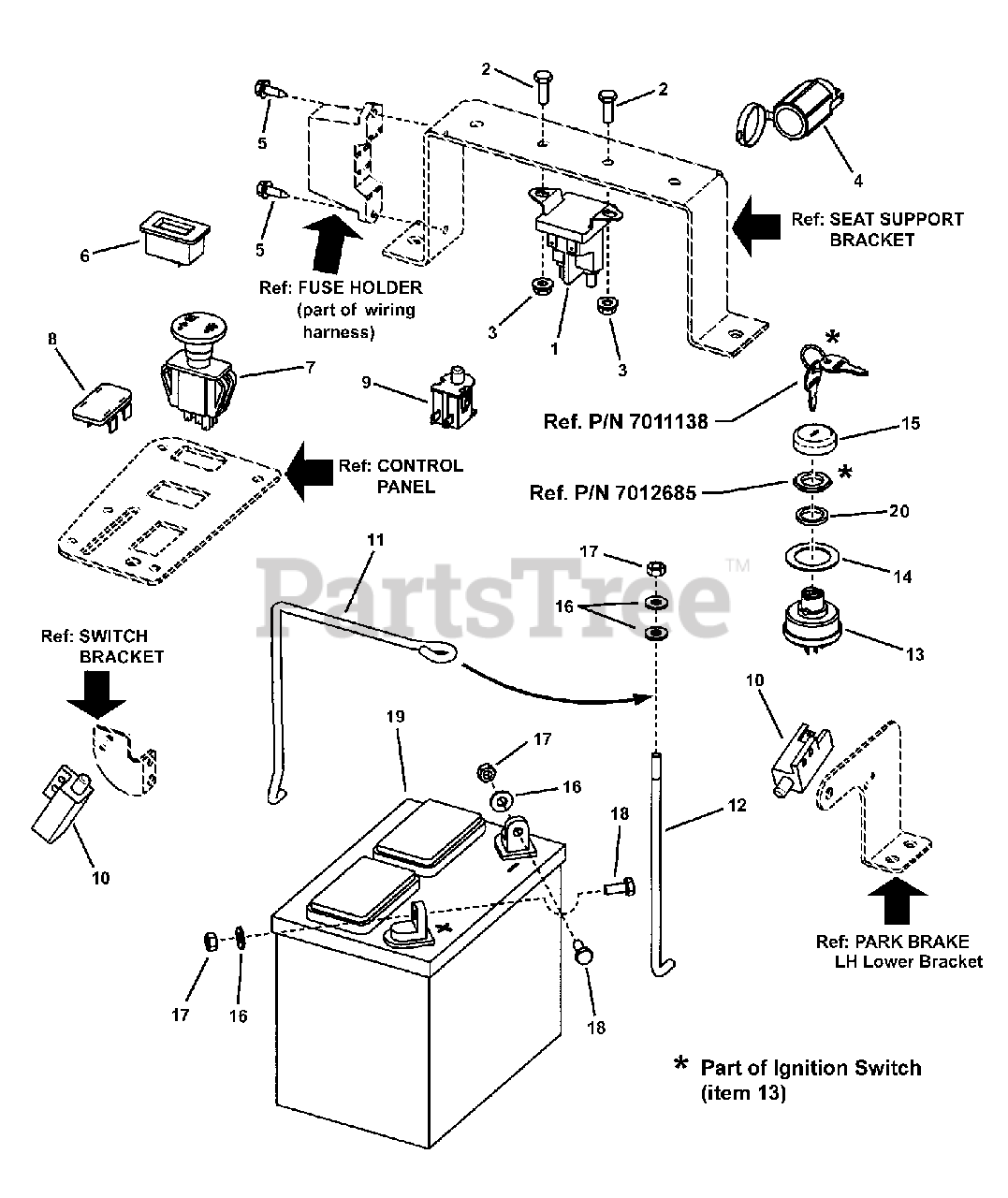

ELECTRICAL GROUP Parts Diagram

  • Title

1

Snapper 7075622

SOLENOID - Super Trombetta- 2 Terminal
(Superseded to 1755382YP)

$29.99

$

In Stock, Qty 16

0

2

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap, GR 5
(Superseded to 703820)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, GR 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

4

Snapper 7073090

12 VOLT DC POWER OUTLET
(Superseded to 7073090SM)

$25.99

$

Usually ships in 2-12 days

0

5

Snapper 7091686

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap
(Superseded to 703466)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7100326

HOUR METER, Inductive
(Superseded to 7100326SM)

$169.99

$

Usually ships in 2-12 days

0

7

Snapper 7075132

SWITCH, PTO, Yellow
(Superseded to 1722887SM)

$35.99

$

In Stock, Qty 20+

0

8

Snapper 1722611

PLUG, Plastic Black
(Superseded to 1722611SM)

$6.99

$

Usually ships in 2-12 days

0

9

Snapper 7023354

SWITCH, Seat (NC)
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 18

0

10

Snapper 7023355

SWITCH- DPDT (NC/NO) (Grey)
(Superseded to 7023355YP)

$18.99

$

In Stock, only 2 left!

0

11

Snapper 7100309

BATTERY BRACKET
(Superseded to 7100309SM)

$10.99

$

Usually ships in 2-12 days

0

12

Snapper 7100308

BATTERY HOLD DOWN
(Superseded to 7100308SM)

$8.49

$

In Stock, only 2 left!

0

13

Snapper 7026343

SWITCH, Ignition-Afterfire Solenoid
(Superseded to 7026343SM)

Note: includes set of keys

$40.99

$

In Stock, only 4 left!

0

14

Snapper 7023787

MACHINERY BUSHING
(Superseded to 7023787SM)

$3.49

$

In Stock, only 1 left!

0

15

Snapper 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7091294

WASHER, .28 x .63 x .06 Flat, GR 5
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, GR 5 or B
(Superseded to 703954)

$

$

Not available

18

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, GR 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 10

0

19

Snapper 7100449

BATTERY, 12 VOLT, 230 CCA
(Superseded to 1685215SM)

$

$

Not available

20

Snapper 7016132

SPACER, .65 x .88 x .10
(Superseded to 7016132SM)

$4.49

$

Usually ships in 2-12 days

0
