RZT 185381 BVE (7800151) - Snapper 38" Zero-Turn Mower, 18.5hp DECK LIFT GROUP (38/42) Parts Diagram

38" Zero-Turn Mower, 18.5hp

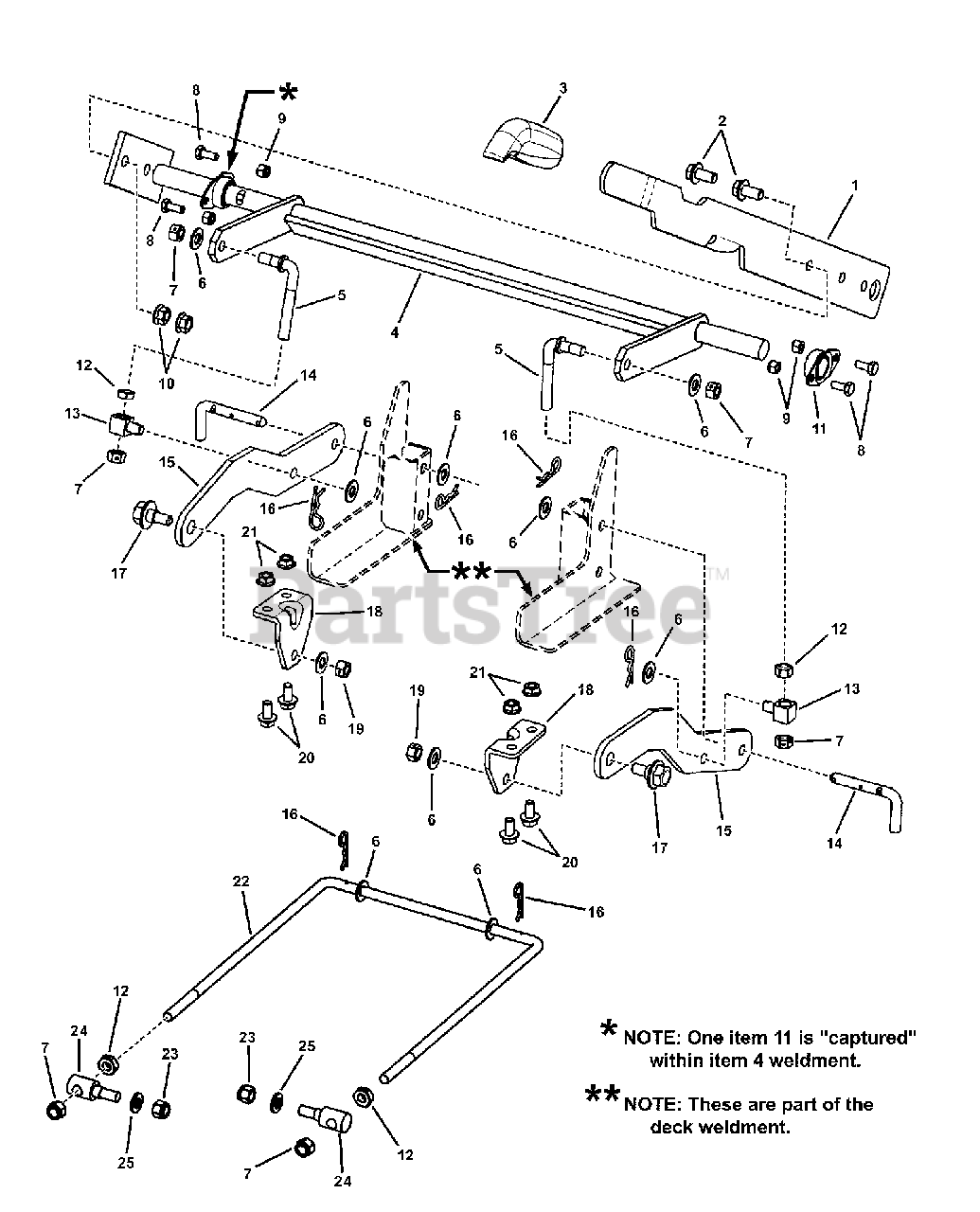

DECK LIFT GROUP (38/42) Parts Diagram

  • Title

1

Snapper 7300037

HANDLE, Deck Lift
(Superseded to 7300037SM)

$25.99

$

Usually ships in 2-12 days

0

2

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock, GR 5, YZ
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

3

Snapper 1722302

HANDLE GRIP, Black Flexible (Simplicity)
(Superseded to 1722302SM)

$8.49

$

In Stock, Qty 10

0

4

Snapper 7400011

WELDMENT, Deck Lift, 38/42
(Superseded to 7400011BMYP)

$193.99

$

In Stock, only 1 left!

0

5

Snapper 7100210

LINK, Leveling, 3/8-16 thread (2)
(Superseded to 7100210SM)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR 5 or B, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

8

Snapper 7027172

SCREW, 1/4-20 x 5/8" Hex Head Cap. GR 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

9

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 7026196

FLANGE BEARING, 3/4" I.D.
(Superseded to 7026196SM)

Note: powdered metal

$7.49

$

In Stock, only 2 left!

0

12

Snapper 7091658

JAM NUT, 3/8-16, YZ
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

13

Snapper 7028037

SWIVEL, Inline Brake Arm
(Superseded to 7028037SM)

$75.99

$

In Stock, only 1 left!

0

14

Snapper 7100125

PIN, Quick Hitch
(Superseded to 7100125SM)

$5.49

$

Usually ships in 2-12 days

0

15

Snapper 7300024

BAR, Rear Lift, 38/42
(Superseded to 7300024AYP)

$19.99

$

Usually ships in 2-12 days

0

16

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7014981

SHOULDER BOLT, 3/8-24, GR 8
(Superseded to 7014981SM)

Note: .285" long shoulder

$14.99

$

In Stock, Qty 8

0

18

Snapper 7300028

BRACKET, Deck Hanger
(Superseded to 7300028BMYP)

$14.99

$

Usually ships in 2-12 days

0

19

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

20

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

21

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Snapper 7200019

ROD, Deck Hanger Front 38/42
(Superseded to 7200019SM)

$38.99

$

In Stock, only 1 left!

0

23

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7200028

SWIVEL, 3/8-16 Inline
(Superseded to 7200028SM)

$73.99

$

In Stock, only 2 left!

0

25

Snapper 7032030

WASHER, 13/32 x 1-1/4" Flat
(Superseded to 7032030SM)

$4.49

$

In Stock, only 1 left!

0
