RZT 185381 BVE (7800151) - Snapper 38" Zero-Turn Mower, 18.5hp 38" DECK SPINDLE Parts Diagram

38" Zero-Turn Mower, 18.5hp

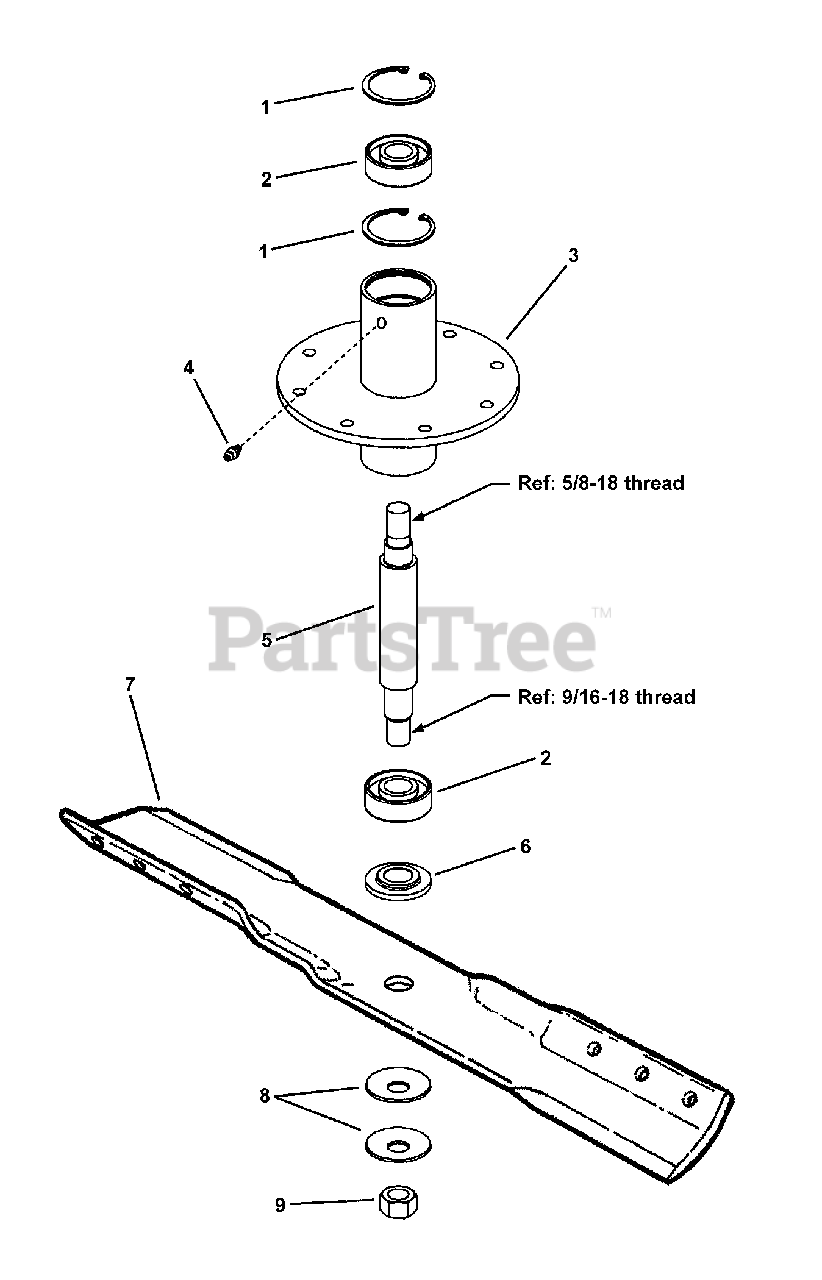

38" DECK SPINDLE Parts Diagram

  • Title
1

Snapper 7012491

* RING, 1-3/4" External Retaining Ring
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 7013313

* BALL BEARING, 3/4" I.D.
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

3

Snapper 7059378

* WELDMENT, 38 Spindle Housing
(Superseded to 7059378SM)

$102.99

$

Usually ships in 2-12 days

0

4

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7072537

* SHAFT, Spindle (7.155" long)
(Superseded to 7072537SM)

$43.99

$

In Stock, Qty 20+

0

6

Snapper 7072109

* WASHER, Spindle Blade
(Superseded to 7072109SM)

$5.99

$

In Stock, only 1 left!

0

7

Snapper 7042998

* BLADE, 19.64 (38" Deck)
(Superseded to 7042998BZYP)

$27.99

$

In Stock, Qty 20+

0

8

Snapper 7024467

* WASHER, Bellville 9/16 x 1-3/4"
(Superseded to 7024467SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7091633

* NUT, 9/16-18 Hex, GR B
(Superseded to 7091633SM)

$4.99

$

In Stock, Qty 20+

0
