RZT 185381 BVE (7800151) - Snapper 38" Zero-Turn Mower, 18.5hp 38" DECK GROUP (Final Assembly) Parts Diagram

38" Zero-Turn Mower, 18.5hp

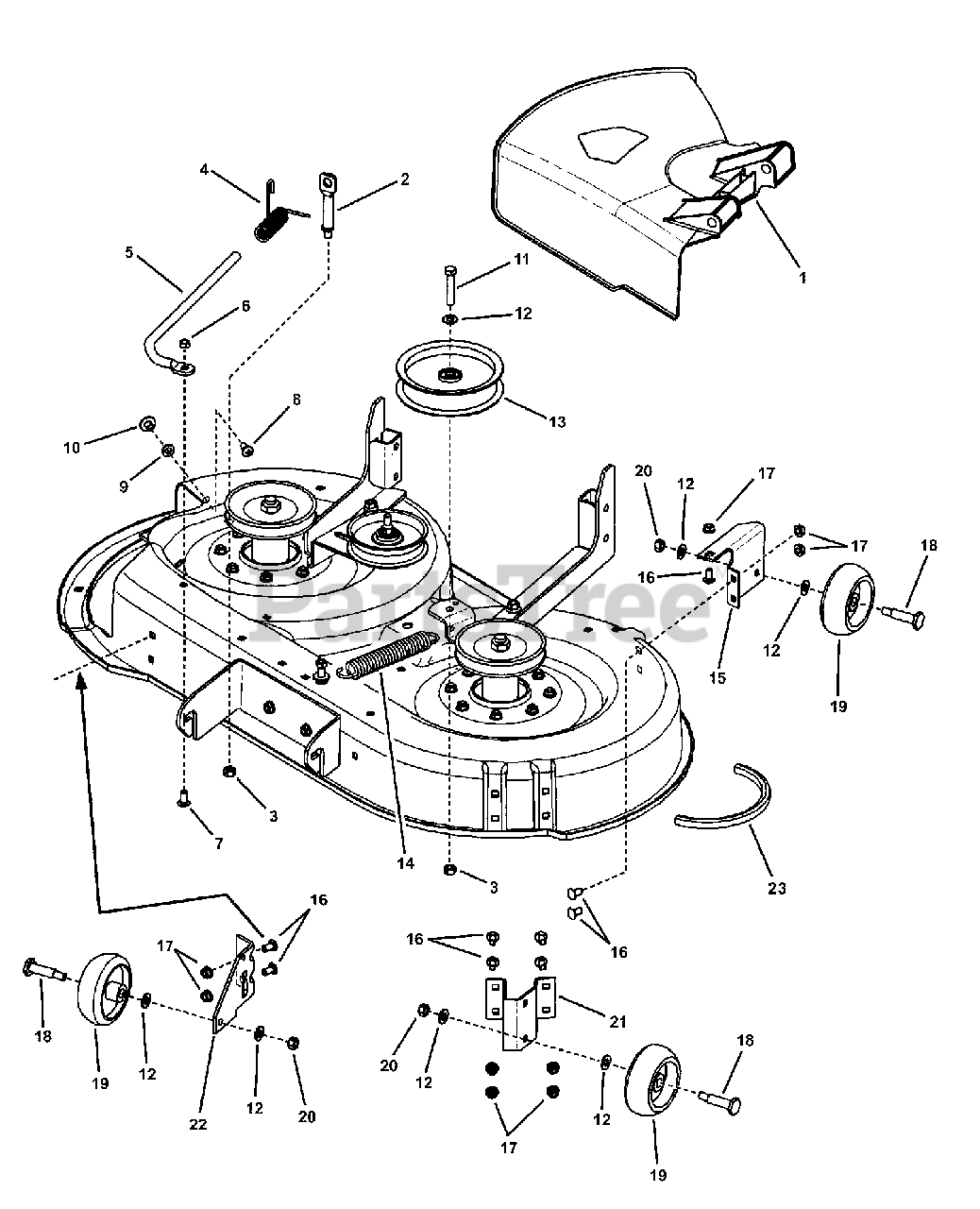

38" DECK GROUP (Final Assembly) Parts Diagram

  • Title

1

Snapper 7029425

DISCHARGE CHUTE, 38" Deck
(Superseded to 7104733YP)

$87.99

$

In Stock, Qty 19

0

2

Snapper 7035503

ROD, Mounting, Side Discharge (3/8-16 thread)
(Superseded to 7035503SM)

$14.99

$

Usually ships in 2-12 days

0

3

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR 5 or B, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

4

Snapper 7035813

SPRING, Torsion-Side Discharge-38 Deck
(Superseded to 7035813SM)

$24.99

$

In Stock, only 1 left!

0

5

Snapper 7035502

ROD, Pivot, Side Discharge, 38 Deck
(Superseded to 7035502SM)

$32.99

$

Usually ships in 2-12 days

0

6

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR 5 or B, YZ
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

7

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

8

Snapper 7091833

SCREW, 5/16-18 x 5/8" Cross Recessed Pan Head
(Superseded to 7091833SM)

$4.49

$

In Stock, only 1 left!

0

9

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

10

Snapper 7036543

TEENUT, 5/16-18 Thread
(Superseded to 7036543SM)

$2.99

$

Usually ships in 2-12 days

0

11

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5, YZ
(Superseded to 7091305SM)

$4.49

$

In Stock, only 1 left!

0

12

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7034422

PULLEY, Flat Idler, 5" Dia.
(Superseded to 7034422SM)

Note: replaces 7072319 (PULLEY, Flat Idler, 3-1/4" Dia.)

$38.99

$

In Stock, Qty 20+

0

14

Snapper 7035969

SPRING, Extension, 1.03 Dia. x 6.8 Long
(Superseded to 7035969SM)

$20.99

$

Usually ships in 2-12 days

0

15

Snapper 7033891

GAGE WHEEL BRACKET, LH Rear
(Superseded to 7033891YP)

$21.99

$

Usually ships in 2-12 days

0

16

Snapper 7091026

BOLT, 5/16-18 x 3/4" Short Square Neck Carriage, GR 5
(Superseded to 7900015YP)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Snapper 2108765

SHOULDER BOLT, 3/8-16 x 5/8" GR 5 YZ
(Superseded to 2108765SM)

Note: replaces 7091526 (Shoulder Bolt, 3/8-24 thread)

$6.49

$

In Stock, Qty 20+

0

19

Snapper 1714760

GAGE WHEEL 4 x 1-7/8" Offset
(Superseded to 1714760SM)

Note: replaces 7026122 (Wheel, 1-1/2" offset)

$6.49

$

In Stock, Qty 20+

0

20

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: replaces 7090289 (Hex Center Lock Nut, 3/8-24)

$4.99

$

In Stock, only 2 left!

0

21

Snapper 7300269

BRACKET, Front Gage Wheel (Cardinal Red)

Note: was 7033756 (raw part)

$

$

Not available

22

Snapper 7300243

BRACKET, Right Front Gage Wheel (Cardinal Red)
(Superseded to 7035494BMYP)

Note: was 7035494 (raw part)

$41.99

$

Usually ships in 2-12 days

0

23

Snapper 7100691

BELT, A Section, Effective Length 114"
(Superseded to 7100691YP)

Note: replaces 1718017

$71.99

$

In Stock, only 3 left!
