RZT 185380 BVE (7800009) - Snapper 38" Zero-Turn Mower, 18.5hp ENGINE GROUP (18.5 HP Briggs) Parts Diagram

38" Zero-Turn Mower, 18.5hp

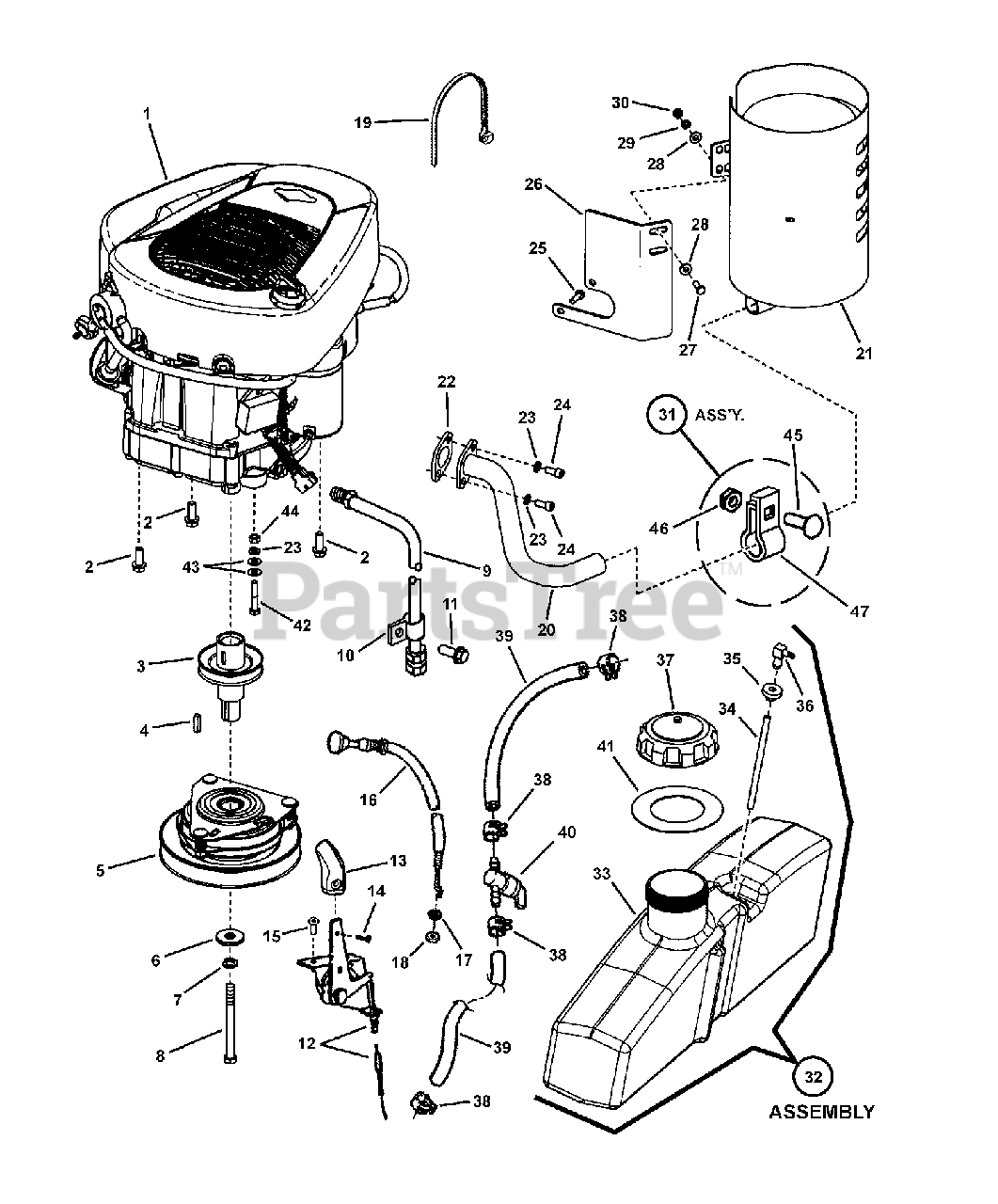

ENGINE GROUP (18.5 HP Briggs) Parts Diagram

  • Title

1

Snapper 1730219

* ENGINE, 18.5 HP Briggs, Intek

Note: Model 31P777 0121 B1

$

$

Currently unavailable

2

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

3

Snapper 7043343

ASSEMBLY, Engine Pulley
(Superseded to 7043343SM)

$114.99

$

In Stock, only 1 left!

0

4

Snapper 7013250

KEY, 1/4 Square x 1"
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

5

Snapper 1717664

CLUTCH, Ogura JD-11
(Superseded to 1757359)

$290.99

$

In Stock, only 1 left!

0

6

Snapper 7029138

WASHER, .468 ID x 1.50 OD x .188 Flat
(Superseded to 704053)

$9.99

$

In Stock, only 1 left!

0

7

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7092130

SCREW, 7/16-20 x 4-1/2" Hex Head Cap, GR 5
(Superseded to 7092130SM)

$

$

Not available

9

Snapper 1726498

HOSE, Oil Drain
(Superseded to 1726498SM)

$26.99

$

Usually ships in 2-12 days

0

10

Snapper 7900020

HARNESS CLIP, 5/8"
(Superseded to 7900020SM)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7091867

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap, GR 2
(Superseded to 7091867YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7028564

CABLE, 26.25" Throttle Control
(Superseded to 7028564SM)

$30.99

$

Usually ships in 2-12 days

0

13

Snapper 7100529

KNOB, Throttle, Red RZT
(Superseded to 1725337SM)

$12.99

$

In Stock, only 1 left!

0

14

Snapper 7091195

SCREW, #10-16 x 3/4" Pan Head Self-Tap
(Superseded to 7091195SM)

$4.49

$

In Stock, only 1 left!

0

15

Snapper 7090999

SCREW, 1/4-20 x 5/8" Pan Head Self-Tap (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7100797

CABLE, 30" Choke Control
(Superseded to 7100797SM)

$34.99

$

Usually ships in 2-12 days

0

17

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7090155

NUT, 3/8-24 Hex, GR B
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

19

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

20

Snapper 7100101

MANIFOLD, 18 HP B&S Intek
(Superseded to 7100101SM)

$48.99

$

In Stock, only 1 left!

0

21

Snapper 7100160

MUFFLER, RZT
(Superseded to 7600051SM)

$295.99

$

Usually ships in 2-12 days

0

22

Snapper 7015352

GASKET, Exhaust
(Superseded to 7015352SM)

$5.49

$

In Stock, Qty 8

0

23

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7091738

SET SCREW, 5/16-18 x 3/4" Socket Head, GR 8
(Superseded to 7091738SM)

$4.99

$

In Stock, Qty 14

0

25

Snapper 7090290

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap
(Superseded to 703466)

$3.99

$

In Stock, Qty 11

0

26

Snapper 7300237

BRACKET, Muffler 18HP Briggs
(Superseded to 7300237SM)

$42.99

$

Usually ships in 2-12 days

0

27

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

28

Snapper 7091294

WASHER, .28 x .63 x .06 Flat, GR 5
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7090052

WASHER, 1/4" Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

30

Snapper 7091576

NUT, 1/4-20 Hex, GR 5 or B
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

31

Snapper 7078234

ASSEMBLY, Clamp
(Superseded to 691956)

Note: B&S P/N's 223434, 93877 & 93203

$15.99

$

In Stock, only 3 left!

0

32

Snapper 7500077

ASSEMBLY, Fuel Tank, RZT
(Superseded to 7500077SM)

Note: includes items 33 thru 37

$198.99

$

Usually ships in 2-12 days

0

33

Snapper 7100037

FUEL TANK, 3 Gal.
(Superseded to 7500077SM)

$198.99

$

Usually ships in 2-12 days

0

34

Snapper 7100283

DIP TUBE
(Superseded to 7100283SM)

$10.99

$

Usually ships in 2-12 days

0

35

Snapper 7012337

GROMMET
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

36

Snapper 7075288

ELBOW, 90 Degree
(Superseded to 7075288SM)

$22.99

$

Usually ships in 2-12 days

0

37

Snapper 1715917

CAP, Fuel, 3-1/2"
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

38

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: was 701222

$3.49

$

In Stock, Qty 20+

0

39

Snapper 7073240

HOSE, Fuel, 5"
(Superseded to 7073240SM)

$24.99

$

Usually ships in 2-12 days

0

40

Snapper 7016325

VALVE, Fuel Shut-Off
(Superseded to 7016325SM)

$19.99

$

In Stock, Qty 12

0

41

Snapper 7100312

SEAL, Tank
(Superseded to 7100312SM)

$3.99

$

Usually ships in 2-12 days

0

42

Snapper 7091908

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5, YZ
(Superseded to 7091908YP)

$4.99

$

Usually ships in 2-12 days

0

43

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

44

Snapper 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

45

Snapper 7091928

BOLT, 5/16-18 x 1-1/4" Square Neck Carriage
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

46

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

47

Snapper 7100666

CLAMP, Muffler
(Superseded to 7100666SM)

Note: B&S part # 222825

$18.99

$

In Stock, only 3 left!

0
