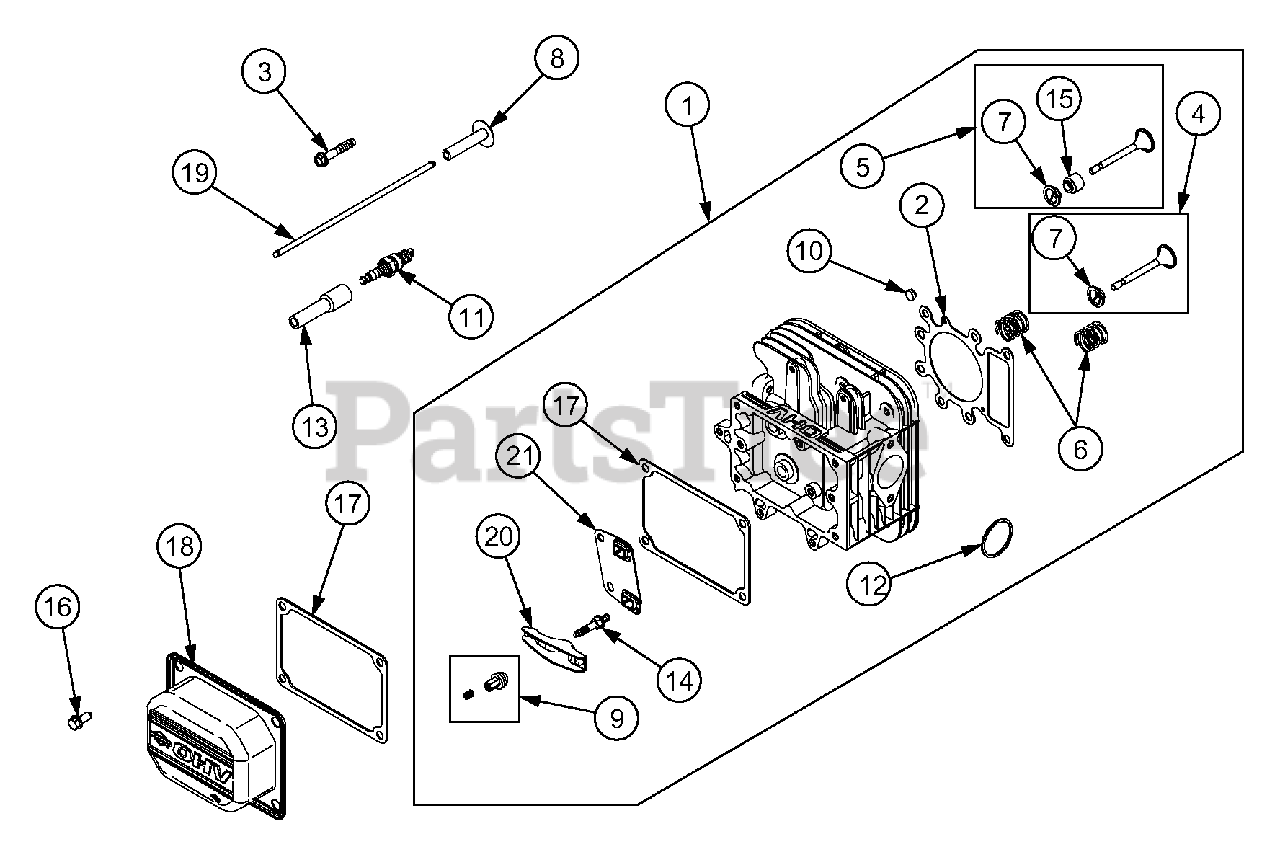

RZT-17 (17AA5A4G710) - Cub Cadet 42" RZT Zero-Turn Mower Cylinder Head Parts Diagram

42" RZT Zero-Turn Mower

Cylinder Head Parts Diagram

  • Title

1

Cub Cadet BS-698147

Head, Cylinder
(Superseded to BS-796026)

$226.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-699168

Gasket, Cylinder Head
(Superseded to BS-794114)

$20.99

$

In Stock, Qty 20+

0

3

Cub Cadet BS-690360

Screw, Cylinder Head
(Superseded to BS-84001963)

$3.49

$

Usually ships in 3-6 days

0

4

Cub Cadet BS-695760

Valve, Exhaust
(Superseded to BS-792868)

$35.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-695761

Valve, Intake
(Superseded to BS-791935)

$27.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-691279

Spring, Valve

$5.99

$

In Stock, Qty 10

0

7

Cub Cadet BS-690964

Retainer, Valve
(Superseded to BS-499586)

$7.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-690564

Tappet, Valve

$9.99

$

In Stock, Qty 20+

0

9

Cub Cadet BS-691986

Adjuster, Rocker Arm

$11.99

$

In Stock, Qty 20+

0

10

Cub Cadet BS-691843

Cap, Valve

$8.49

$

In Stock, Qty 20+

0

11

Cub Cadet 759-3336

Spark Plug (RC12YC)
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

12

Cub Cadet BS-692138

O-Ring Seal (Intake Manifold)

$5.49

$

In Stock, Qty 18

0

13

Cub Cadet BS-691909

Boot, Spark Plug

$4.99

$

In Stock, Qty 5

0

14

Cub Cadet BS-691095

Stud, Rocker Arm

$7.99

$

In Stock, Qty 20+

0

15

Cub Cadet BS-690968

Seal, Valve

$10.99

$

In Stock, Qty 20+

0

16

Cub Cadet BS-691108

Screw (Rocker Cover)

$3.49

$

In Stock, Qty 20+

0

17

Cub Cadet BS-272475

Gasket, Rocker Cover
(Superseded to BS-272475S)

$6.49

$

In Stock, Qty 20+

0

18

Cub Cadet BS-692492

Cover, Rocker
(Superseded to BS-797421)

$35.99

$

In Stock, only 2 left!

0

19

Cub Cadet BS-692003

Rod, Push (Intake)

$7.99

$

In Stock, Qty 20+

0

Cub Cadet BS-692011

Rod, Push (Exhaust)

$9.49

$

In Stock, Qty 20+

0

20

Cub Cadet BS-691751

Arm, Rocker

$9.49

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-690822

Guide, Push Rod

$9.49

$

In Stock, only 2 left!

0
