RZS730GKA603A3 - Exmark 60" Radius S-Series Zero-Turn Mower, Kawasaki FX730V (SN: 413950474 & Above) (Rev A) (2023) Deck Assembly Parts Diagram

60" Radius S-Series Zero-Turn Mower, Kawasaki FX730V

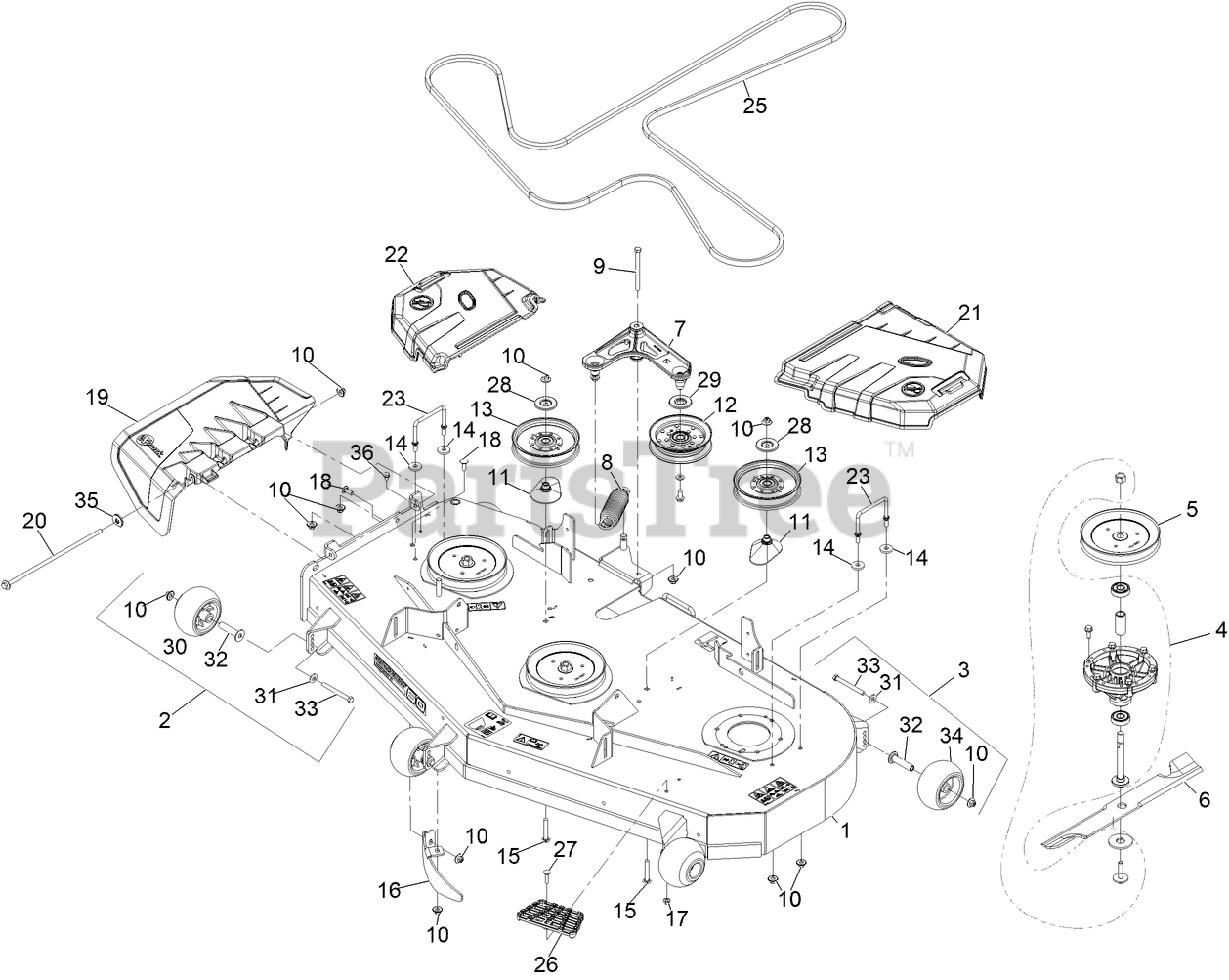

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-3581

ASM-DECK W/DECALS 603

$2682.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

3

Exmark 126-7840

KIT-ANTISCALP ROLLER

$49.99

$

Usually ships in 3-6 days

0

4

Exmark 126-4630

ASM, CUTTER HOUSING COMPLETE

$160.99

$

In Stock, only 2 left!

0

5

Exmark 126-5007

SHEAVE,BLADE DRIVE 7.25

$77.99

$

In Stock, Qty 5

0

6

Exmark 103-6388

USE 103-6388-S
(Superseded to 103-6388-S)

Note: Optional Equipment

$37.99

$

In Stock, Qty 20+

0

6

Exmark 103-6383

USE 103-6383-S
(Superseded to 103-6383-S)

Note: Optional Equipment

$34.99

$

In Stock, Qty 20+

0

6

Exmark 103-6393

USE 103-6393-S
(Superseded to 103-6393-S)

Note: Optional Equipment | Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

6

Exmark 103-6403

USE 103-6403-S
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

6

Exmark 116-5174

Blade-Extreme 2, 20.50"

Note: Optional Equipment

$

$

Currently unavailable

7

Exmark 142-6530

ASM-IDLER ARM W/BEARINGS

$89.99

$

In Stock, only 1 left!

0

8

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

9

Exmark 323-38

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

10

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

12

Exmark 126-9196

IDLER-PULLEY, FLAT

$60.99

$

In Stock, Qty 20+

0

13

Exmark 126-9189

IDLER-PULLEY, FLAT 6.00X1.00

$61.99

$

In Stock, Qty 8

0

14

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

15

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 14

0

16

Exmark 126-4708-01

DOGLEG-603

$59.99

$

Usually ships in 3-6 days

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

19

Exmark 142-7025

Chute-Deck Discharge

$74.99

$

Usually ships in 3-6 days

0

20

Exmark 142-8544

Pin, Chute

$8.49

$

Usually ships in 0 days

0

21

Exmark 142-7104

SHIELD, LT

$27.99

$

Usually ships in 3-6 days

0

22

Exmark 142-7105

SHIELD, RT

$27.99

$

Usually ships in 3-6 days

0

23

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

25

Exmark 126-6627

USE 126-6627-SL
(Superseded to 126-6627-SL)

$180.99

$

In Stock, only 2 left!

0

26

Exmark 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

27

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

28

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 2 left!

0

29

Exmark 126-9195

SHIELD-GUARD, DUST

$2.99

$

In Stock, only 3 left!

0

30

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

31

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

32

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 12

0

33

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 17

0

34

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

35

Exmark 146-0943

Retainer, Chute

$1.49

$

Usually ships in 0 days

0

36

Exmark 32104-82

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0
