RZE708GEM52300 - Exmark 52" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 413950474 & Above) (Rev A) (2023) Engine Assembly Parts Diagram

52" Radius E-Series Zero-Turn Mower, Exmark 708

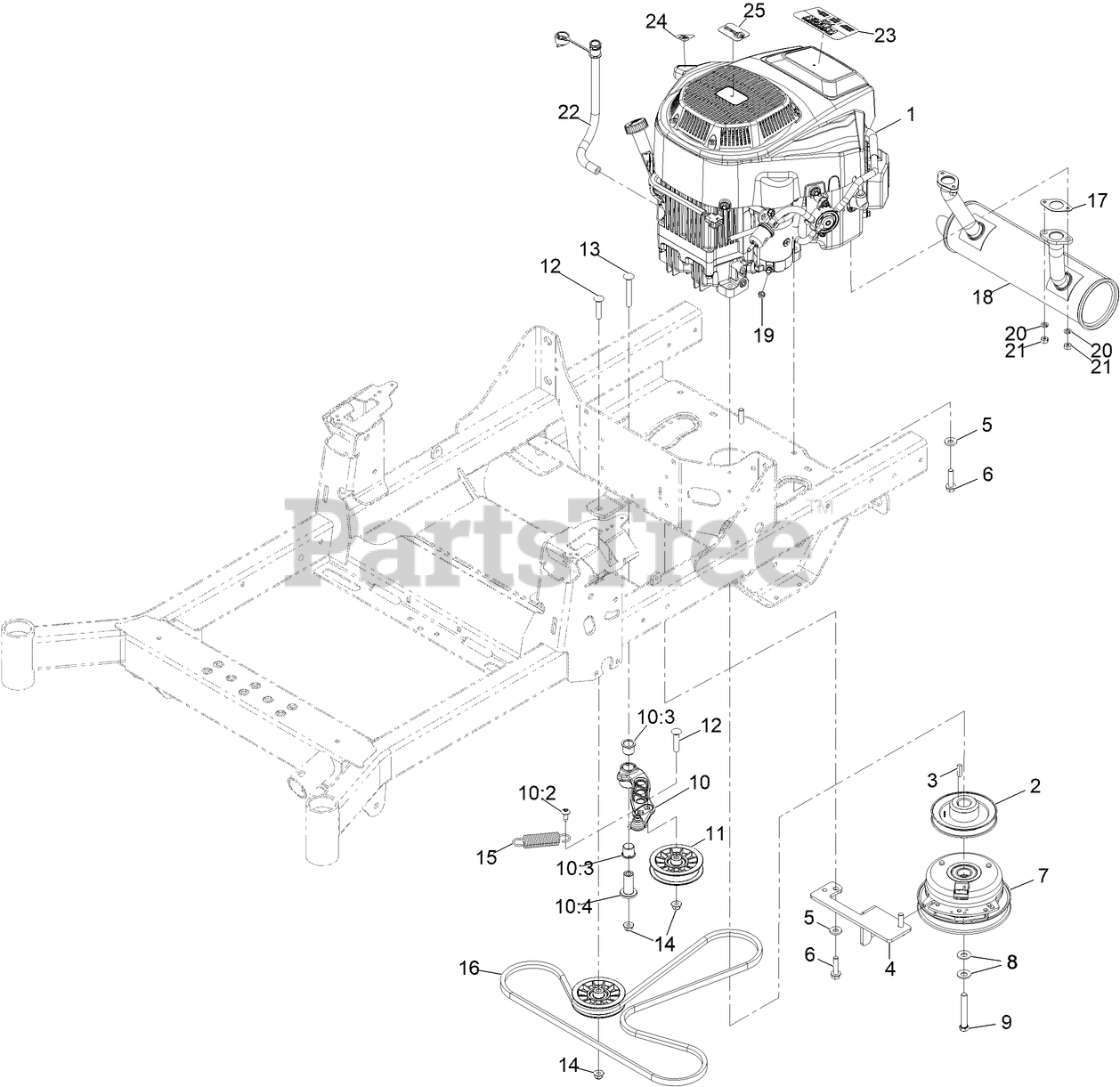

Engine Assembly Parts Diagram

  • Title

1

Exmark 136-7818

ENGINE-2P77F

$2823.99

$

Usually ships in 3-6 days

0

2

Exmark 142-8828

SHEAVE, ENGINE

$51.99

$

Usually ships in 3-6 days

0

3

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

4

Exmark 146-0187-03

Anchor-Clutch

$25.99

$

Usually ships in 0 days

0

5

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

6

Exmark 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

7

Exmark 126-4323

CLUTCH 1.00

$409.99

$

Usually ships in 3-6 days

0

8

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

9

Exmark 126-7198

SCREW-HH W/LOCTITE

$18.99

$

In Stock, only 1 left!

0

10

Exmark 142-6547

ASM, PUMP IDLER

$66.99

$

Usually ships in 3-6 days

0

10:2

Exmark 142-8477

SCREW, TAPTITE

$1.49

$

Usually ships in 3-6 days

0

10:3

Exmark 142-5935

BUSHING, IGUS

$2.49

$

Usually ships in 3-6 days

0

10:4

Exmark 142-6529

Spacer, Idler Pivot

$3.99

$

Usually ships in 0 days

0

11

Exmark 116-2456

PULLEY-FLAT IDLER

$23.99

$

In Stock, Qty 20+

0

12

Exmark 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

13

Exmark 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 7

0

14

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, Qty 20+

0

16

Exmark 126-5993

BELT-V
(Superseded to 126-5993-SL)

$50.99

$

In Stock, Qty 20+

0

17

Exmark 120-4317

GASKET-EXHAUST

$5.49

$

In Stock, Qty 20+

0

18

Exmark 142-9769

MUFFLER, LONCIN

$171.99

$

Usually ships in 3-6 days

0

19

Exmark 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

20

Exmark 127-9279

WASHER-LOCK, SPLIT

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 121-0199

NUT-HH

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 144-0976

OIL DRAIN SERVICE KIT

$21.99

$

Usually ships in 3-6 days

0

23

Exmark 142-2629

DECAL-ENGINE 708 V-TWIN EXMARK

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 131-1097

DECAL-DRAIN, OIL

$2.99

$

In Stock, Qty 15

0

25

Exmark 131-1078

DECAL

$3.49

$

In Stock, only 2 left!

0
