RZ 5426 (967003606) - Husqvarna 54" Zero-Turn Mower (2013-08) HYDRAULIC PUMP- MOTOR Parts Diagram

54" Zero-Turn Mower

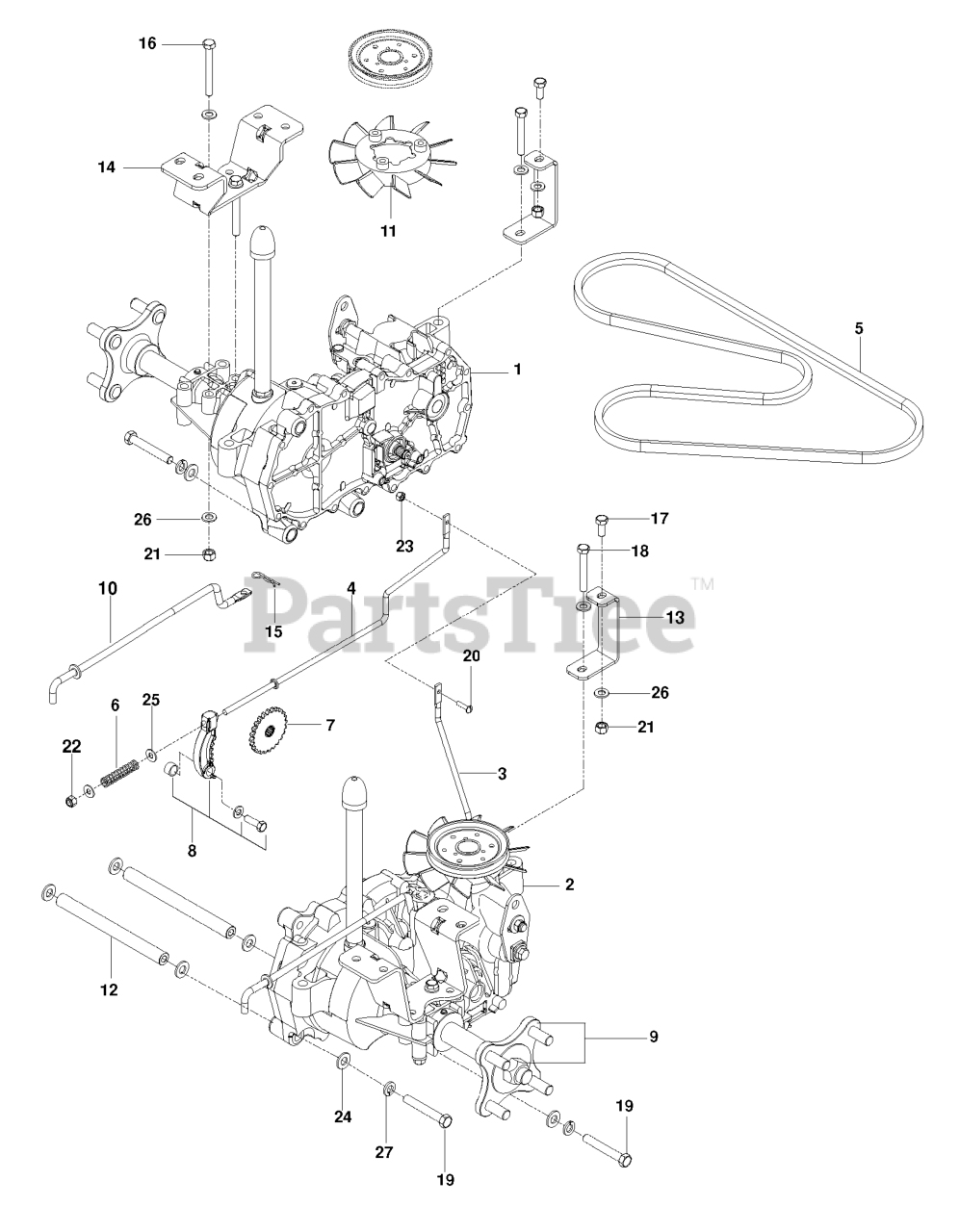

HYDRAULIC PUMP- MOTOR Parts Diagram

  • Title
1

Husqvarna 510375601

HG_EZT, LT

Note:

$1091.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510375602

HG_EZT, RT

Note:

$1091.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574030501

LINKAGE.BRAKE.LT

Note:

$

$

Not available

4

Husqvarna 574030502

LINKAGE, BRAKE RT

Note:

$

$

Not available

5

Husqvarna 539110411

BELT, HYDRO PUMP

Note:

$31.99

$

In Stock, Qty 7

0

6

Husqvarna 539110342

SPRING

Note:

$

$

Not available

7

Husqvarna 539120080

HG_DISC COG BRAKE 51635

Note:

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539120079

HG_KIT BRAKE ARM (EZT)

Note:

$37.99

$

In Stock, only 2 left!

0

9

Husqvarna 575507001

HG_KIT, HYDRO-GEAR HUB

Note:

$319.99

$

Usually ships in 3-10 days

0

10

Husqvarna 522941101

LINKAGE, BYPASS, EZT

Note:

$14.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539120785

HG_HYDRO FAN 51365

Note:

$37.99

$

In Stock, only 1 left!

0

12

Husqvarna 510184101

SPACER TUBE, EZT
(Superseded to 510184104)

Note:

$

$

Not available

13

Husqvarna 580806502

SUPPORT.FRONT.TRANS.PNTX431

Note:

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 580806602

BRACKET.EZT.MOUNT.REAR.PNTX431

Note:

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539976988

HAIRPIN #2

Note:

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 874780544

BOLT HEX

Note:

$

$

Not available

17

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

Note:

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

Note:

$

$

Not available

19

Husqvarna 874780640

SCREW.HEX HEAD.38-16 X 2.5

Note:

$4.99

$

In Stock, only 2 left!

0

20

Husqvarna 539108535

SCR #10-24 X 3/4

Note:

$4.99

$

In Stock, Qty 6

0

21

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

Note:

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

Note:

$2.49

$

In Stock, Qty 20+

0

23

Husqvarna 539976977

NUT 10-24 NYLOC

Note:

$

$

Not available

24

Husqvarna 819131316

WASHER
(Superseded to 596565301)

Note:

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 819091016

WASHER

Note:

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 819111116

WASHER
(Superseded to 596204101)

Note:

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

Note:

$4.99

$

In Stock, Qty 16

0
