RZ 5426 (967003606) - Husqvarna 54" Zero-Turn Mower (2013-08) FRAME Parts Diagram

54" Zero-Turn Mower

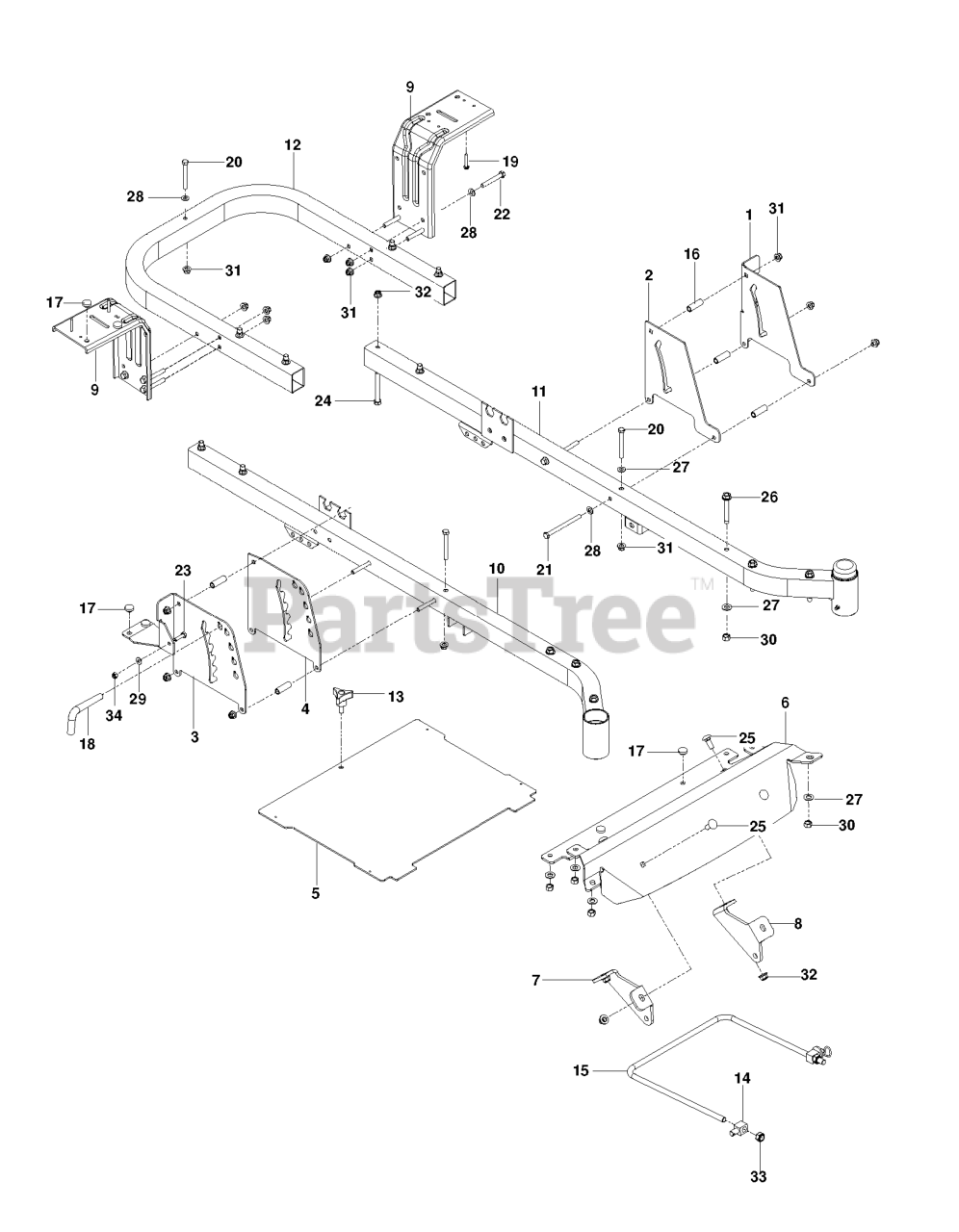

FRAME Parts Diagram

  • Title

1

Husqvarna 510261802

PLATE, OUTER BRAKE, BLACK

Note:

$60.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510206703

PLATE, BRAKE LATCH, BLACK

Note:

$48.99

$

Usually ships in 3-10 days

0

3

Husqvarna 580528002

PLATE.DECK HEIGHT.PNT.431.RZ

Note:

$13.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510240502

PLATE, DECK HEIGHT, BLACK

Note:

$21.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522842902

PLATE, FOOT W/DECALS RZ

Note:

$157.99

$

In Stock, only 1 left!

0

6

Husqvarna 522719504

FOOT.REST.MED.ORANGE

Note:

$102.99

$

Usually ships in 3-10 days

0

7

Husqvarna 522443302

MOUNT, STRUT, RT, BLK

Note:

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 522443304

MOUNT, STRUT, LT, BLK

Note:

$398.99

$

Usually ships in 3-10 days

0

9

Husqvarna 510225902

SUPPORT, FENDER, BLACK

Note:

$78.99

$

Usually ships in 3-10 days

0

10

Husqvarna 510177503

FRAME, RT, ORANGE
(Superseded to 589283402)

Note:

$91.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510177403

FRAME, LT, ORANGE
(Superseded to 589283302)

Note:

$91.99

$

Usually ships in 3-10 days

0

12

Husqvarna 510177603

FRAME TUBE, REAR ORG

Note:

$113.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

Note:

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 539114789

SWIVEL

Note:

$17.99

$

In Stock, only 2 left!

0

15

Husqvarna 521938101

LINK, FRONT SUSP.

Note:

$

$

Not available

16

Husqvarna 580486101

SPACER.334.ID.5.OD.1.5.L

Note:

$

$

Not available

17

Husqvarna 539102587

GROMMET, BUMPER

Note:

$5.99

$

In Stock, Qty 15

0

18

Husqvarna 510016503

PIN.DECK.HEIGHT.RZ

Note:

$

$

Not available

19

Husqvarna 539110674

SCR #10-12X1-1/2HEX WASH HD ZD

Note:

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 874780544

BOLT HEX

Note:

$

$

Not available

21

Husqvarna 874780564

BOLT

Note:

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

Note:

$

$

Not available

23

Husqvarna 874780416

BOLT

Note:

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5

Note:

$

$

Not available

25

Husqvarna 872141608

Note:

$

$

Currently unavailable

26

Husqvarna 817490642

Note:

$

$

Currently unavailable

27

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 539990517)

Note:

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 819111116

WASHER
(Superseded to 596204101)

Note:

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 819091016

WASHER

Note:

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

Note:

$3.99

$

In Stock, Qty 15

0

31

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note:

$6.99

$

In Stock, Qty 20+

0

32

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

Note:

$

$

Not available

33

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD

Note:

$

$

Not available

34

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

Note:

$2.49

$

In Stock, Qty 20+

0
