RZ 5426 (967003602) - Husqvarna 54" Zero-Turn Mower (2012-01) STEERING Parts Diagram

54" Zero-Turn Mower

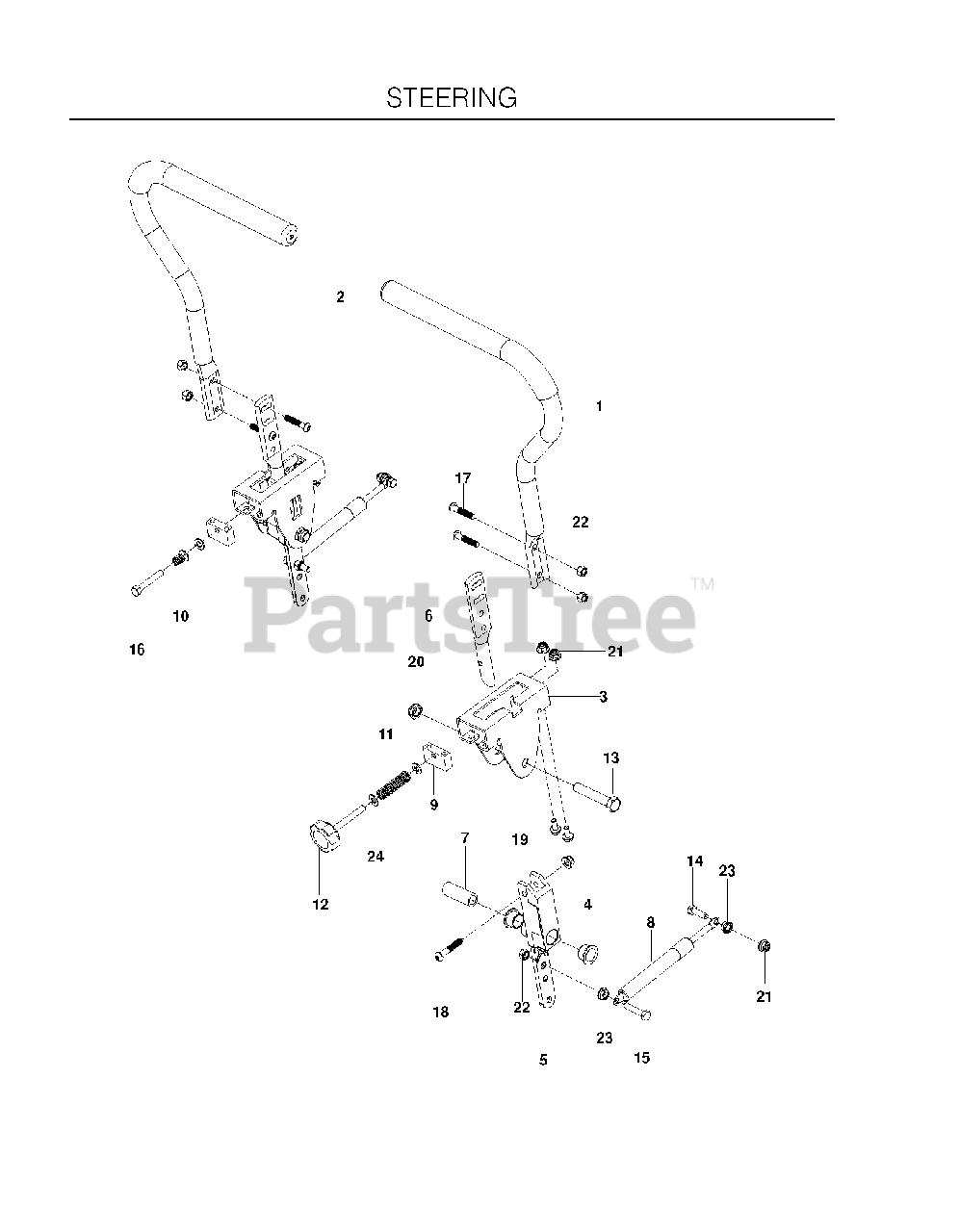

STEERING Parts Diagram

  • Title

1

Husqvarna 579036901

LEVER.STEERING.ASM.(W/GRIP)

$

$

Not available

2

Husqvarna 525392901

GRIP, DRIVE LEVER

$

$

Not available

3

Husqvarna 577251701

BRACKET, CONTROL
(Superseded to 586737202)

$26.99

$

In Stock, only 1 left!

0

4

Husqvarna 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 6

0

5

Husqvarna 576140301

LEVER CONTROL PIVOT

$24.99

$

In Stock, only 3 left!

0

6

Husqvarna 577420001

LEVER.HANDLE MOUNT

$

$

Not available

7

Husqvarna 577252401

SPACER, PIVOT CONTROL
(Superseded to 584927201)

$5.99

$

In Stock, only 4 left!

0

8

Husqvarna 539102720

DAMPENER

$66.99

$

In Stock, only 3 left!

0

9

Husqvarna 577251801

BLOCK.TRACKING

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

11

Husqvarna 576850301

SPRING COMPRESSION 2.0

$6.49

$

In Stock, Qty 9

0

12

Husqvarna 539131799

KNOB

$

$

Not available

13

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

14

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

16

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

17

Husqvarna 578296401

SCREW 5/16-18 X 1 BTN-HD

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

20

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, only 3 left!

0

21

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0
