RZ 5424 (966659301-03) - Husqvarna 54" Zero-Turn Mower (2013-10) WHEELS & TIRES Parts Diagram

54" Zero-Turn Mower

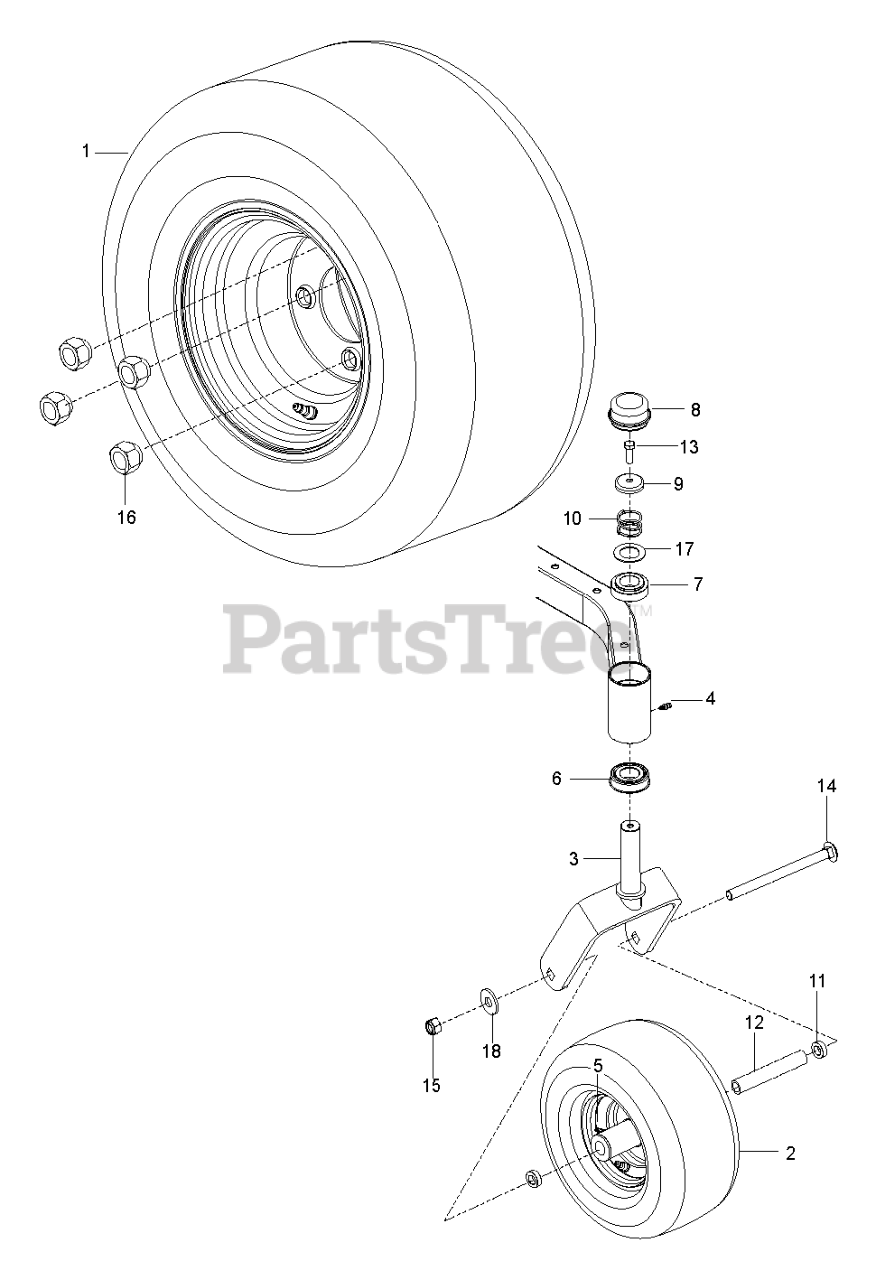

WHEELS & TIRES Parts Diagram

  • Title

17

Husqvarna 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

7

Husqvarna 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874950516

5/16-18X1 HHB G5W/NY

$

$

Not available

8

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 721408104

RHSNB 1/2-13 X 6.50 GR5 ZD

$

$

Not available

12

Husqvarna 576588901

SPACER, PIVOT

$14.99

$

In Stock, only 4 left!

0

3

Husqvarna 510186505

YOKE.CASTER.ORANGE
(Superseded to 510186501)

$109.99

$

Usually ships in 3-10 days

0

1

Husqvarna 590486601

WHEEL CARLSTAR 18X9.5-8" SILVE

$182.99

$

Usually ships in 3-10 days

0

18

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

$

$

Not available

16

Husqvarna 587653902

NUT.1/2-20.UNF-2B.GR.8.YL

$

$

Not available

10

Husqvarna 539115747

SPRING, CASTER

$

$

Not available

4

Husqvarna 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 4 left!

0

9

Husqvarna 539115749

CASTER.PLUG

$

$

Not available

11

Husqvarna 581269201

SPACER 5/16"

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 539112660

BEARING FLANGED

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 590486802

WHEEL.CARLSTAR.11X4-5".MS417

$87.99

$

In Stock, only 1 left!

0

15

Husqvarna 873930800

NUT. 1/2-13 HEX CNTRLK GR 5 ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

5

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 18

0
