RZ 5424 (965881301) - Husqvarna 54" Zero-Turn Mower (2009-01) Steering Parts Diagram

54" Zero-Turn Mower

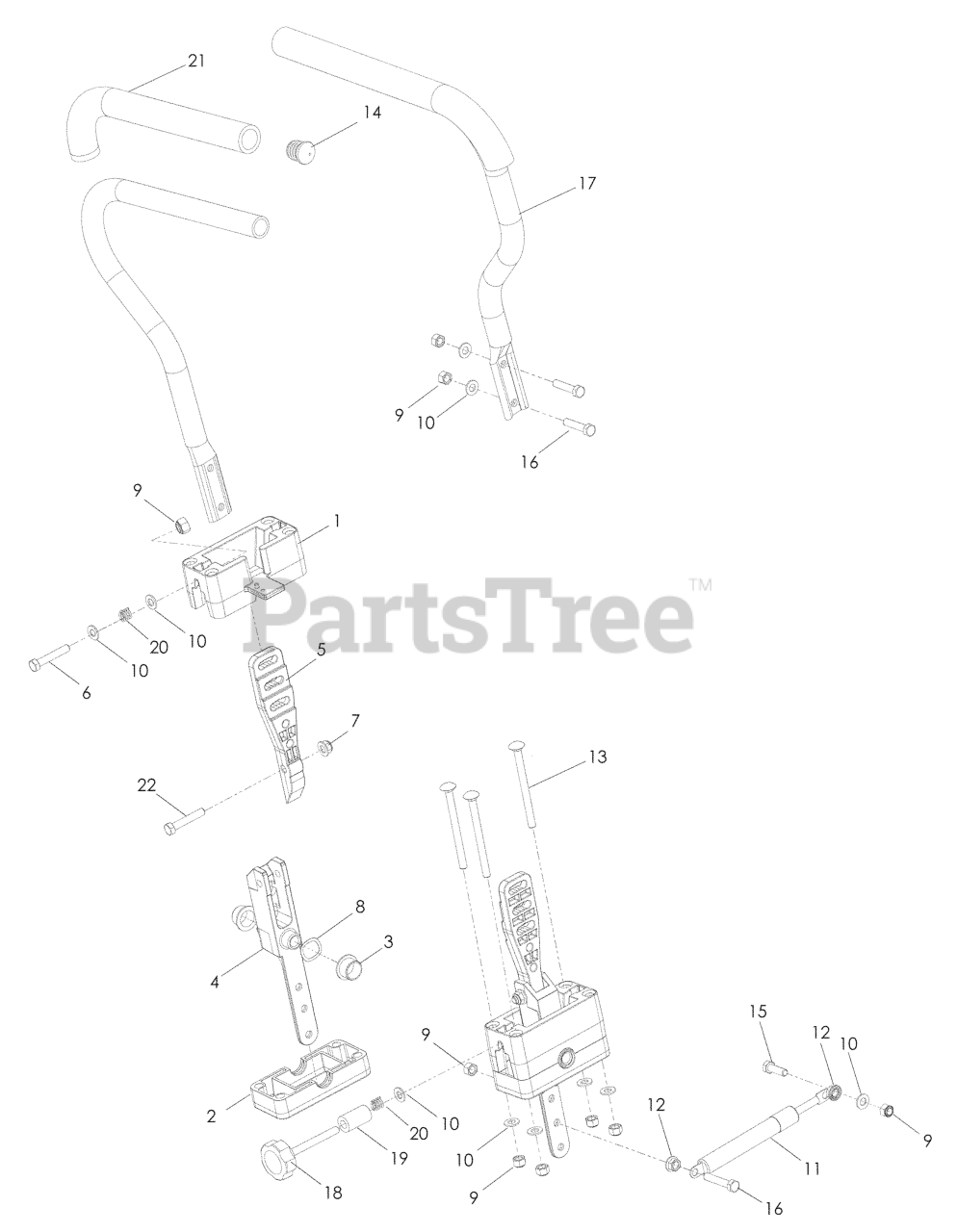

Steering Parts Diagram

  • Title

1

Husqvarna 539131517

BLOCK, UPPER

$30.99

$

In Stock, only 1 left!

0

2

Husqvarna 539131519

BLOCK, LOWER

$15.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 6

0

4

Husqvarna 522452901

PIVOT SECTION, DRIVE

$31.99

$

In Stock, Qty 10

0

5

Husqvarna 539131521

MOUNT, DRIVE CONTROL
(Superseded to 576452801)

$40.99

$

In Stock, only 3 left!

0

6

Husqvarna 539108395

HCS 5/16-18 x 2 TPBLT

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

8

Husqvarna 539133007

WASHER, .825 x 1.087 WAVE

$4.99

$

In Stock, only 3 left!

0

9

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

11

Husqvarna 539102720

DAMPENER

$66.99

$

In Stock, only 3 left!

0

12

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510422601

RHSNB 5/16-18 x 4

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 539122636

PLUG, END

$6.49

$

In Stock, only 2 left!

0

15

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539976935

HCS 5/16-18 x 1½

$

$

Not available

17

Husqvarna 522524303

LEVER, w/GRIP
(Superseded to 579036901)

$

$

Not available

18

Husqvarna 521982601

KNOB

$

$

Not available

19

Husqvarna 539103543

SPACER

$7.49

$

In Stock, only 2 left!

0

20

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

21

Husqvarna 522524302

GRIP, FOAM

$

$

Currently unavailable

22

Husqvarna 539990669

HCS 5/16-18 x 1¾
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0
