RZ 5424 (965881301) - Husqvarna 54" Zero-Turn Mower (2009-01) Seat Parts Diagram

54" Zero-Turn Mower

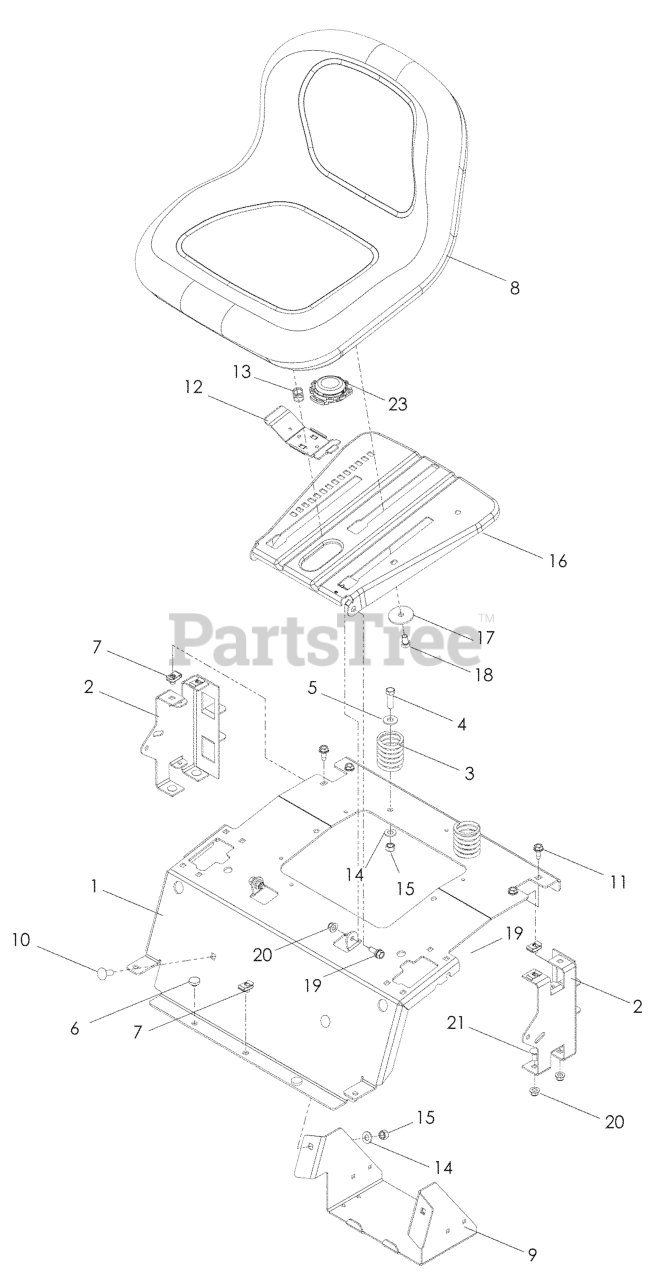

Seat Parts Diagram

  • Title

1

Husqvarna 522545402

SUPPORT, SEAT, FLT

$

$

Not available

2

Husqvarna 510182902

SUPPORT, SEAT RR

$66.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

4

Husqvarna 539976941

HCS 3/8-16 x 1¼

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 539990517

WASHER 3/8 FLT STD

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

7

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 12

0

8

Husqvarna 532424068

SEAT
(Superseded to 532439822)

$218.99

$

Usually ships in 3-10 days

0

9

Husqvarna 510231302

BOX, BATTERY

$182.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990645

RHSNB 3/8-16 x 1

$

$

Not available

11

Husqvarna 539107475

BOLT 5/16-18 x ¾ THD FRM

$6.49

$

In Stock, only 4 left!

0

12

Husqvarna 532197661

HANDLE, SLIDE

$

$

Not available

13

Husqvarna 532198200

SPRING, LATCH

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532196977

PAN, SEAT
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539111897

WASHER 3/8 SPECIAL

$

$

Not available

18

Husqvarna 539108503

HCS 3/8-16 x 5/8

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539110303

BOLT 5/16-18 SHOULDER

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

21

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539115639

BOLT 5/16-18 x 2¼ CARRIAGE

$3.99

$

In Stock, only 1 left!

0

23

Husqvarna 539132140

SWITCH, SEAT

$14.99

$

In Stock, only 2 left!

0
