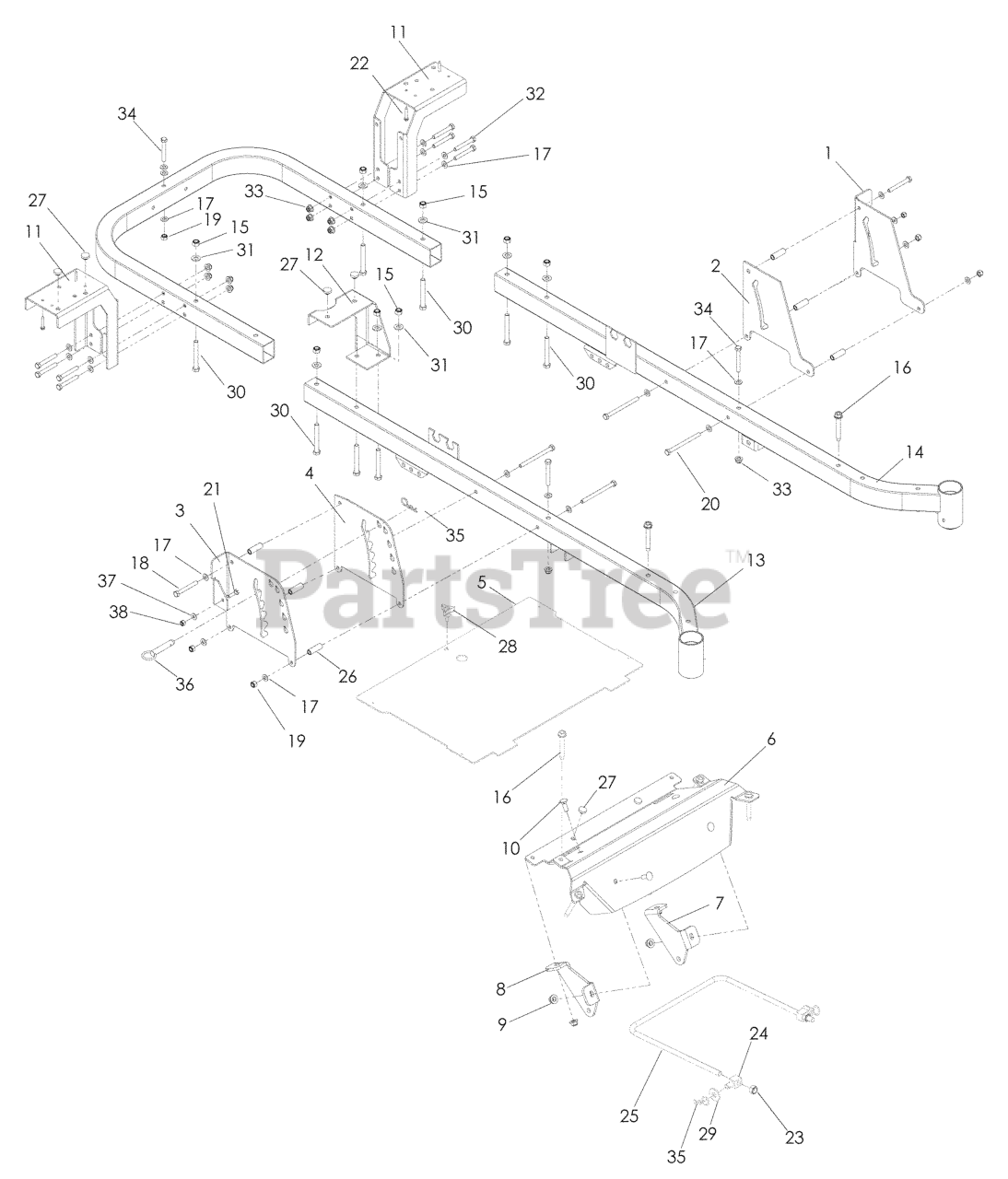

RZ 5424 (965881301) - Husqvarna 54" Zero-Turn Mower (2009-01) Chassis / Frame Parts Diagram

54" Zero-Turn Mower

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 510261802

PLATE, OUTER BRAKE

$60.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510206703

PLATE, BRAKE LATCH

$48.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510245602

PLATE, DECK HEIGHT

$54.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510240502

PLATE, DECK HEIGHT

$21.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522842902

FOOT PLATE w/DECALS

$157.99

$

In Stock, only 1 left!

0

6

Husqvarna 522719504

FOOT REST

$102.99

$

Usually ships in 3-10 days

0

7

Husqvarna 522443302

MOUNT, STRUT, RT, BLK

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 522443304

MOUNT, STRUT, LT, BLK

$398.99

$

Usually ships in 3-10 days

0

9

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC

$

$

Not available

10

Husqvarna 539990645

RHSNB 3/8-16 x 1

$

$

Not available

11

Husqvarna 510225902

SUPPORT, FENDER

$78.99

$

Usually ships in 3-10 days

0

12

Husqvarna 510226002

SUPPORT, TANK

$47.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510177503

FRAME, FRONT RT
(Superseded to 589283402)

$91.99

$

Usually ships in 3-10 days

0

14

Husqvarna 510177403

FRAME, FRONT LT
(Superseded to 589283302)

$91.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539111976

BOLT 3/8-16 x 25/8 THD FRM

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

18

Husqvarna 539991046

HCS 5/16-18 x 2½

$4.99

$

In Stock, Qty 8

0

19

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539102335

HCS 5/16-18 x 4

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539977761

HCS ¼-20 x 1

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539110674

SCREW 10-12 x 1¼ WSH HD

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539119124

NUT 7/16-14 HEX NYLOC

$

$

Not available

24

Husqvarna 539114789

SWIVEL

$17.99

$

In Stock, only 2 left!

0

25

Husqvarna 521938101

LINK, FRONT SUSPENSION

$

$

Not available

26

Husqvarna 515988101

SPACER ½ OD x 1½
(Superseded to 580486101)

$

$

Not available

27

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

28

Husqvarna 539104411

KNOB w/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539109554

WASHER ½ FLAT

$

$

Not available

30

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

31

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539976938

HCS 5/16-18 x 2¼

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

34

Husqvarna 539101721

HCS 5/16-18 x 2¾

$4.99

$

In Stock, Qty 7

0

35

Husqvarna 539976989

#4 HAIRPIN

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539102526

PIN, LIFT

$21.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990055

WASHER ¼ FLAT SAE

$3.99

$

In Stock, Qty 19

0

38

Husqvarna 539976978

NUT ¼-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0
