RZ 5424 (965881301) - Husqvarna 54" Zero-Turn Mower (2009-01) 54" Deck Parts Diagram

54" Zero-Turn Mower

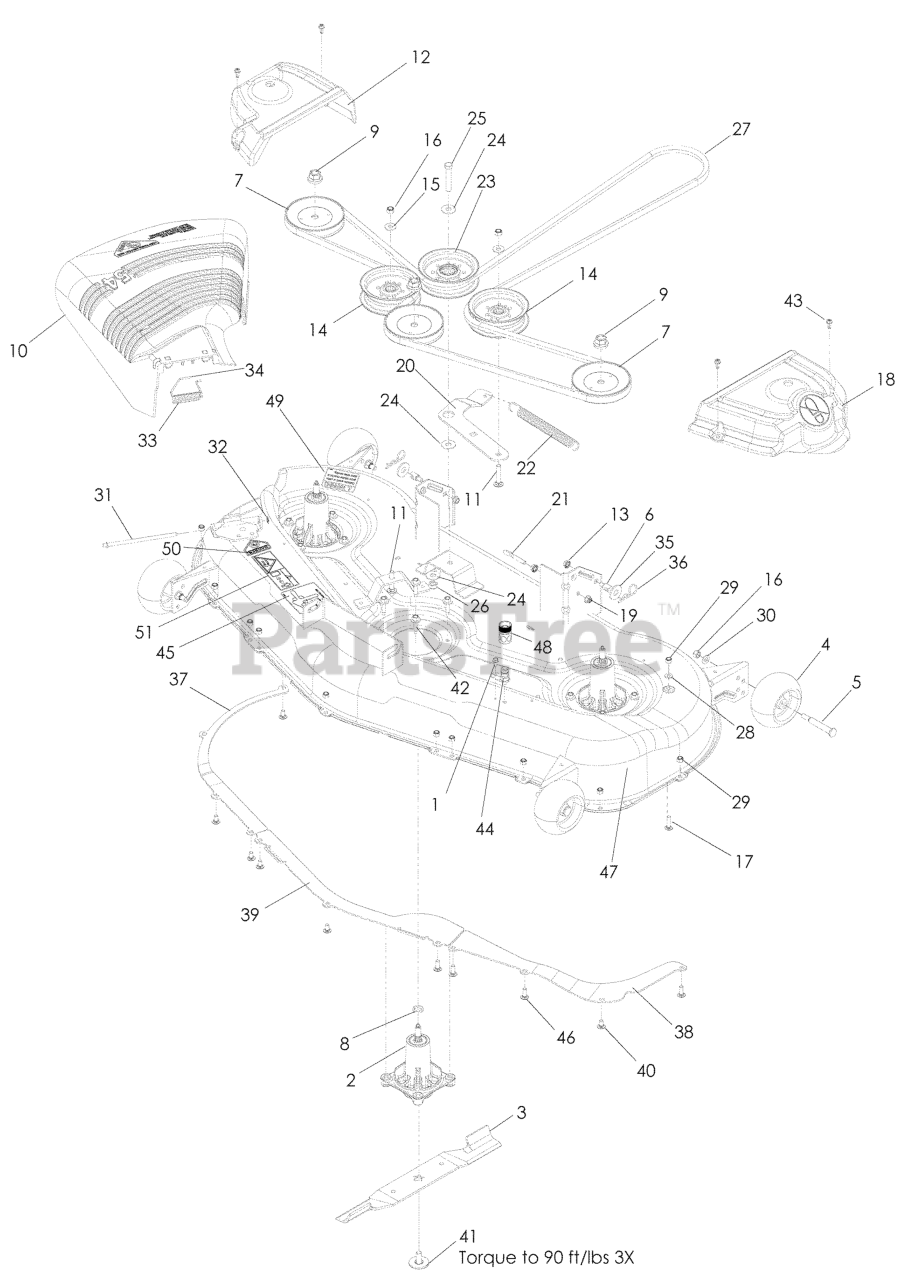

54" Deck Parts Diagram

  • Title
1

Husqvarna 539108461

BOLT ¼-20 x ½ HWST

$4.99

$

In Stock, Qty 6

0

2

Husqvarna 539112057

HOUSING, CUTTER
(Superseded to 587820301)

$56.99

$

In Stock, Qty 16

0

3

Husqvarna 777187256

BLADE, BAGGING
(Superseded to 532187256)

$22.99

$

In Stock, Qty 20+

0

4

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

5

Husqvarna 539107608

BOLT ½ x 25/8 SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

6

Husqvarna 532195161

STUD, w/ANTI-ROTATE

$

$

Not available

7

Husqvarna 539112171

PULLEY
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

8

Husqvarna 529107520

WASHER/SPACER

$

$

Currently unavailable

9

Husqvarna 539107590

NUT 9/16 TOP CNTRLK
(Superseded to 596134801)

$4.99

$

In Stock, Qty 16

0

10

Husqvarna 539112054

DEFLECTOR, 54"
(Superseded to 532187257)

$80.99

$

In Stock, Qty 9

0

11

Husqvarna 539100145

RHSNB 3/8-16 x 2
(Superseded to 595901401)

$3.99

$

In Stock, only 4 left!

0

12

Husqvarna 539113558

BELT SHIELD, RT

$

$

Not available

13

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532196106

PULLEY, IDLER

$39.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539113557

BELT SHIELD, LT

$40.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 510220002

ARM, IDLER

$17.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539115574

EYE BOLT 5/16 x 3½

$

$

Not available

22

Husqvarna 539120920

SPRING, DECK BELT

$

$

Not available

23

Husqvarna 532196104

PULLEY, IDLER

$43.99

$

In Stock, Qty 20+

0

24

Husqvarna 539104864

WASHER 7/16 FLAT
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539104870

HCS 7/16-14 x 2½
(Superseded to 874780740)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539119124

NUT 7/16-14 HEX

$

$

Not available

27

Husqvarna 539114557

BELT.DECK.52".54"

$91.99

$

In Stock, only 1 left!

0

28

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 17

0

29

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 539107626

PUSHNUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539107609

SPRING, TORSION

$5.99

$

In Stock, Qty 20+

0

34

Husqvarna 539107627

CAP, SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 539109554

WASHER ½ FLAT

$

$

Not available

36

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539112059

BAFFLE, RIGHT 54
(Superseded to 532187342)

$12.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539112060

BAFFLE, LEFT 54"
(Superseded to 532187344)

$

$

Not available

39

Husqvarna 539112062

BAFFLE, CENTER 54"
(Superseded to 532187607)

$

$

Not available

40

Husqvarna 539990799

RHSNB 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 539107522

BOLT WASHER ASSM
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539107630

SCREW 5/16-18 x WSHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 539107631

SCREW ¼-20 x 5/8 THDROLL
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 532415598

PORT, WASHOUT

$8.99

$

In Stock, Qty 13

0

45

Husqvarna 539112620

DECAL, BELT ROUTING

$7.49

$

In Stock, only 4 left!

0

46

Husqvarna 539990799

RHSNB 5/16-18 x 1
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 522744401

DECK w/ DECALS
(Superseded to 583909301)

$626.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532416405

COUPLING, QUICK CONN

$10.99

$

In Stock, Qty 7

0

49

Husqvarna 539113224

DECAL, WARNING

$9.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539913010

DECAL, WARNING

$4.99

$

In Stock, only 1 left!

0

51

Husqvarna 539105746

DECAL, SEVERING

$3.99

$

In Stock, only 3 left!

0
