RZ 5424 (965881301-00) - Husqvarna 54" Zero-Turn Mower (2010-01) FRAME Parts Diagram

54" Zero-Turn Mower

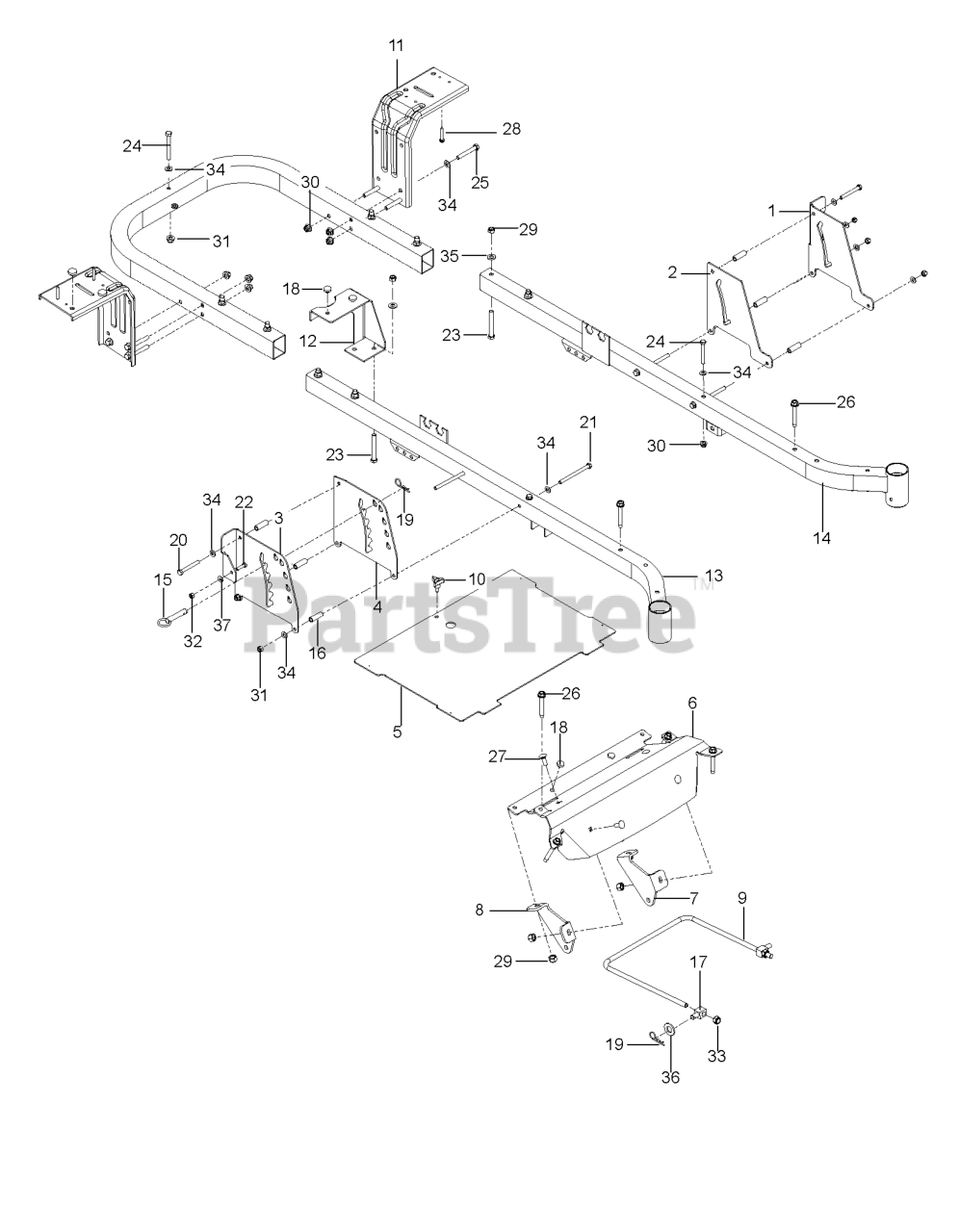

FRAME Parts Diagram

  • Title

18

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

35

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 510226002

SUPPORT, TANK, BLACK

$47.99

$

Usually ships in 3-10 days

0

9

Husqvarna 521938101

LINK, FRONT SUSP.

$

$

Not available

22

Husqvarna 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 510261802

PLATE, OUTER BRAKE, BLACK

$60.99

$

Usually ships in 3-10 days

0

34

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 581222802

MOUNT.STRUT.RH.431

Note: LT

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 580486101

SPACER.334.ID.5.OD.1.5.L

$

$

Not available

15

Husqvarna 510016503

PIN.DECK.HEIGHT.RZ

$

$

Not available

6

Husqvarna 522719504

FOOT.REST.MED.ORANGE

$102.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874780564

BOLT

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

24

Husqvarna 874780544

BOLT HEX

$

$

Not available

7

Husqvarna 581222902

MOUNT.STRUT.LH.431

Note: RT

$7.99

$

Usually ships in 3-10 days

0

36

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

$

$

Not available

5

Husqvarna 522842902

PLATE, FOOT W/DECALS RZ

Note: W/ SFTY DECALS

$157.99

$

In Stock, only 1 left!

0

23

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5

$

$

Not available

14

Husqvarna 510177403

FRAME, LT, ORANGE
(Superseded to 589283302)

$91.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539110674

SCR #10-12X1-1/2HEX WASH HD ZD

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510245602

PLATE, HEIGHT ADJ, BLACK

$54.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

2

Husqvarna 510206703

PLATE, BRAKE LATCH, BLACK

$48.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

26

Husqvarna 577117701

HHFS 3/8-16 X 3 GRD 5 ZD
(Superseded to 577117702)

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 874780540

HCS 5/16-18 X 2-1/2 GR 5 ZD

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

31

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510240502

PLATE, DECK HEIGHT, BLACK

$21.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 580501302

FENDER.SUPPORT.PNT.X431

$37.99

$

Usually ships in 3-10 days

0

17

Husqvarna 581514301

SWIVEL.TRUNION.LINK.DECK.FRONT

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 510177503

FRAME, RT, ORANGE
(Superseded to 589283402)

$91.99

$

Usually ships in 3-10 days

0
