RZ 5422 (965881401) - Husqvarna 54" Zero-Turn Mower (2010-01) Mowing Deck/ Cutting Deck Parts Diagram

54" Zero-Turn Mower

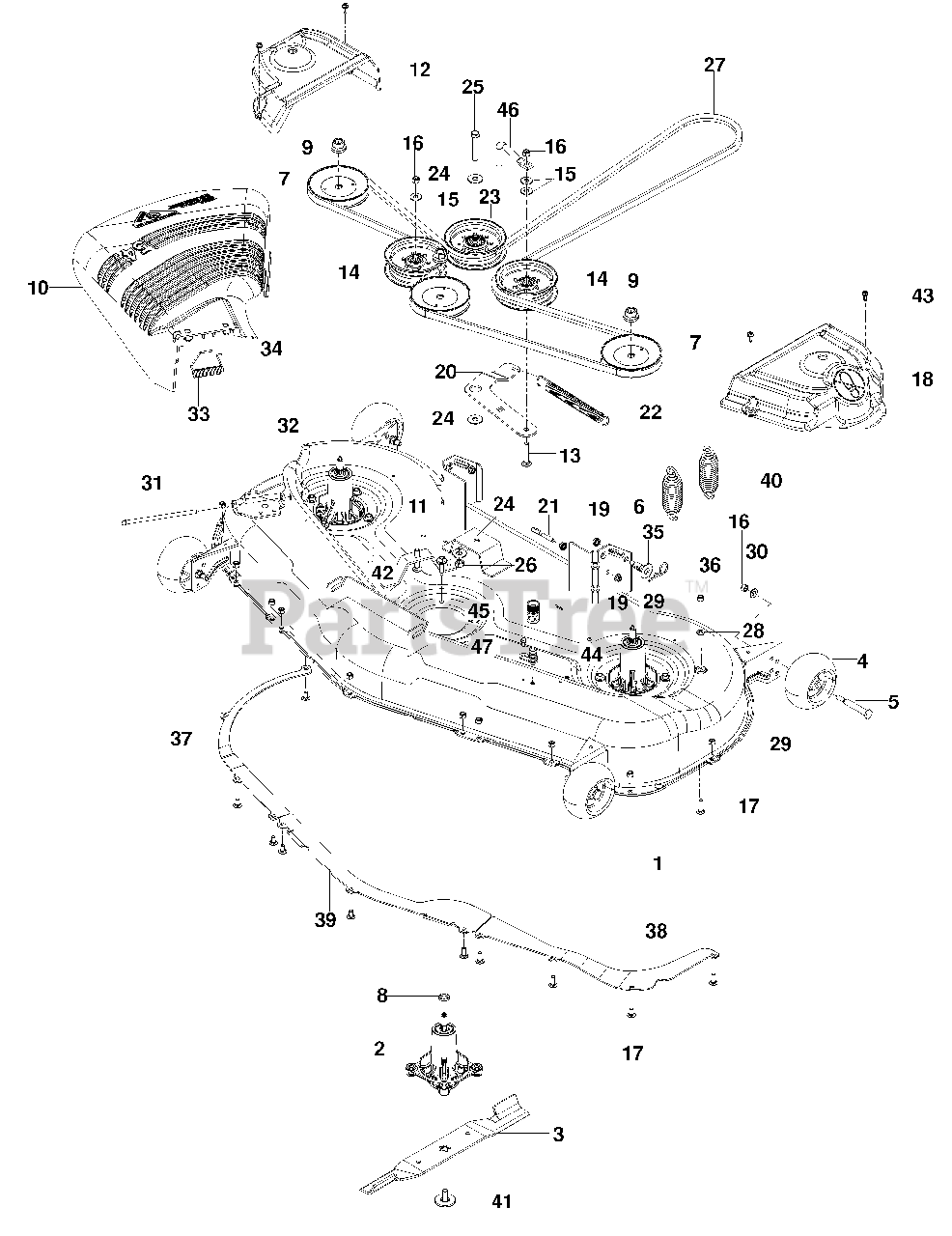

Mowing Deck/ Cutting Deck Parts Diagram

  • Title
1

Husqvarna 522744401

DECK w/ SAFETY DECALS
(Superseded to 583909301)

$626.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112057

HOUSING, CUTTER
(Superseded to 587820301)

$56.99

$

In Stock, Qty 18

0

3

Husqvarna 532187256

BLADE, BAGGING
(Superseded to 594892901)

$22.99

$

In Stock, Qty 19

0

4

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

5

Husqvarna 539107608

BOLT 3/8-16 SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

6

Husqvarna 532195161

STUD w/ ANTI-ROTATE

$

$

Not available

7

Husqvarna 539112171

PULLEY
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

8

Husqvarna 539107520

WASHER/SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

9

Husqvarna 539107590

NUT 9/16 TOP CNTRLK
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

10

Husqvarna 539112054

DEFLECTOR, 54"
(Superseded to 532187257)

$80.99

$

In Stock, Qty 8

0

11

Husqvarna 539100145

RHSNB 3/8-16 x 2
(Superseded to 595901401)

$3.99

$

In Stock, only 4 left!

0

12

Husqvarna 539113558

BELT SHIELD, RT

$

$

Not available

13

Husqvarna 539128101

BOLT 3/8-16 x 2 1/2 CARRIAGE

$

$

Not available

14

Husqvarna 532196106

PULLEY, IDLER

$39.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990517

WASHER 3/8 FLT STD

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539113557

BELT SHIELD, LT

$40.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 510220002

ARM, IDLER

$17.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539115574

EYE BOLT 5/16 x 3 1/2

$

$

Not available

22

Husqvarna 539120920

SPRING, DECK BELT

$

$

Not available

23

Husqvarna 532196104

PULLEY, IDLER

$43.99

$

In Stock, Qty 19

0

24

Husqvarna 539104864

WASHER 7/16 FLT
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539104870

HCS 7/16-14 x 2 1/2
(Superseded to 874780740)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539119124

NUT 7/16-14 HEX

$

$

Not available

$91.99

$

In Stock, only 1 left!

0

28

Husqvarna 539990188

WASHER 5/16 SAE FLT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 539107626

PUSHNUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539107609

SPRING, TORSION

$5.99

$

In Stock, Qty 20+

0

34

Husqvarna 539107627

CAP, SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 539109554

WASHER 1/2 FLT

$

$

Not available

36

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539112059

BAFFLE, RIGHT 54
(Superseded to 532187342)

$12.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539112060

BAFFLE, LEFT 54"
(Superseded to 532187344)

$

$

Not available

39

Husqvarna 539112062

BAFFLE, CENTER 54"
(Superseded to 532187607)

$

$

Not available

$

$

Not available

41

Husqvarna 539107522

BOLT WASHER ASSY
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539107630

SCREW 5/16-18 x WSHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 539107631

SCREW 1/4-20 x 5/8 THDROLL
(Superseded to 532137729)

$4.99

$

In Stock, Qty 19

0

44

Husqvarna 532415598

PORT, WASHOUT

$8.99

$

In Stock, Qty 12

0

45

Husqvarna 532416405

COUPLING, QUICK CONN

$10.99

$

In Stock, Qty 6

0

46

Husqvarna 522629701

BELT KEEPER

$

$

Not available

47

Husqvarna 539108461

BOLT 1/4-20 x 1/2 HWST

$4.99

$

In Stock, Qty 6

0
