RZ 54 i (967003603) - Husqvarna Zero-Turn Mower (2012-12) WHEELS TIRES Parts Diagram

Zero-Turn Mower

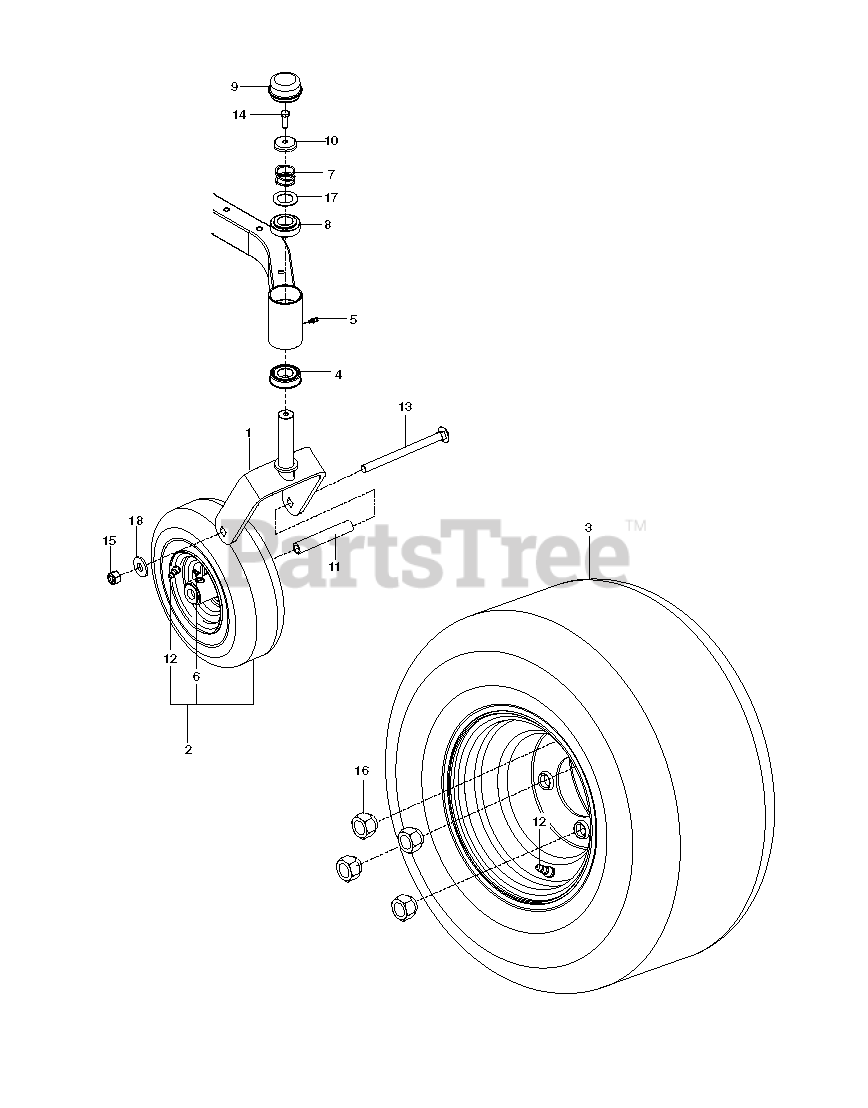

WHEELS TIRES Parts Diagram

  • Title

1

Husqvarna 576588802

YOKE.CASTER.ORANGE
(Superseded to 586650309)

$62.99

$

In Stock, Qty 5

0

2

Husqvarna 576588602

WHEEL ASSY, WIDE, RZ

$125.99

$

In Stock, Qty 20+

0

3

Husqvarna 579753401

WHEEL.A500.18 X 9.5-8.SILVER

$265.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539112660

BEARING FLANGED

$34.99

$

In Stock, Qty 20+

0

5

Husqvarna 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 6

0

7

Husqvarna 539115747

SPRING, CASTER

$

$

Not available

8

Husqvarna 539117901

BUSHING, CASTER

$11.99

$

In Stock, Qty 20+

0

9

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

In Stock, Qty 20+

0

10

Husqvarna 539115749

CASTER.PLUG

$

$

Not available

11

Husqvarna 576588901

SPACER, PIVOT

$22.99

$

In Stock, Qty 20+

0

12

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

13

Husqvarna 576601501

RHSNB 1/2-13 X 7.5
(Superseded to 576601503)

$13.99

$

In Stock, Qty 20+

0

14

Husqvarna 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

15

Husqvarna 539200100

NUT 1/2-13 HEX CNTRLK GR 5 ZD

$6.49

$

In Stock, Qty 10

0

16

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

17

Husqvarna 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

18

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available
