RZ 4623 (967009802) - Husqvarna 46" Zero-Turn Mower (2011-11) IGNITION SYSTEM Parts Diagram

46" Zero-Turn Mower

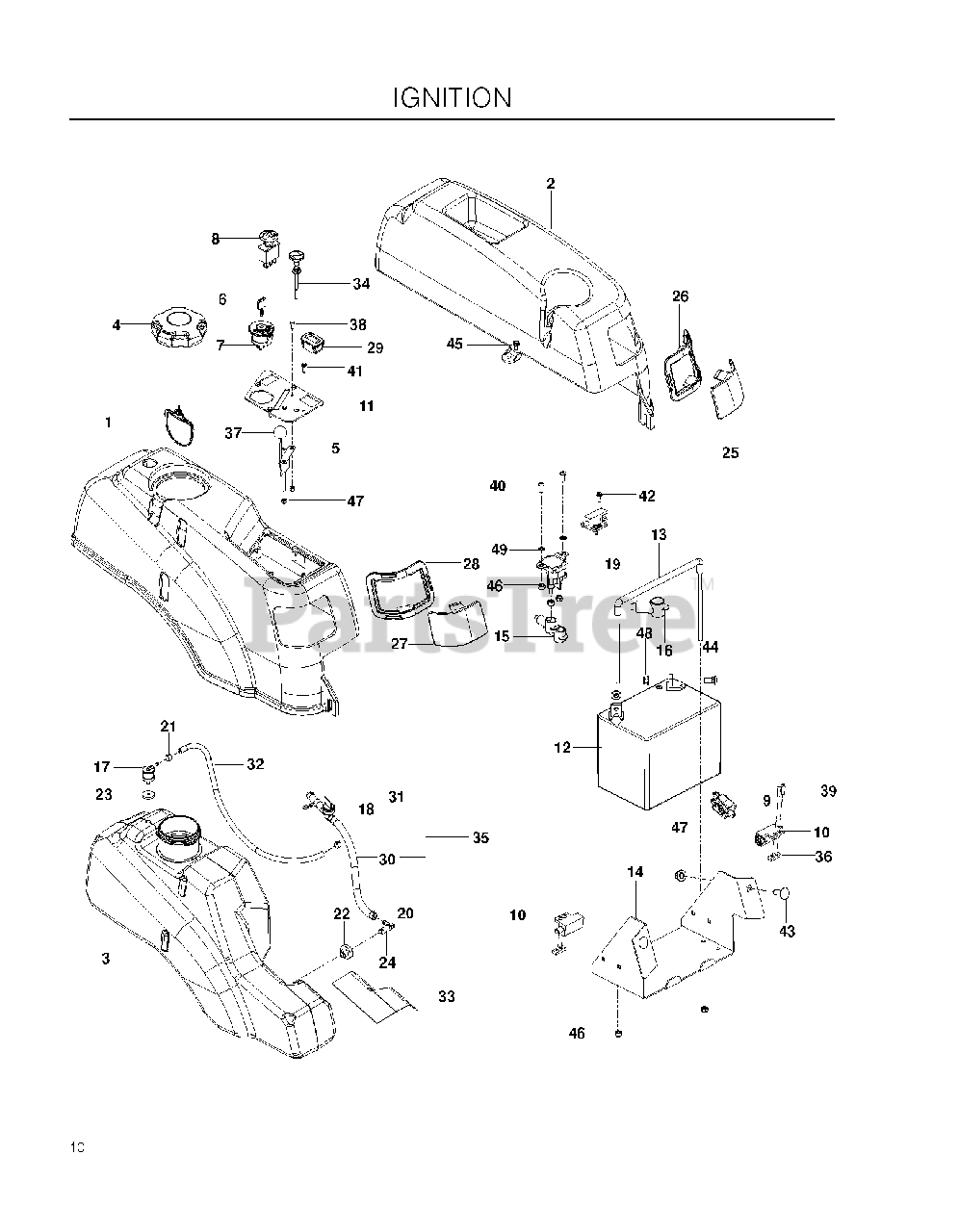

IGNITION SYSTEM Parts Diagram

  • Title
1

Husqvarna 578179001

FENDER RT, BLACK

$

$

Not available

2

Husqvarna 539130374

FENDER, LT

$93.99

$

In Stock, only 1 left!

0

3

Husqvarna 578178601

TANK.FUEL.RT.EPA
(Superseded to 578180601)

$157.99

$

Usually ships in 3-10 days

0

4

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB

$

$

Not available

6

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

7

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

8

Husqvarna 539101768

RP SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

9

Husqvarna 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0

10

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539112735

CONSOLE.PLATE.BLACK

$27.99

$

In Stock, only 1 left!

0

12

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

13

Husqvarna 539131209

BATTERY TIE DOWN ASSEMBLY

$31.99

$

Usually ships in 3-10 days

0

14

Husqvarna 510231302

BOX, BATTERY, BLACK

$182.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

16

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 13

0

18

Husqvarna 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

19

$26.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

22

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 12

0

23

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 5

0

24

Husqvarna 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, Qty 7

0

25

Husqvarna 539110056

LENS, COLORED LEFT
(Superseded to 539110457)

$7.49

$

In Stock, only 2 left!

0

26

Husqvarna 539110455

LEFT HEADLIGHT RIM GREY

$6.49

$

In Stock, only 1 left!

0

27

Husqvarna 539110057

LENS, COLORED RIGHT
(Superseded to 539110453)

$7.49

$

In Stock, only 1 left!

0

28

Husqvarna 539110451

RT HEADLIGHT RIM GREY

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 576179401

HOUR METER

$34.99

$

In Stock, Qty 6

0

30

Husqvarna 539932956

GAS LINE 10"

$

$

Not available

31

Husqvarna 505215101

FUEL LINE 3"

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 574521302

HOSE, FUEL, 3/16" X 17-1/4"
(Superseded to 587044517)

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 522559101

SHIELD, HEAT

$37.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539112439

CHOKE CABLE

$34.99

$

In Stock, only 1 left!

0

35

Husqvarna 576660701

FUEL LINE ASSY

$27.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

37

Husqvarna 539133049

KNOB.ROUND.BALL.BLACK

$18.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

40

Husqvarna 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

44

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 6

0

46

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

47

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

48

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

49

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

Note: NOT SHOWN

$10.99

$

In Stock, only 2 left!

0

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

Note: NOT SHOWN

$9.49

$

Usually ships in 3-10 days

0

Husqvarna 515980501

WIRING HARNESS
(Superseded to 580798101)

Note: NOT SHOWN

$145.99

$

Usually ships in 3-10 days

0

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0
