RZ 4623 (966764501) - Husqvarna 46" Zero-Turn Mower (2011-03) ENGINE PLATE Parts Diagram

46" Zero-Turn Mower

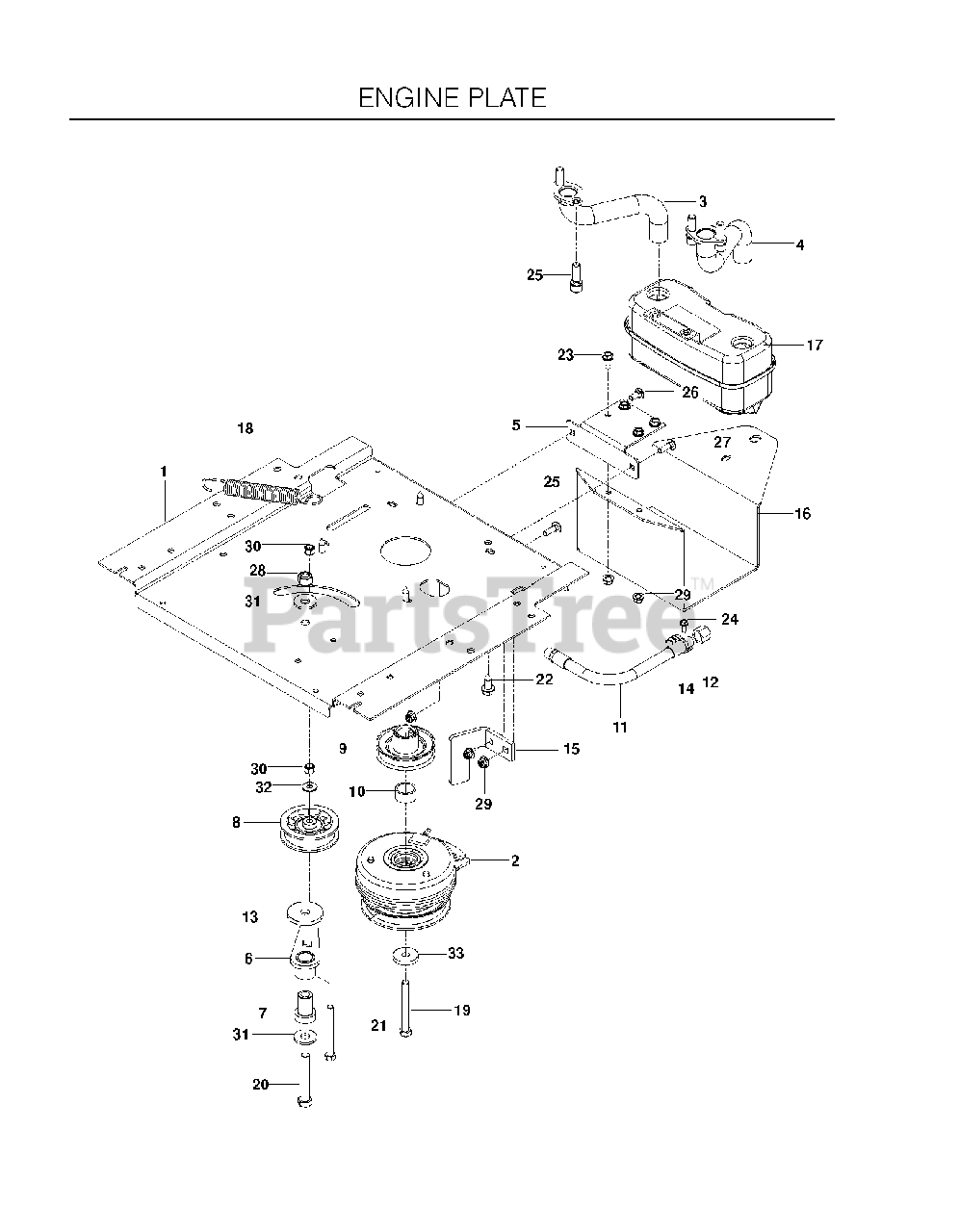

ENGINE PLATE Parts Diagram

  • Title

1

Husqvarna 575327002

PLATE, ENGINE BLK
(Superseded to 532448161)

$66.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505287301

CLUTCH, 105 FT-LBS

$284.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

Note: RT

$22.99

$

In Stock, only 1 left!

0

4

Husqvarna 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

Note: LT

$20.99

$

In Stock, only 1 left!

0

5

Husqvarna 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

6

Husqvarna 539112092

IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, Qty 8

0

7

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539114530

RP PULLEY, ENGINE
(Superseded to 587537401)

$26.99

$

In Stock, only 3 left!

0

10

Husqvarna 539115326

HUB PULLEY SPACER

$

$

Not available

11

Husqvarna 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 10

0

14

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

15

Husqvarna 510246002

STOP, CLUTCH, BLACK

$27.99

$

Usually ships in 3-10 days

0

16

Husqvarna 510260502

GUARD, MUFFLER, BLACK

$91.99

$

In Stock, only 1 left!

0

17

Husqvarna 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 2 left!

0

18

Husqvarna 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 11

0

19

Husqvarna 576968001

HCS 7/16-20 X 2.5 GR8

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

21

Husqvarna 539109389

HCS 3/8-16X3 1/2 GR5

$5.99

$

In Stock, only 3 left!

0

22

Husqvarna 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 19

0

23

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

24

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

25

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

32

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

Husqvarna 532198316

PIGTAIL.MATNLK.OLD.HARN

Note: NOT SHOWN

$10.99

$

In Stock, only 1 left!

0
