RZ 4623 (966764501-00) - Husqvarna 46" Zero-Turn Mower (2015-03) WHEELS & TIRES Parts Diagram

46" Zero-Turn Mower

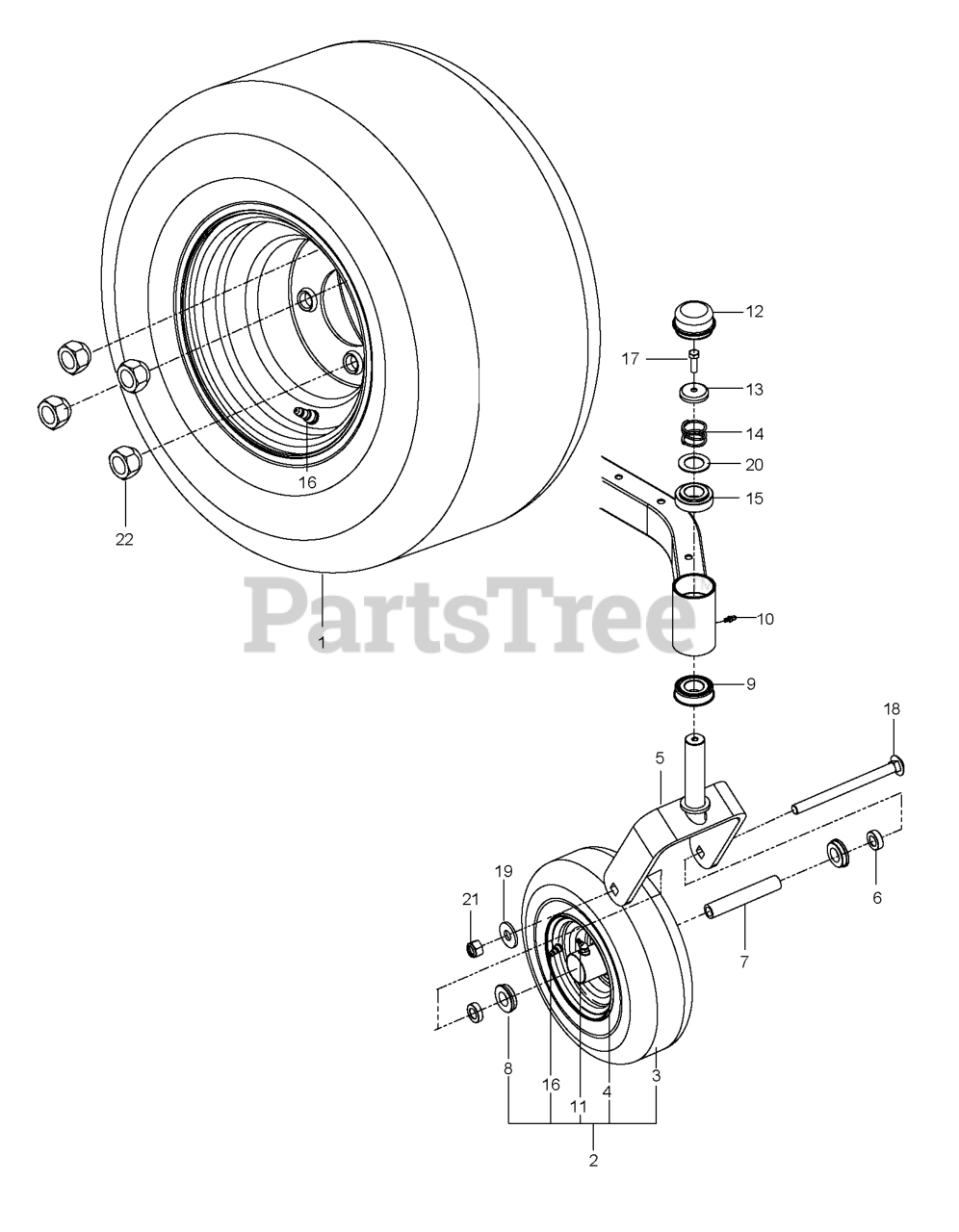

WHEELS & TIRES Parts Diagram

  • Title

$

$

Not available

11

Husqvarna 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 510186505

YOKE.CASTER.ORANGE
(Superseded to 510186501)

$109.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539121159

RHSNB 1/2-13 X 6.50 GR2 ZD

$24.99

$

In Stock, only 1 left!

0

19

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

22

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

21

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

$4.99

$

In Stock, Qty 18

0

3

Husqvarna 539114697

TIRE.11"X4"-5.4PLY.SMOOTH.KEND

$

$

Not available

6

Husqvarna 539114805

SPACER, 5/16"

$12.99

$

In Stock, Qty 8

0

$10.99

$

In Stock, Qty 8

0

9

Husqvarna 539112660

BEARING FLANGED

$34.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539110470

WHEEL ASM.18X8.5-8.KENDA.
(Superseded to 581197301)

$194.99

$

In Stock, only 1 left!

0

15

Husqvarna 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539115747

SPRING, CASTER

$

$

Not available

2

Husqvarna 516001901

TIRE.CASTER.ASSEM.11X4-5.GR
(Superseded to 590486802)

$87.99

$

In Stock, only 1 left!

0

20

Husqvarna 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

8

Husqvarna 539102484

BEARING RETAINER

$5.99

$

In Stock, only 1 left!

0

17

Husqvarna 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

12

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539115749

CASTER.PLUG

$

$

Not available

539 11 25-05

Husqvarna 539112505

PULLEY, 48

$51.99

$

Usually ships in 3-10 days

0

535 42 88-01

$9.49

$

Usually ships in 3-10 days

0

539 11 25-28

Husqvarna 539112528

DECK BELT, 48 CMB

$109.99

$

Usually ships in 3-10 days

0

539 99 05-17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 11 25-08

Husqvarna 539112508

BELT SHIELD LT

$24.99

$

In Stock, only 1 left!

0

544 24 53-03

Husqvarna 544245303

LABEL

Note: NOT SHOWN: DECAL

$9.49

$

Usually ships in 3-10 days

0

506 98 26-01

$6.99

$

In Stock, Qty 6

0

725 25 44-71

$4.49

$

Usually ships in 3-10 days

0

539 10 32-95

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

535 42 89-01

Husqvarna 535428901

BEARING HOUSING

$

$

Not available

732 21 20-51

Husqvarna 732212051

NUT
(Superseded to 732212001)

$4.99

$

Usually ships in 3-10 days

0

539 10 15-72

Husqvarna 539101572

SCREW, 1/2C X 3 HEX CAP

$5.99

$

In Stock, Qty 9

0

732 25 22-01

$1.99

$

In Stock, only 2 left!

0

539 99 05-50

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 99 06-37

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

734 11 78-01

Husqvarna 734117801

WASHER - M12
(Superseded to 532052160)

$

$

Not available

535 42 94-01

Husqvarna 535429401

BLADE
(Superseded to 535429410)

$28.99

$

In Stock, only 3 left!

0

535 42 83-01

Husqvarna 535428301

NEEDS DESCRIPTION

$

$

Currently unavailable

539 10 32-30

$

$

Not available

539 10 32-57

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 4 left!

0

738 22 05-19

Husqvarna 738220519

BALL BEARING

$50.99

$

In Stock, only 2 left!

0

725 25 42-51

$7.49

$

Usually ships in 3-10 days

0

506 53 35-01

$6.49

$

Usually ships in 3-10 days

0

535 42 92-01

$

$

Currently unavailable

544 22 10-01

$

$

Currently unavailable

539 10 26-19

$40.99

$

In Stock, only 3 left!

0

539 10 26-98

$

$

Not available

539 11 26-20

Husqvarna 539112620

DECAL, BELT ROUTING

$7.49

$

In Stock, only 4 left!

0

539 10 26-43

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

539 11 29-63

$

$

Currently unavailable

539 11 33-45

Husqvarna 539113345

NEEDS DESCRIPTION

$

$

Currently unavailable

734 11 64-01

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

539 10 26-41

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

535 50 42-01

$

$

Currently unavailable

539 11 29-64

$

$

Currently unavailable

506 79 23-02

$14.99

$

Usually ships in 3-10 days

0

539 10 34-27

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, Qty 8

0

539 11 25-09

Husqvarna 539112509

BELT SHIELD RT

$34.99

$

Usually ships in 3-10 days

0

539 10 32-56

$12.99

$

In Stock, Qty 5

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 11 26-09

Husqvarna 539112609

KEY RETAINER

$10.99

$

Usually ships in 3-10 days

0

535 42 38-01

$5.99

$

Usually ships in 3-10 days

0

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

539 10 57-44

Husqvarna 539105744

DECAL, BELT DRIVE

$6.99

$

In Stock, only 2 left!

0

725 25 41-71

$9.49

$

Usually ships in 3-10 days

0

506 91 62-01

$7.49

$

Usually ships in 3-10 days

0

539 10 65-04

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

725 24 51-51

Husqvarna 725245151

SCREW 8X20

$5.99

$

In Stock, only 4 left!

0

539 10 32-58

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, only 1 left!

0

539 10 27-54

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 13

0

539 97 69-98

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

539 10 57-43

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

725 24 60-71

Husqvarna 725246071

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

535 42 87-02

$56.99

$

Usually ships in 3-10 days

0

539 99 05-82

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

544 18 54-01

Husqvarna 544185401

ROLLER
(Superseded to 539002472)

$

$

Not available

725 25 02-71

$1.99

$

Usually ships in 3-10 days

0
