RZ 4623 (966678201-00) - Husqvarna 46" Zero-Turn Mower (2010-09) SEAT Parts Diagram

46" Zero-Turn Mower

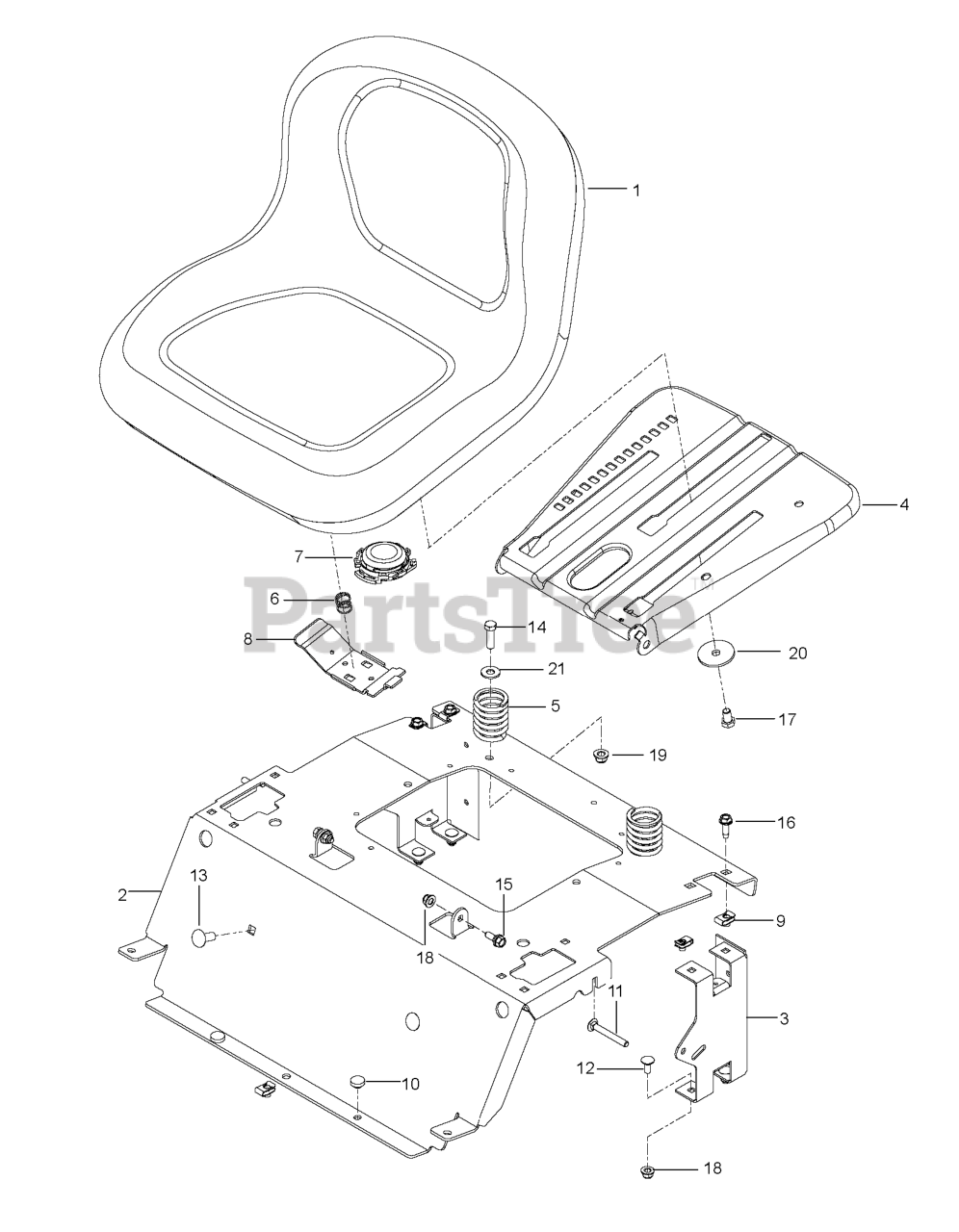

SEAT Parts Diagram

  • Title

12

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

5

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

21

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510171903

SUPPORT, SEAT ORANGE

$141.99

$

In Stock, only 1 left!

0

10

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

6

Husqvarna 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532439822

SEAT.TH150.MS498.GRY.HUSQ.TEX

$218.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539132140

SWITCH, SEAT N/C

$14.99

$

In Stock, only 2 left!

0

15

Husqvarna 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 874780620

BOLT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539108503

HCS 3/8-16 X 5/8 GR 5 ZD

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

19

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

13

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 574522702

SUPPORT, REAR SEAT, BLACK
(Superseded to 580308202)

$22.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK

$

$

Not available

18

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0
