RZ 4622 (967009806) - Husqvarna 46" Zero-Turn Mower (2014-04) WHEELS & TIRES Parts Diagram

46" Zero-Turn Mower

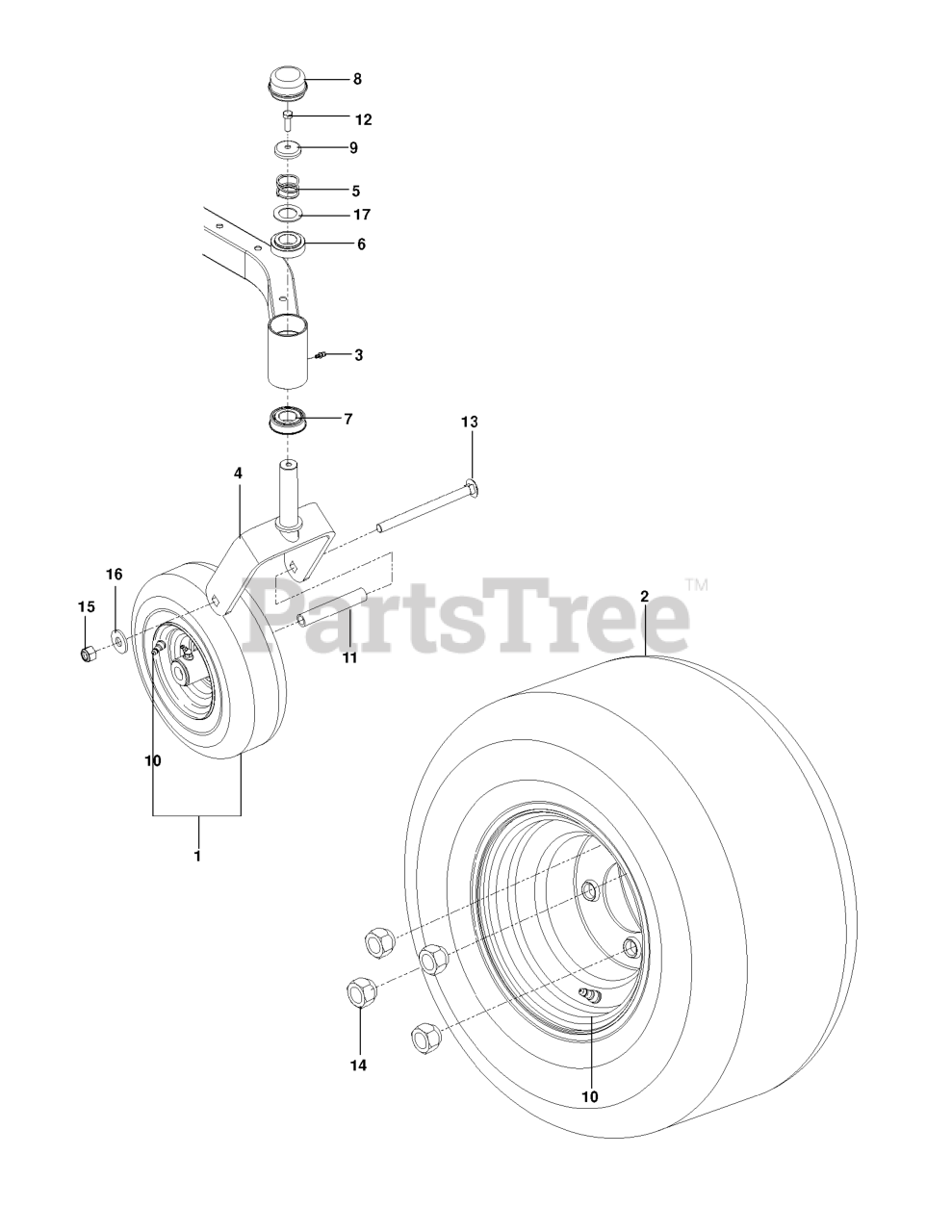

WHEELS & TIRES Parts Diagram

  • Title

16

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

$

$

Not available

3

Husqvarna 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 3 left!

0

7

Husqvarna 539112660

BEARING FLANGED

$34.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539115749

CASTER.PLUG

$

$

Not available

11

Husqvarna 576588901

SPACER, PIVOT

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

14

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

13

Husqvarna 576601501

RHSNB 1/2-13 X 7.5
(Superseded to 576601503)

$11.99

$

In Stock, Qty 13

0

1

Husqvarna 576588602

WHEEL ASSY, WIDE, RZ

$121.99

$

In Stock, only 4 left!

0

8

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539115747

SPRING, CASTER

$

$

Not available

4

Husqvarna 576588802

YOKE.CASTER.ORANGE
(Superseded to 586650309)

$56.99

$

In Stock, only 2 left!

0

15

Husqvarna 539200100

NUT 1/2-13 HEX CNTRLK GR 5 ZD

$6.49

$

In Stock, only 4 left!

0

10

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

12

Husqvarna 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

2

Husqvarna 581197301

WHEEL.ASSEM.18X8.5-8.KENDA.ZTR

$194.99

$

In Stock, only 1 left!

0
