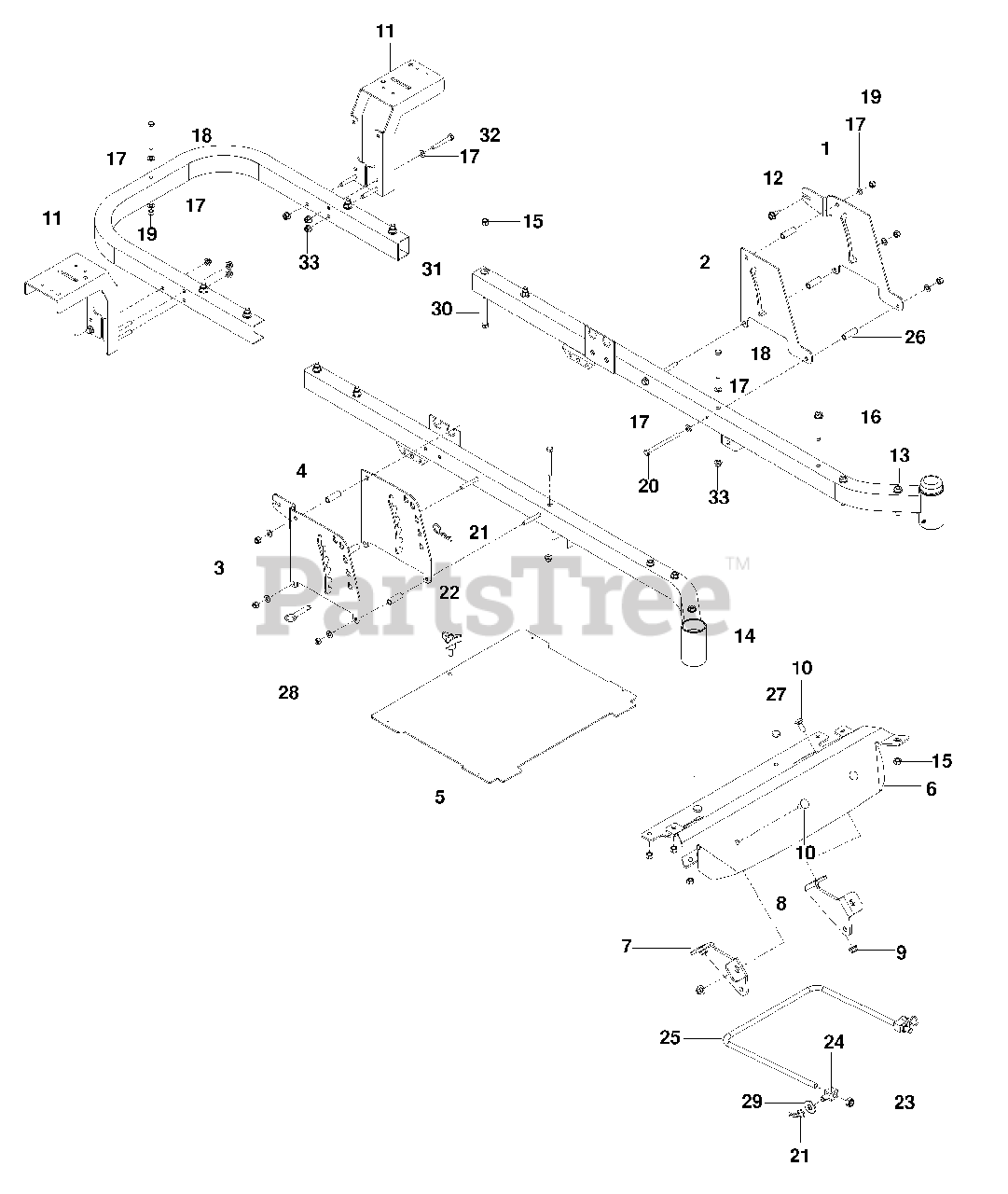

RZ 4619 CA (966503401) - Husqvarna 46" Zero-Turn Mower, CARB (2010-01) Frame Parts Diagram

46" Zero-Turn Mower, CARB

Frame Parts Diagram

  • Title

1

Husqvarna 521984902

PLATE, OUTER BRAKE BLK

$121.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510206703

PLATE, BRAKE LATCH BLK

$48.99

$

Usually ships in 3-10 days

0

3

Husqvarna 521985102

PLATE, LIFT OUTER BLK

$54.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510240502

PLATE, LIFT INNER BLK

$21.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522842902

FOOT PLATE w/DECALS

$157.99

$

In Stock, only 1 left!

0

6

Husqvarna 522719504

FOOT REST ORG

$102.99

$

Usually ships in 3-10 days

0

7

Husqvarna 522443302

MOUNT, STRUT RT BLK

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 522443304

MOUNT, STRUT LT BLK

$398.99

$

Usually ships in 3-10 days

0

9

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC

$

$

Not available

10

Husqvarna 539990645

RHSNB 3/8-16 x 1

$

$

Not available

11

Husqvarna 510225902

SUPPORT, FENDER BLK

$78.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539107475

BOLT 5/16-18 x 3/4 THD FRM

$6.49

$

In Stock, only 4 left!

0

13

Husqvarna 510177503

FRAME, FRONT RT ORG
(Superseded to 589283402)

$91.99

$

Usually ships in 3-10 days

0

14

Husqvarna 510177403

FRAME, FRONT LT ORG
(Superseded to 589283302)

$91.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539111976

BOLT 3/8-16 x 25/8 THD FRM

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990188

WASHER 5/ SAE FLT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539101721

HCS 5/16-18 x 2 3/4

$4.99

$

In Stock, Qty 7

0

19

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539102335

HCS 5/16-18 x 4

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976989

HAIRPIN

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539104411

KNOB w/ STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 539119124

NUT 7/16-14 HEX NYLOC

$

$

Not available

24

Husqvarna 539114789

SWIVEL

$17.99

$

In Stock, only 2 left!

0

25

Husqvarna 521938101

LINK, FRONT SUSPENSION

$

$

Not available

26

Husqvarna 515988101

SPACER 1/2 OD x 1 1/2
(Superseded to 580486101)

$

$

Not available

27

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

28

Husqvarna 539102526

LIFT PIN

$21.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539109554

WASHER 1/2 FLT

$

$

Not available

30

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

31

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539976938

HCS 5/16-18 x 2 1/4

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0
