RZ 4619 CA (966503401) - Husqvarna 46" Zero-Turn Mower, CARB (2010-01) Engine Plate Parts Diagram

46" Zero-Turn Mower, CARB

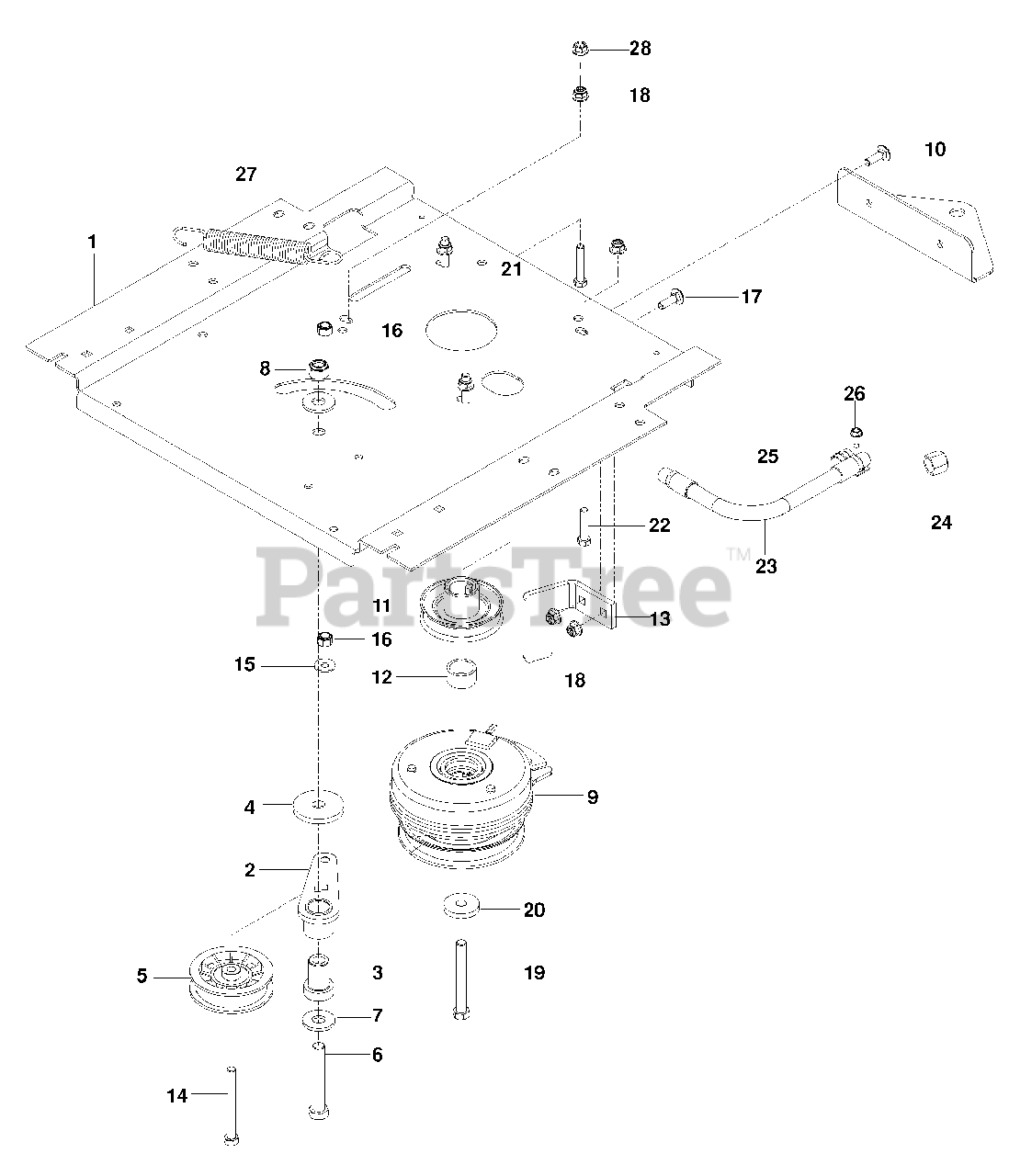

Engine Plate Parts Diagram

  • Title
1

Husqvarna 575327002

PLATE, ENGINE BLK
(Superseded to 532448161)

$66.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112092

ARM, IDLER
(Superseded to 583593901)

$13.99

$

In Stock, Qty 8

0

3

Husqvarna 539101231

SPINDLE, IDLER

$13.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539112670

WASHER, HEAVY

$4.99

$

In Stock, Qty 10

0

5

Husqvarna 539110311

PULLEY, IDLER

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539103433

HCS 1/2-13 x 3 1/4

$6.99

$

In Stock, only 4 left!

0

7

Husqvarna 539109554

WASHER 1/2 FLT

$

$

Not available

8

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 505287301

CLUTCH, 105 FT-LBS

$284.99

$

Usually ships in 3-10 days

0

10

Husqvarna 516011802

HITCH, BLK

$6.99

$

In Stock, Qty 15

0

11

Husqvarna 539114530

PULLEY, ENGINE
(Superseded to 587537401)

$26.99

$

In Stock, only 3 left!

0

$

$

Not available

13

Husqvarna 510246002

STOP, CLUTCH BLK

$27.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539109389

HCS 3/8-16 x 3 1/2

$5.99

$

In Stock, only 3 left!

0

15

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990208

RHSNB 5/16-18 x 1

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

19

Husqvarna 539976944

HCS 7/16-20 x 3 1/2
(Superseded to 581332804)

$7.99

$

In Stock, only 2 left!

0

20

Husqvarna 539110064

WASHER, CLUTCH
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

21

Husqvarna 539990669

HCS 5/16-18 x 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

22

Husqvarna 539976935

HCS 5/16-18 x 1 1/2

$

$

Not available

23

Husqvarna 539101362

HOSE, DRAIN

$47.99

$

Usually ships in 3-10 days

0

24

$7.49

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, only 1 left!

0

26

Husqvarna 539990362

SCREW 1/4-20 x 5/8 SLF TAP

$4.99

$

In Stock, Qty 12

0

27

Husqvarna 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 11

0

28

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0
