RZ 4222 F (967036501) - Husqvarna 42" Zero-Turn Mower (2011-12) MOWER DECK / CUTTING DECK Parts Diagram

42" Zero-Turn Mower

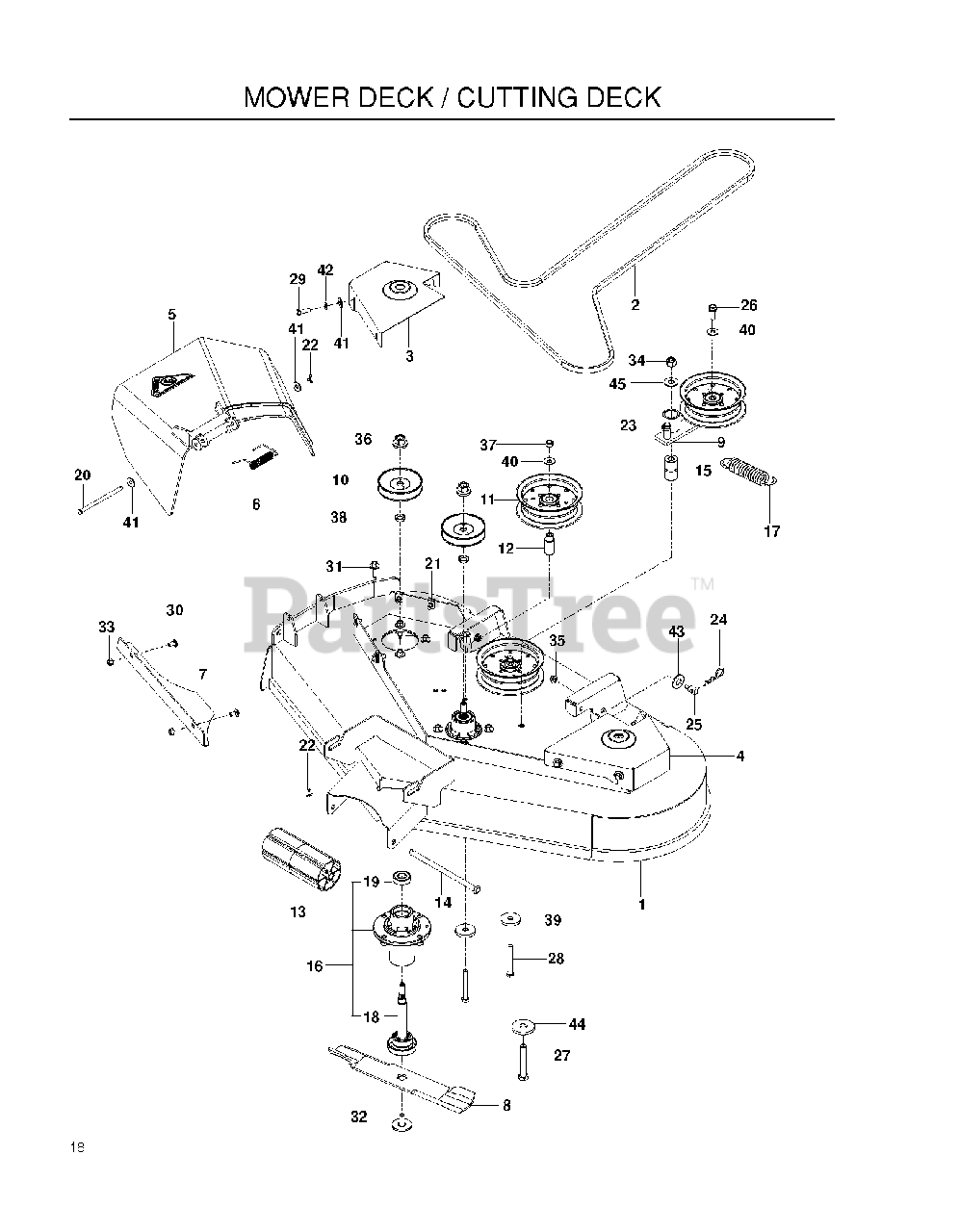

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 574761802

DECK SVC W/DECALS 42 RZ ORANGE

$

$

Not available

2

Husqvarna 539117245

V-BELT

$66.99

$

In Stock, Qty 5

0

3

Husqvarna 539112238

BELT SHIELD, RIGHT 42, ORG

$60.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539112240

BELT SHIELD, LEFT 42, ORG

$60.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539110731

DISCHARGE CHUTE 42"

$56.99

$

In Stock, only 3 left!

0

6

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 4 left!

0

7

Husqvarna 539112413

CONFINEMENT.PLATE.42".BLACK

$40.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112078

BLADE, 14 5/8"

$22.99

$

In Stock, Qty 10

0

9

Husqvarna 539112198

IDLER ARM

$121.99

$

Usually ships in 3-10 days

0

10

Husqvarna 525348501

PULLEY, MADREL 3.70 OP

$10.99

$

In Stock, only 1 left!

0

11

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539112169

IDLER BUSHING

$

$

Not available

13

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

14

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

15

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 3 left!

0

16

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$79.99

$

In Stock, Qty 20+

0

17

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

18

Husqvarna 539112056

GREASABLE MANDREL SHAFT
(Superseded to 532187291)

$

$

Not available

19

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

20

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

22

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

23

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

26

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

27

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

28

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

29

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 539107522

BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

36

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

37

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

39

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

40

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

43

Husqvarna 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

45

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0
