RZ 4219 BF (967176102) - Husqvarna 42" Zero-Turn Mower (2013-11) SEAT Parts Diagram

42" Zero-Turn Mower

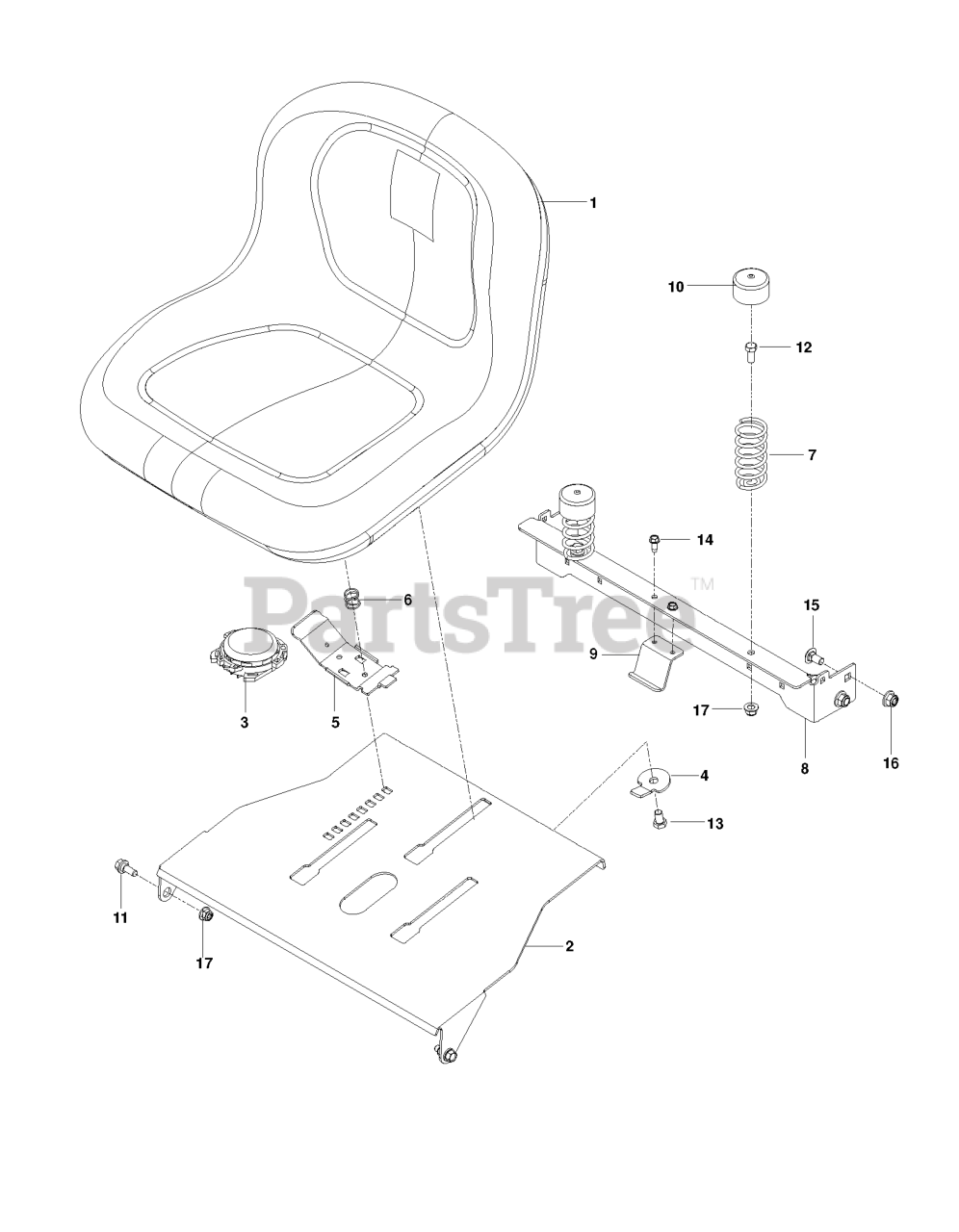

SEAT Parts Diagram

  • Title

1

Husqvarna 532439822

SEAT.TH150.MS498.GRY.HUSQ.TEX

$218.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574356302

PLATE, SEAT, ORG

$78.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539132140

SWITCH, SEAT N/C

$14.99

$

In Stock, only 2 left!

0

4

Husqvarna 574191002

STOP, SEAT, BLACK

$15.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK

$

$

Not available

6

Husqvarna 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539122632

SEAT SPRING

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 574356402

SEAT SUPPORT, REAR ORG

$42.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539108503

HCS 3/8-16 X 5/8 GR 5 ZD

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 525864502

HOLDING DEVICE, FUEL TANK, BLK

$12.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539119884

SPRING CAP

$

$

Not available

11

Husqvarna 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 539108503

HCS 3/8-16 X 5/8 GR 5 ZD

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

15

Husqvarna 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

17

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0
