RZ 4219 BF (966514801) - Husqvarna 42" Zero-Turn Mower (2010-01) Mowing Deck/ Cutting Deck Parts Diagram

42" Zero-Turn Mower

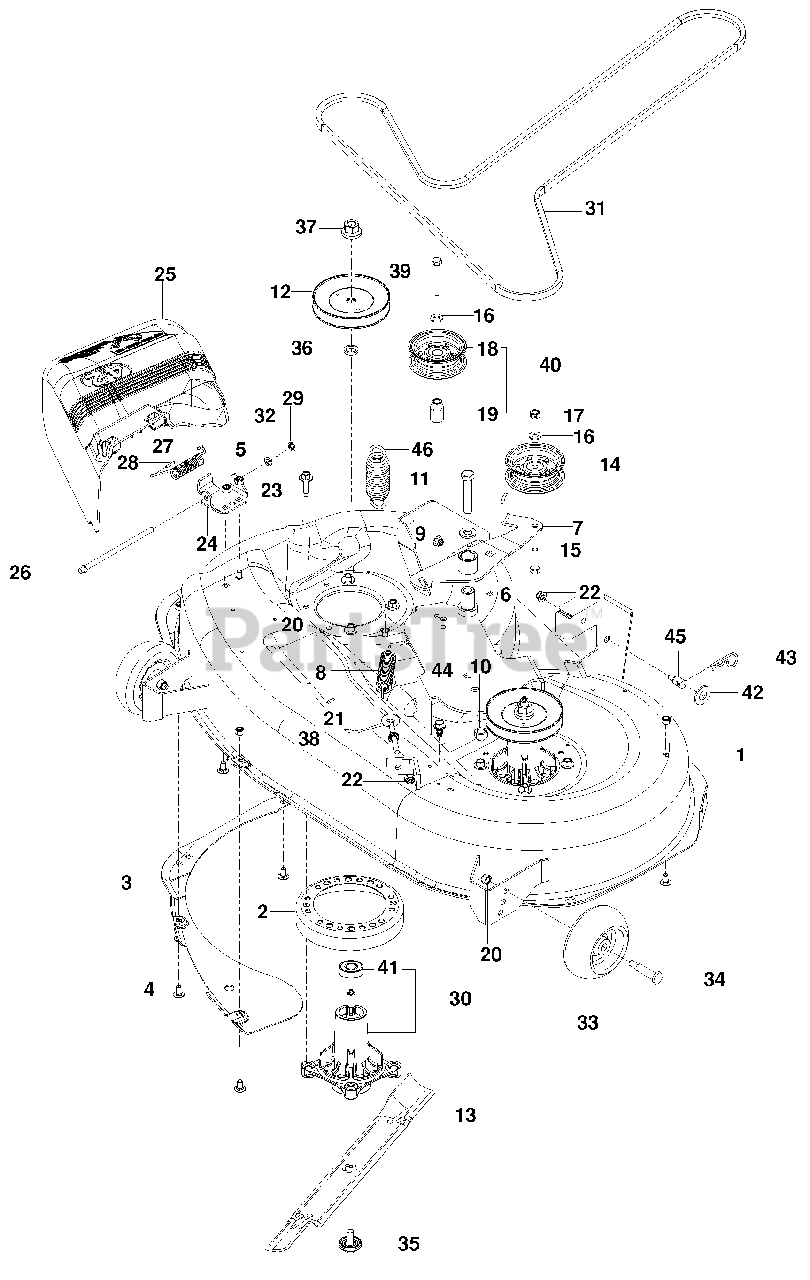

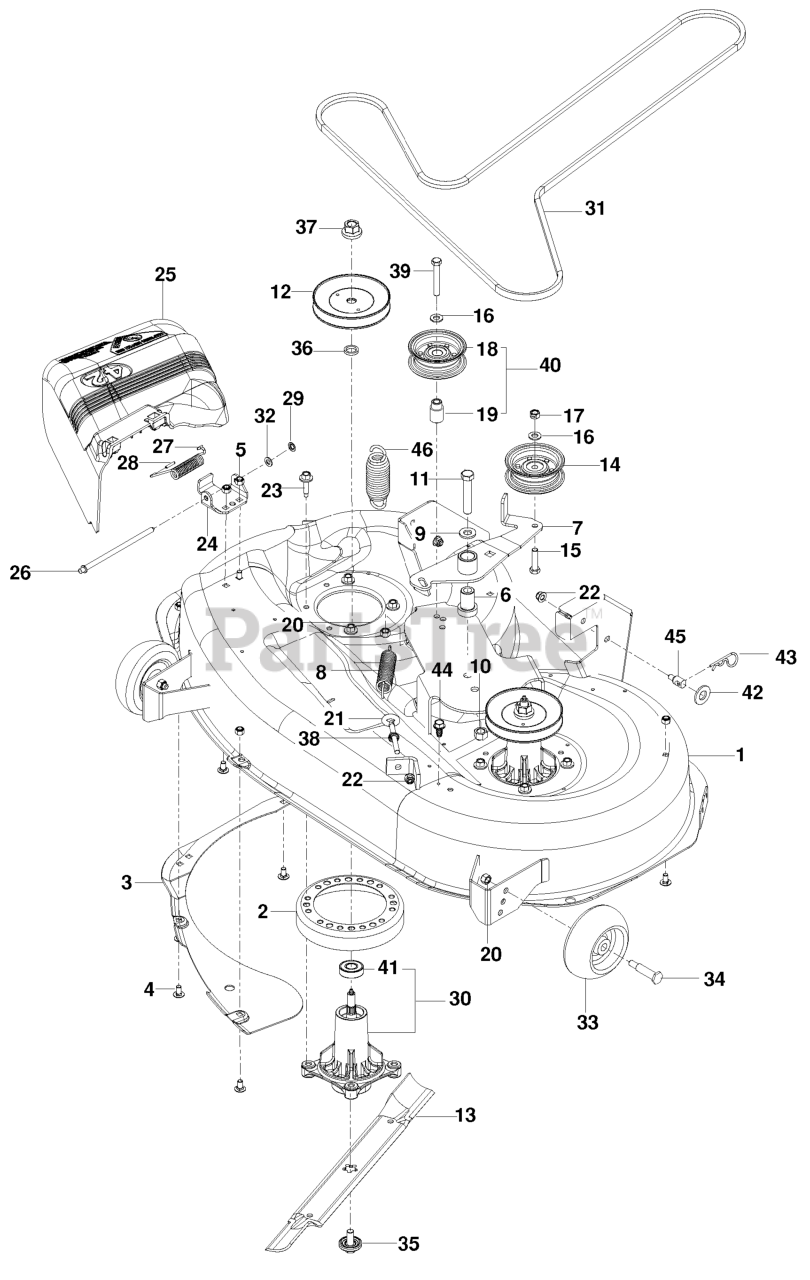

Mowing Deck/ Cutting Deck Parts Diagram

  • Title

1

Husqvarna 522744201

DECK w/ SAFETY DECALS

$3885.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539107518

STRIPPER, ROUND
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539110463

BAFFLE VORTEX
(Superseded to 532159770)

$

$

Not available

4

Husqvarna 539990799

RHSNB 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539101231

SPINDLE, IDLER

$13.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539110217

ARM, DECK IDLER

$

$

Not available

8

Husqvarna 539101977

SPRING, TRACTION

$17.99

$

In Stock, Qty 10

0

9

Husqvarna 539990250

WASHER SAE

$1.99

$

In Stock, only 2 left!

0

10

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 539101332

HCS 1/2-13 x 2 3/4

$5.99

$

In Stock, only 3 left!

0

12

Husqvarna 539110318

PULLEY, MANDREL

$12.99

$

In Stock, only 2 left!

0

13

Husqvarna 532134149

BLADE 42"
(Superseded to 594892701)

$

$

Not available

14

Husqvarna 539110316

PULLEY, DECK IDLER

$

$

Not available

15

Husqvarna 539990655

HCS 3/8-16 x 1 1/2

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990546

NUT 3/8-16 HEX CNTRLK

$

$

Not available

18

Husqvarna 539110080

PULLEY, IDLER

$

$

Not available

19

Husqvarna 539110081

BEARING, INSERT

$

$

Not available

20

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539115574

EYE BOLT 5/16 x 3 1/2

$

$

Not available

22

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

23

Husqvarna 539107630

SCREW 5/16-18 x WSHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

24

Husqvarna 532192557

BRACKET, DEFLECTOR

$9.49

$

In Stock, Qty 8

0

25

Husqvarna 532193108

SHIELD, DEFLECTOR
(Superseded to 532403004)

$44.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

27

Husqvarna 539110328

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

28

Husqvarna 539107627

CAP, SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539107626

PUSHNUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539112057

HOUSING, CUTTER
(Superseded to 587820301)

$56.99

$

In Stock, Qty 11

0

31

Husqvarna 522999901

BELT, DECK

$85.99

$

In Stock, only 1 left!

0

32

Husqvarna 539110331

WASHER 11/32 x 5/8 x 16
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

33

Husqvarna 539110289

WHEEL, GAUGE

$8.99

$

In Stock, only 2 left!

0

34

Husqvarna 539110222

SHOULDER BOLT
(Superseded to 532004898)

$

$

Not available

35

Husqvarna 532193003

BOLT WASHER ASSY

$8.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539107520

WASHER/SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 539107590

NUT 9/16 TOP CNTRLK
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

38

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990637

HCS 3/8-16 x 2 1/2

$1.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539110317

PULLEY ASSYBLY, IDLER

$

$

Not available

41

Husqvarna 539112050

BEARING

$7.49

$

In Stock, only 4 left!

0

42

Husqvarna 539976982

WASHER 5/8 FLT SAE

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539133027

SCREW 3/8-16 x 3/4, THD CUT

$0.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532195161

STUD w/ ANTI-ROTATE

$

$

Not available

46

Husqvarna 539118762

SPRING

$

$

Not available
