RZ 4219 (966809002) - Husqvarna 42" Zero-Turn Mower (2013-10) MOWER DECK / CUTTING DECK Parts Diagram

42" Zero-Turn Mower

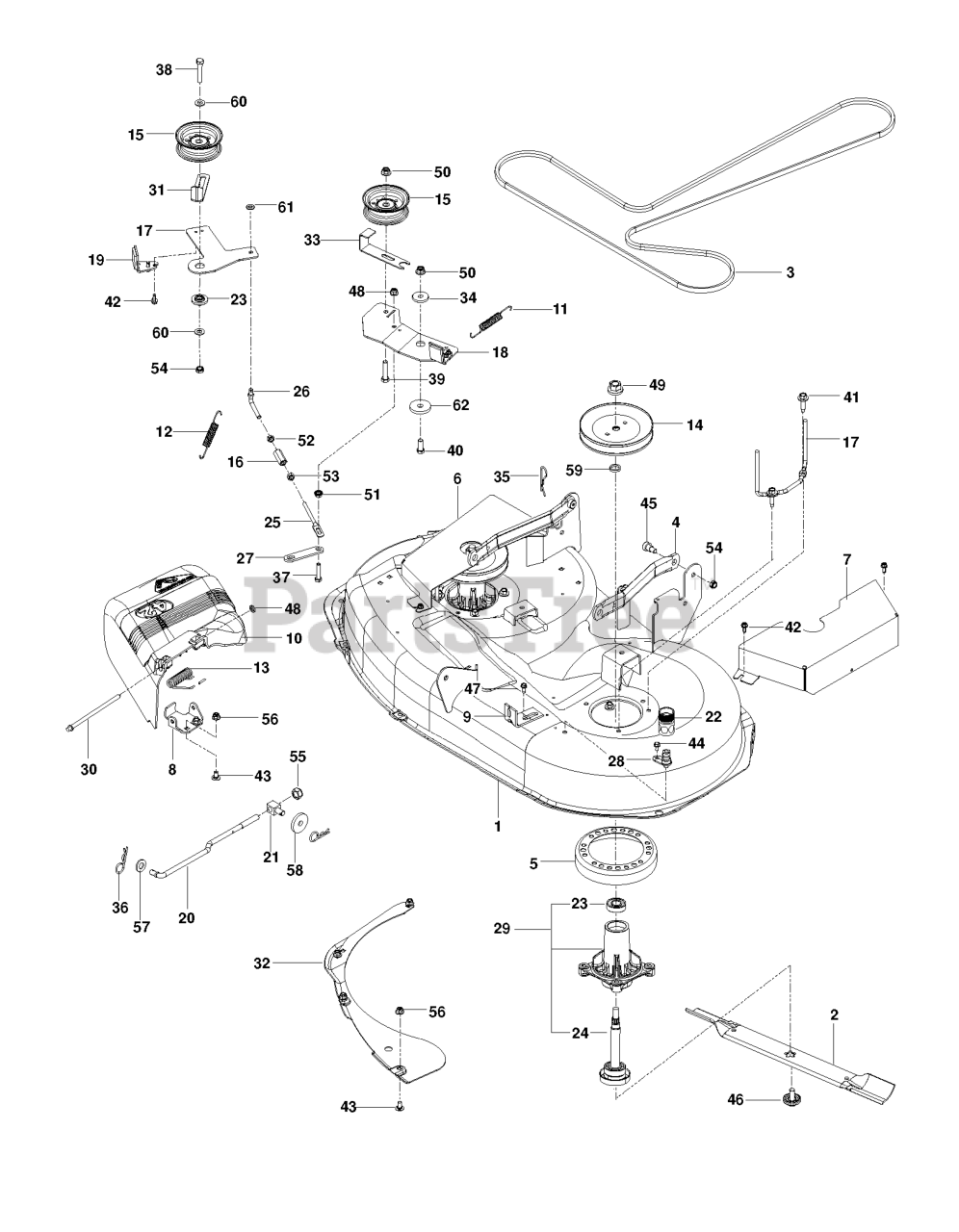

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 575699801

DECK.SVC W/DECALS 42" HTC RZ

Note: w / SAFETY DECALS

$

$

Not available

2

Husqvarna 532134149

BLADE.42".MULCH
(Superseded to 594892701)

$

$

Not available

3

Husqvarna 574173003

BELT, EL118

$66.99

$

In Stock, Qty 7

0

4

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

5

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 575754602

GUARD.RIGHT.BELT.42"BLACK

Note: RH

$102.99

$

Usually ships in 3-10 days

0

7

Husqvarna 575754502

GUARD.LEFT.BELT.42" BLACK

Note: LH

$79.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

9

Husqvarna 532417645

BRACKET.CLUTCH.CABLE

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532193108

DEFLECTOR 42
(Superseded to 532403004)

$44.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 7

0

12

Husqvarna 581542601

SPRING BRAKE RETURN 42 SZ

$

$

Not available

13

Husqvarna 539110328

SPRING, TORSION DEFLECTOR
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

14

Husqvarna 532195945

PULLEY.MANDREL.5.438.P

$14.99

$

In Stock, Qty 20+

0

15

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, only 3 left!

0

16

Husqvarna 532177968

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 3 left!

0

17

Husqvarna 574693302

ARM.BRAKE.42.BLACK

$24.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574694502

ARM.IDLER.BLACK

$24.99

$

Usually ships in 3-10 days

0

19

Husqvarna 529311801

ARM, LH BRAKE
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

20

Husqvarna 532195740

LINK LIFT SUSP. FRONT MOWER
(Superseded to 581506902)

$11.99

$

In Stock, Qty 16

0

21

Husqvarna 539114789

SWIVEL

$17.99

$

In Stock, only 2 left!

0

22

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 5

0

23

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 11

0

24

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

25

Husqvarna 581866301

LINK

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna 581866201

LINK SZ42 ADJ, PINNED END

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 581542701

PLATE.ATTACHMENT.CLUTCH.(2 2)
(Superseded to 584300001)

$145.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 10

0

29

Husqvarna 532192870

RB MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

30

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

31

Husqvarna 525851801

GUIDE, BELT

$13.99

$

In Stock, only 1 left!

0

32

Husqvarna 539110463

BAFFLE VORTEX 42
(Superseded to 532159770)

$

$

Not available

33

Husqvarna 577209101

KEEPER, BELT

$10.99

$

In Stock, only 1 left!

0

34

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

35

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

38

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

39

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 19

0

43

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 539990134

SCREW 3/8C X 3/4 HEX CAP

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

47

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

48

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

50

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

51

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

55

Husqvarna 573975201

NUT, 7/16-20 HEX NYLOC ZC

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

57

Husqvarna 819171713

WASHER STEEL

$3.99

$

In Stock, Qty 8

0

58

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

59

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

60

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

61

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 539102998

WASHER, FRICTION

$8.99

$

In Stock, Qty 8

0
