RZ 4219 (966809002) - Husqvarna 42" Zero-Turn Mower (2013-10) FRAME Parts Diagram

42" Zero-Turn Mower

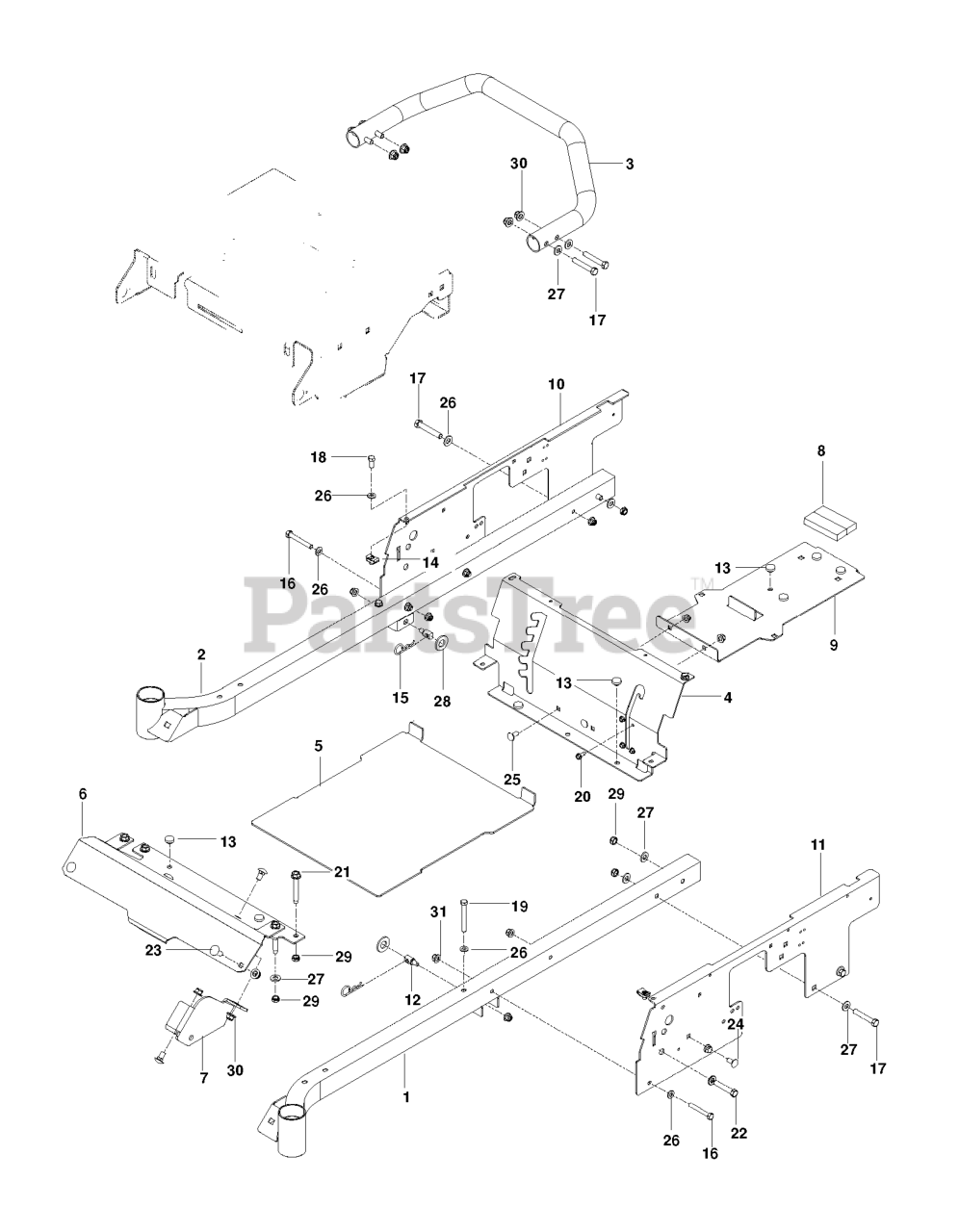

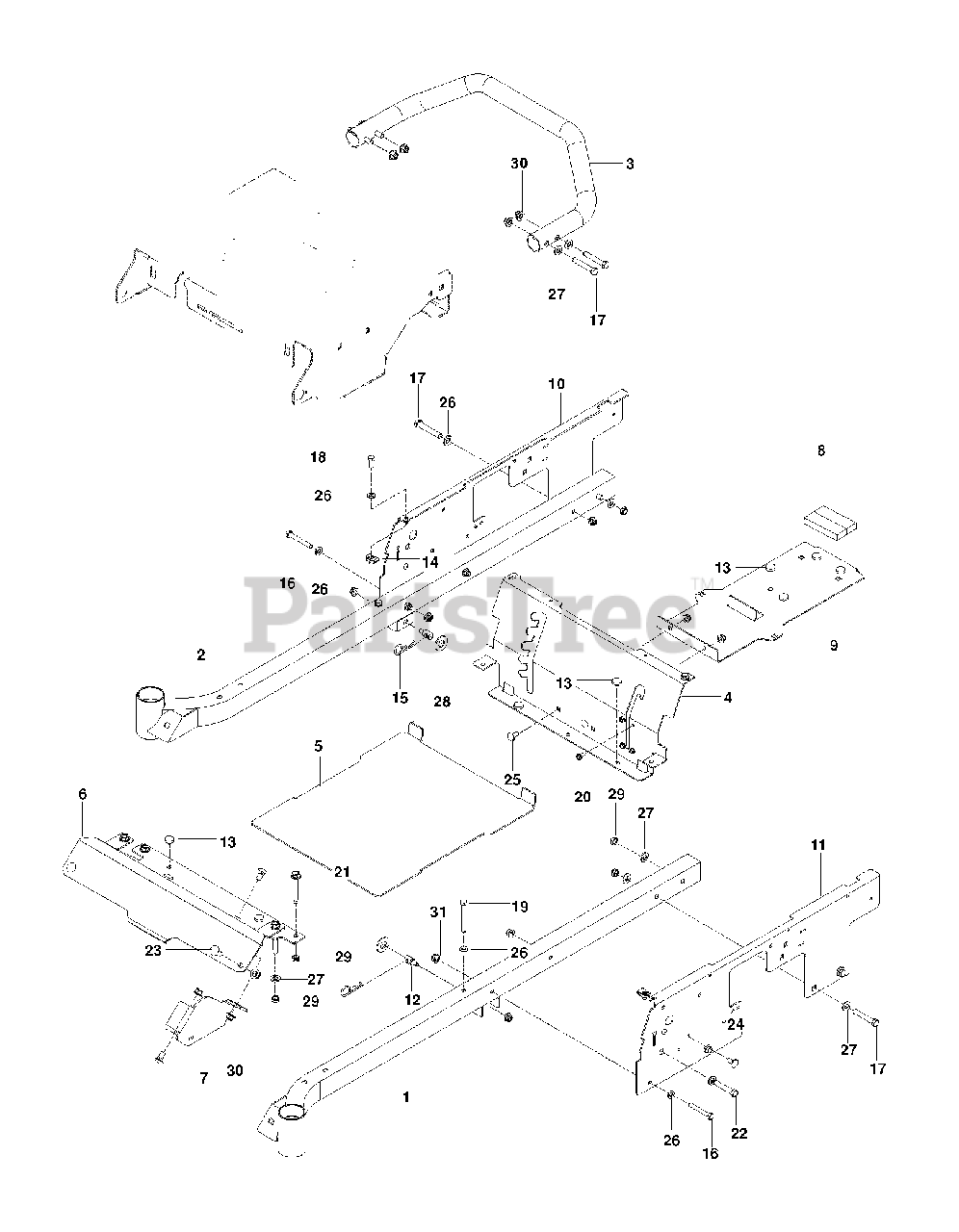

FRAME Parts Diagram

  • Title
1

Husqvarna 525454702

FRAME TUBE, LH, ORG

$182.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525454902

FRAME TUBE, RH, ORG

$182.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574354702

IMPACT BAR, ORG

$

$

Not available

4

Husqvarna 575661302

PANEL.SEAT.SUPPORT.ORANGE

$

$

Not available

5

Husqvarna 576414602

PAN, FLOOR W/DECALS, HUS

Note: W / Safety Decals

$

$

Not available

6

Husqvarna 574356002

FOOT REST, ORG

$94.99

$

Usually ships in 3-10 days

0

7

Husqvarna 525605502

BRACKET, FRONT DECK, BLK

$46.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539110290

FOAM STRIP, FUEL TANK

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 525798402

SUPPORT, TANK/BATT, BLK

$60.99

$

Usually ships in 3-10 days

0

10

Husqvarna 575328402

PLATE.RH.SIDE.ORANGE

$

$

Not available

11

Husqvarna 575328302

PLATE.LH.SIDE.ORANGE

$

$

Not available

12

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

13

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

14

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

15

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

16

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

20

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

21

Husqvarna 539111976

ENGINE BOLT, SPECIAL

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

23

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

24

Husqvarna 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

30

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

31

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0
