RZ 4216 CA (966503901) - Husqvarna 42" Zero-Turn Mower, CARB (2010-01) Wheel Tires Parts Diagram

42" Zero-Turn Mower, CARB

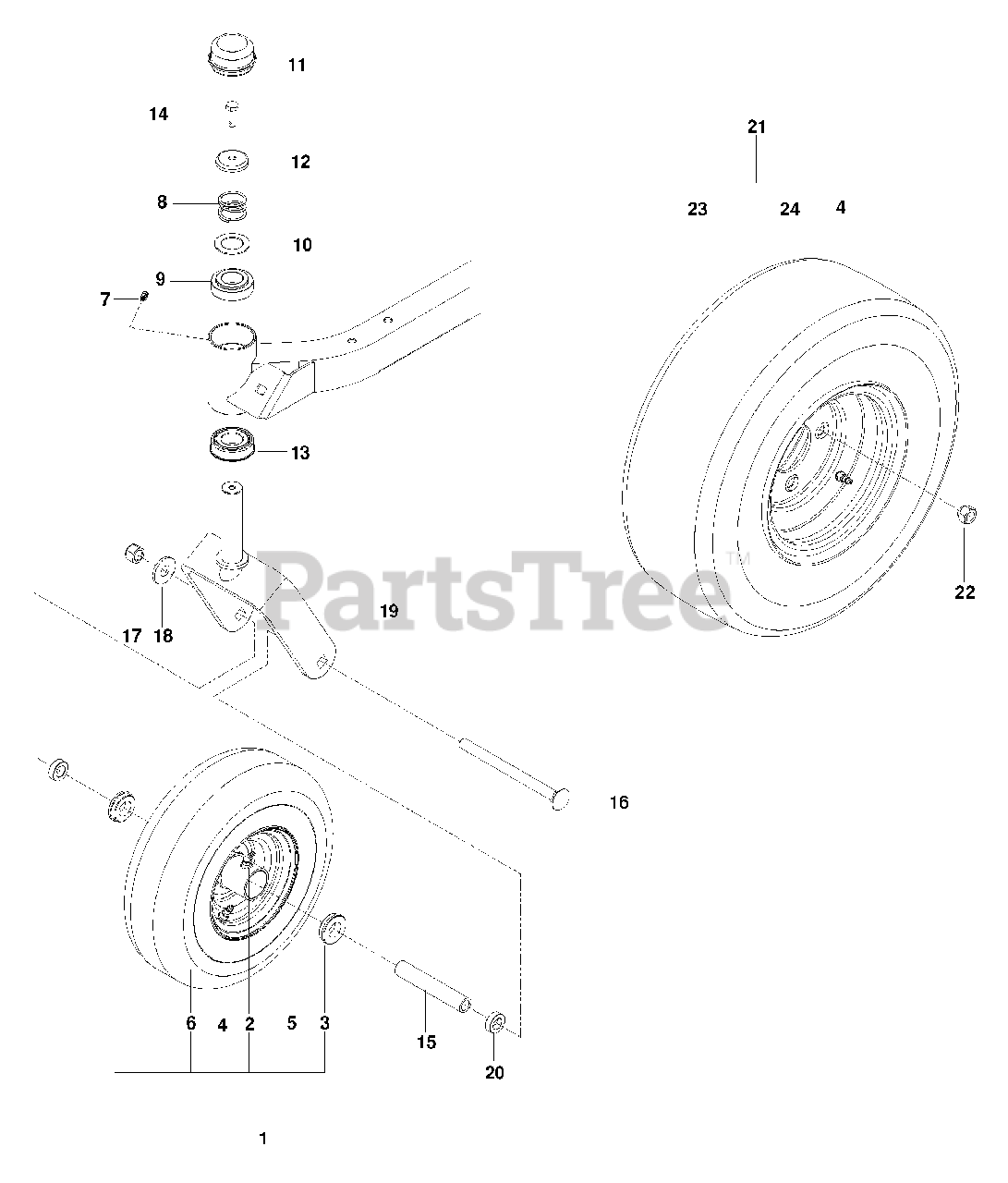

Wheel Tires Parts Diagram

  • Title

1

Husqvarna 516011901

CASTER TIRE ASSY

$

$

Not available

2

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

3

Husqvarna 539102484

BEARING, FLANGED

$5.99

$

In Stock, only 1 left!

0

4

Husqvarna 539912234

VALVE

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 539106994

RIM

$

$

Not available

6

Husqvarna 539114697

TIRE

$

$

Not available

7

Husqvarna 539115638

ZERK
(Superseded to 596623501)

$3.99

$

In Stock, only 4 left!

0

8

Husqvarna 539115747

SPRING, CASTER

$

$

Not available

9

Husqvarna 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539115675

WASHER

$

$

Not available

11

Husqvarna 539102535

CAP, GREASE
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539115749

PLUG, CASTER

$

$

Not available

13

Husqvarna 539112660

BEARING, FLANGED

$34.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539115566

HHB 5/16-18 x 1 NYLOC
(Superseded to 874950516)

$

$

Not available

15

Husqvarna 539105543

SPACER

$10.99

$

In Stock, only 2 left!

0

16

Husqvarna 539121159

RHSNB 1/2-13 x 6 1/2

$24.99

$

In Stock, only 2 left!

0

17

Husqvarna 539101331

NUT 1/2 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 539109554

WASHER 1/2 FLAT

$

$

Not available

19

Husqvarna 510186501

YOKE, CASTER
(Superseded to 510186505)

$109.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539114805

SPACER 5/16

$12.99

$

In Stock, Qty 8

0

21

Husqvarna 574383701

WHEEL ASSY REAR
(Superseded to 581197901)

$

$

Not available

22

Husqvarna 539101173

NUT 1/2 LUG

$

$

Not available

23

Husqvarna 539117555

TIRE 4 PLY 18 x 7.5 x 8
(Superseded to 539105535)

$206.99

$

Usually ships in 3-10 days

0

24

Husqvarna 574383601

RIM

$46.99

$

Usually ships in 3-10 days

0
