RZ 4216 (966612401) - Husqvarna 42" Zero-Turn Mower (2012-02) ENGINE PLATE Parts Diagram

42" Zero-Turn Mower

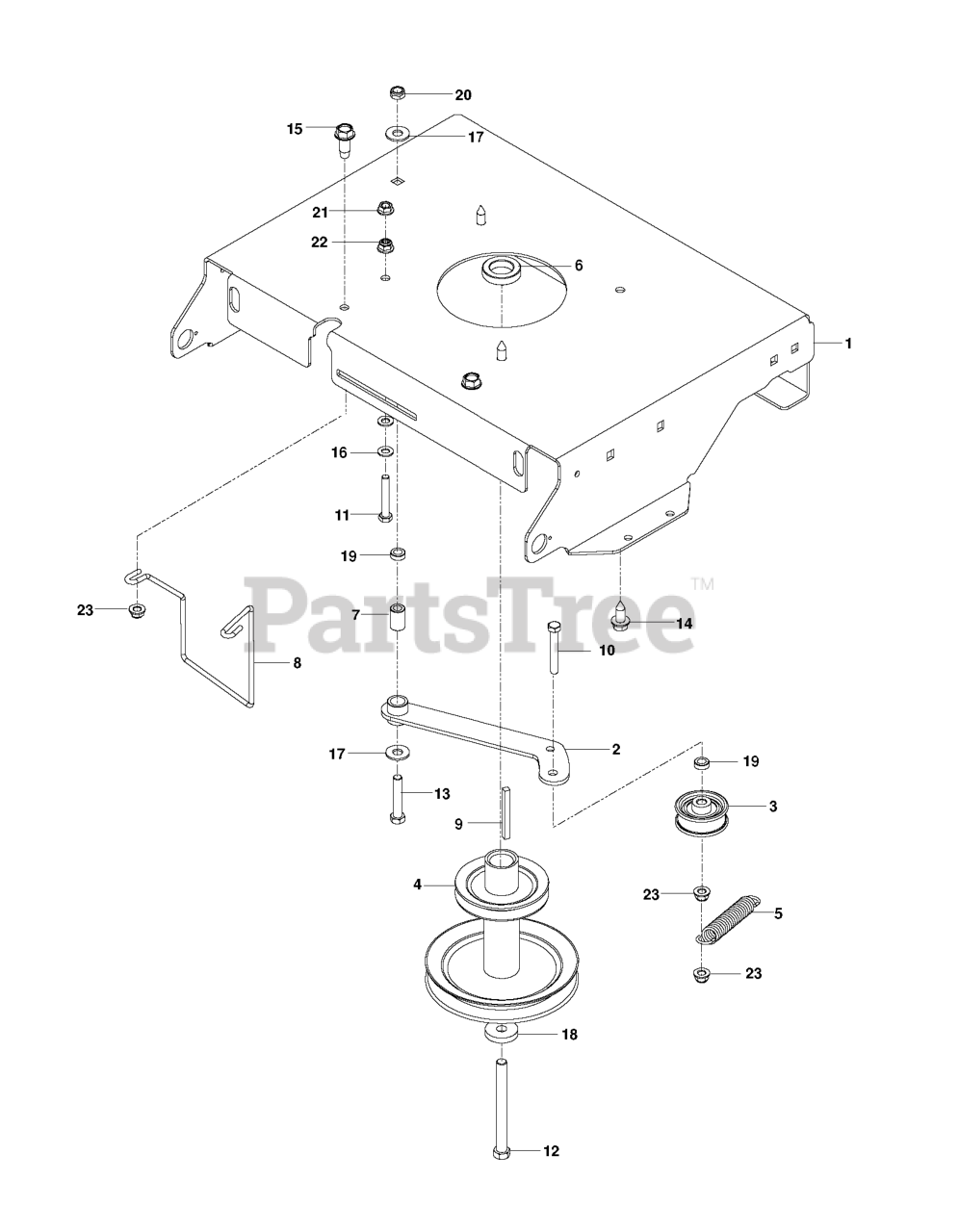

ENGINE PLATE Parts Diagram

  • Title
5

Husqvarna 539116350

SPRING - 3.50

$9.49

$

In Stock, only 1 left!

0

1

Husqvarna 578156302

PLATE.ENGINE.ORG

$

$

Not available

15

Husqvarna 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

8

Husqvarna 581770001

KEEPER.BELT.ENGINE.42.SZ

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

12

Husqvarna 574882801

HCS 7/16-20 X 4 GR5 ZD

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574382001

PULLEY, ENGINE 6.5

$145.99

$

Usually ships in 3-10 days

0

$9.99

$

In Stock, only 1 left!

0

22

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

16

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 17

0

14

Husqvarna 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 19

0

2

Husqvarna 574497504

!DLER ARM WLDMNT, BLACK

$79.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539917033

KEY 1/4 SQ X 2-1/2

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 15

0

10

Husqvarna 539101350

TAPBOLT, 3/8C X 3

$6.49

$

In Stock, only 2 left!

0

13

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

3

Husqvarna 539120812

PULLEY IDLER

$26.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 1 left!

0

Husqvarna 576014301

PIGTAIL, B&S 19.5HP

Note: NEED VARIES BY MODEL

$

$

Not available

18

Husqvarna 539115546

WASHER .43X1.38X.25

$4.99

$

In Stock, only 3 left!

0
