RZ 4216 (966455801) - Husqvarna 42" Zero-Turn Mower (2009-11) Frame Parts Diagram

42" Zero-Turn Mower

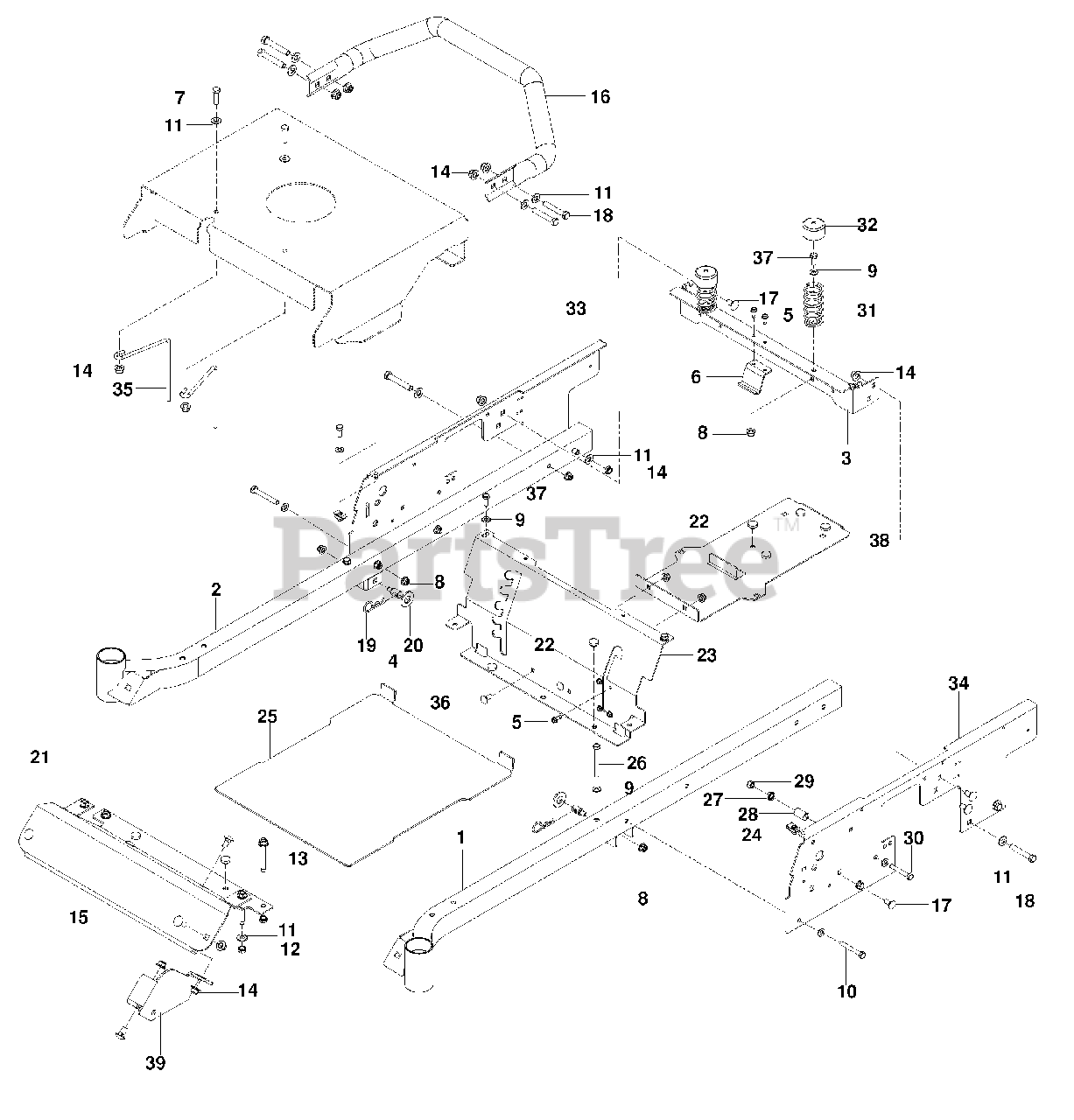

Frame Parts Diagram

  • Title

1

Husqvarna 525454702

FRAME TUBE, LH

$182.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525454902

FRAME TUBE, RH

$182.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574356402

SEAT SUPPORT, REAR

$42.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532195161

STUD w/ ANTI-ROTATE

$

$

Not available

5

Husqvarna 539990362

SCREW 1/4-20 x 5/8 SLF TAP

$4.99

$

In Stock, Qty 12

0

6

Husqvarna 525864502

BRACKET, FUEL TANK

$12.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539976941

HCS 3/8-16 x 1 1/4

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

9

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 17

0

10

Husqvarna 539976938

HCS 5/16-18 x 2 1/4

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

13

Husqvarna 539111976

BOLT 3/8-16 x 25/8 THD FRM

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 521996501

NUT 3/8-16 FLANGE NYLOC

$

$

Not available

15

Husqvarna 539990645

RHSNB 3/8-16 x 1

$

$

Not available

16

Husqvarna 574354702

GUARD, REAR

$

$

Not available

17

Husqvarna 539111785

RHSNB 3/8-16 x 3/4

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990629

HCS 3/8-16 x 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539976989

HAIRPIN

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539976982

WASHER 5/ SAE FLT

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 574356002

FOOT REST

$94.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

23

Husqvarna 575661302

PANEL, SEAT SUPPORT

$

$

Not available

24

Husqvarna 539104763

U TYPE RETAINER

$6.49

$

In Stock, Qty 12

0

25

Husqvarna 574356202

FOOT PLATE

$

$

Not available

26

Husqvarna 539101721

HCS 5/16-18 x 2 3/4

$4.99

$

In Stock, Qty 7

0

27

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539119087

BUSHING

$9.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539976937

HCS 5/16-18 x 2

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539122632

SPRING, SEAT

$9.49

$

In Stock, only 2 left!

0

32

Husqvarna 539119884

CAP, SPRING

$

$

Not available

33

Husqvarna 525813802

PLATE, RH

$

$

Not available

34

Husqvarna 525813902

PLATE, LH

$

$

Not available

35

Husqvarna 574172901

GUIDE, BELT

$

$

Not available

36

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539976934

HCS 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 525798402

SUPPORT, TANK

$60.99

$

Usually ships in 3-10 days

0

39

Husqvarna 525605502

BRACKET, FRONT DECK

$46.99

$

Usually ships in 3-10 days

0
