RZ 4216 (966455801) - Husqvarna 42" Zero-Turn Mower (2009-11) Engine Plate Parts Diagram

42" Zero-Turn Mower

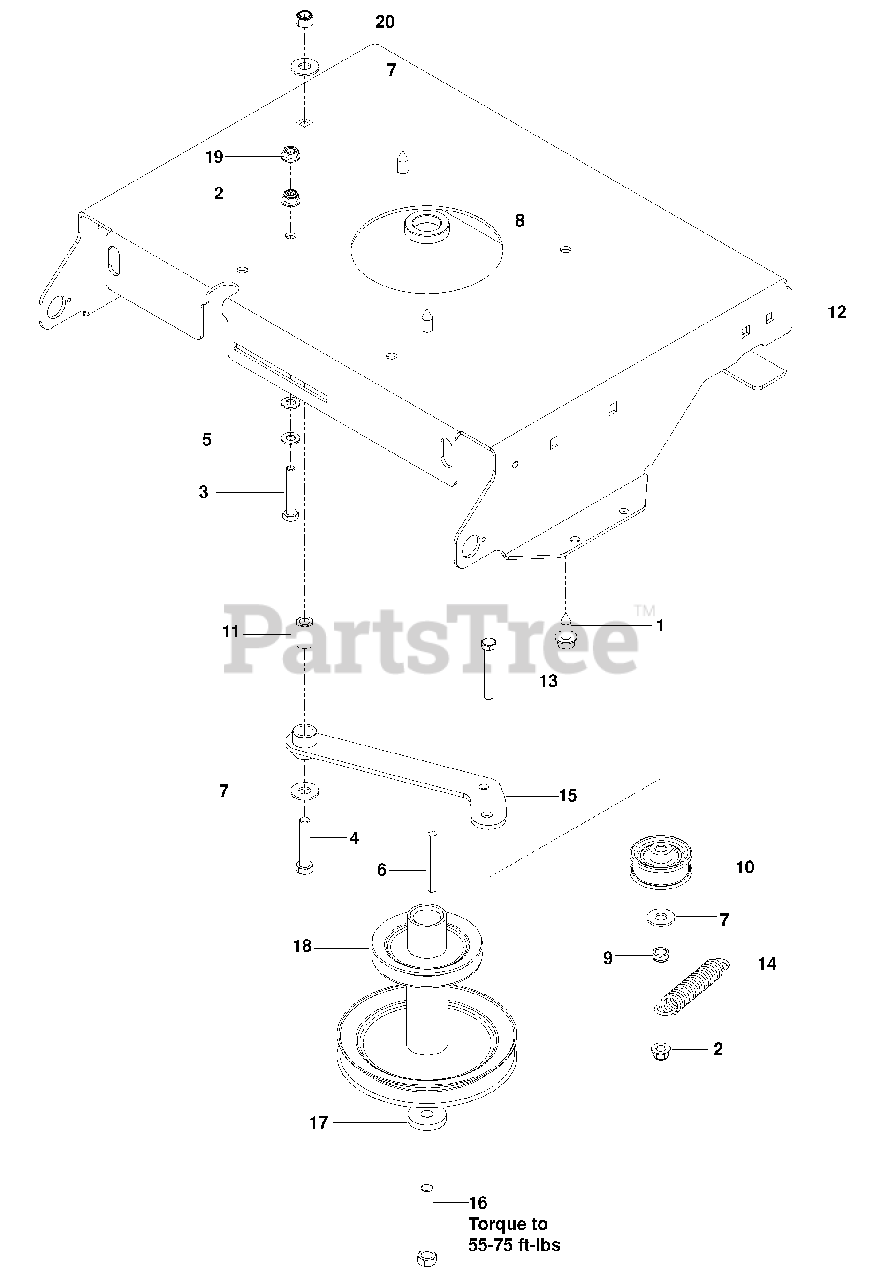

Engine Plate Parts Diagram

  • Title

1

Husqvarna 532120616

HHFS 3/8-16 x 1 THD FRM
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

2

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

3

Husqvarna 539976937

HCS 5/16-18 x 2

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 10

0

5

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539917033

KEY 1/4 SQ x 2 1/2 LG

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539114387

SPACER

$9.99

$

In Stock, only 1 left!

0

9

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

10

Husqvarna 539120812

PULLEY, IDLER

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539115270

BUSHING, METAL

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 574355802

PLATE, ENGINE

$132.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976938

HCS 5/16-18 x 2 1/4

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 539116350

SPRING 3 1/2

$9.49

$

In Stock, only 1 left!

0

15

Husqvarna 574497504

IDLER ARM

$79.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539923388

HCS 7/16-20 x 3

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539115546

WASHER

$4.99

$

In Stock, only 3 left!

0

18

Husqvarna 574382001

PULLEY, ENGINE

$145.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0
