RZ 3019 BF (966582101) - Husqvarna 30" Zero-Turn Mower (2010-03) 30" Deck Parts Diagram

30" Zero-Turn Mower

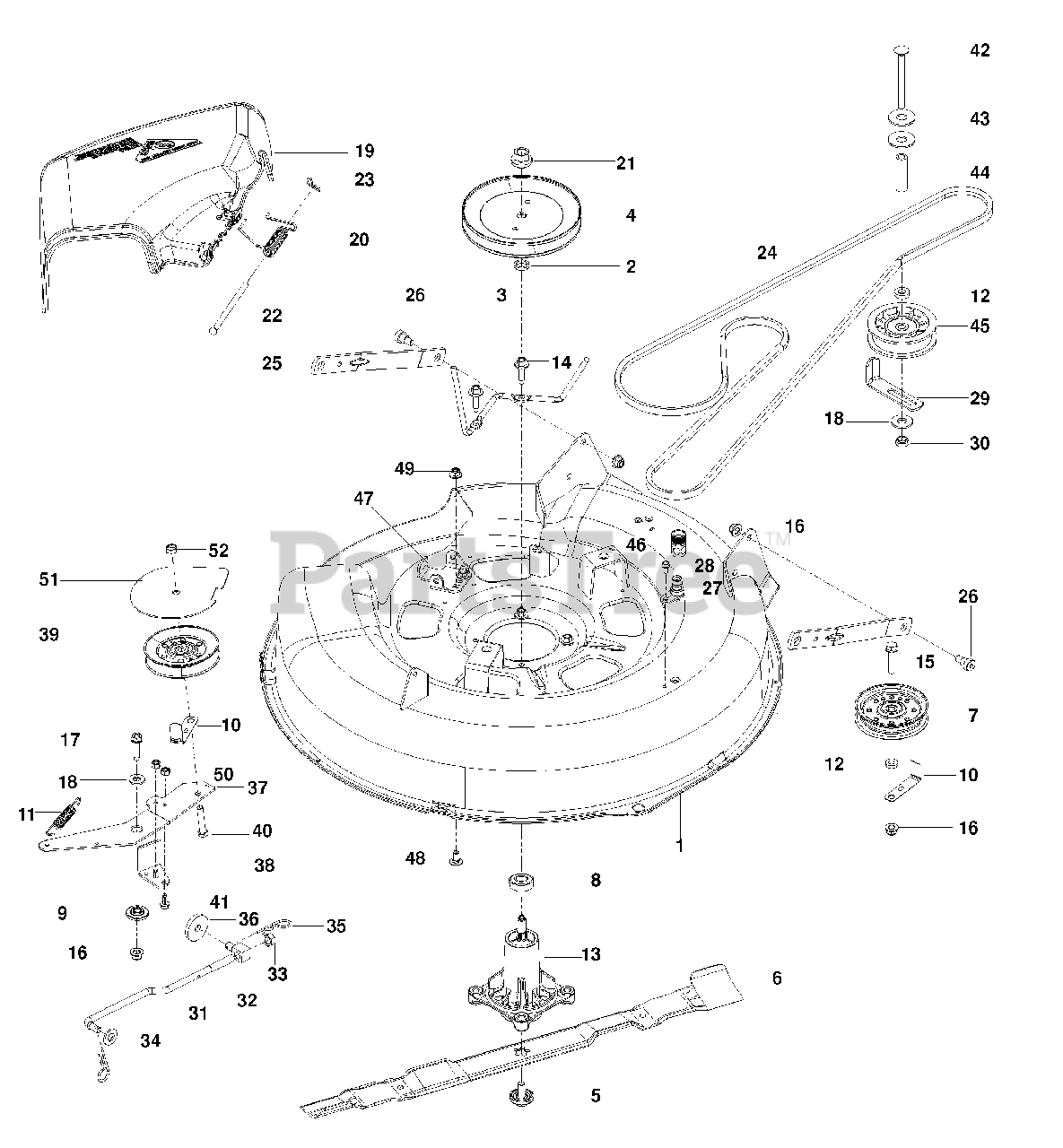

30" Deck Parts Diagram

  • Title
1

Husqvarna 527290801

DECK w/ DECALS ORG
(Superseded to 574453501)

$

$

Not available

2

Husqvarna 539107520

WASHER/SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

3

Husqvarna 532400140

KEEPER, BELT

$53.99

$

In Stock, only 1 left!

0

4

Husqvarna 532199791

PULLEY, MANDREL

$31.99

$

In Stock, only 2 left!

0

5

Husqvarna 532193003

BOLT/WASHER ASSY

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532419274

BLADE, MOWER/MULCH

$34.99

$

In Stock, only 1 left!

0

7

Husqvarna 532175820

PULLEY, IDLER

$

$

Not available

8

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

9

Husqvarna 532199092

SPACER RETAINER

$6.99

$

In Stock, Qty 11

0

10

Husqvarna 529311701

KEEPER, BELT

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 7

0

12

Husqvarna 539109562

WASHER 3/8 x 3/4

$4.99

$

In Stock, Qty 15

0

13

Husqvarna 539112057

MANDREL ASSY
(Superseded to 587820301)

$56.99

$

In Stock, Qty 18

0

14

Husqvarna 539107630

SCREW 5/16-18 WASHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990701

BOLT 3/8-16 x 1 3/4 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 521996501

NUT 3/8-16 FLANGE NYLOC

$

$

Not available

17

Husqvarna 539110025

BOLT 3/8-16 x 1 1/2 THD FRM

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990517

WASHER 3/8 FLT STD

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532417344

CHUTE, DISCHARGE

$53.99

$

In Stock, only 1 left!

0

20

Husqvarna 539107609

SPRING, TORSION

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 539107590

NUT 9/16 TOP CENTER LOCK
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

22

Husqvarna 539110736

PIN, CLEVIS

$3.49

$

Usually ships in 3-10 days

0

23

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 574173002

BELT, DECK

$66.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532195185

ARM, DECK SUSPENSION
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

26

Husqvarna 539113621

BOLT 3/8-16 x 3/8 SKT HD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532415598

WASHOUT PORT

$8.99

$

In Stock, Qty 12

0

28

Husqvarna 539108461

BOLT 1/4-20 x 1/2 HWST

$4.99

$

In Stock, Qty 6

0

29

Husqvarna 525851801

GUIDE, BELT

$13.99

$

In Stock, only 1 left!

0

30

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

31

Husqvarna 532195740

LINK, SUSPENSION
(Superseded to 581506902)

$11.99

$

In Stock, Qty 16

0

$17.99

$

In Stock, only 2 left!

0

33

Husqvarna 573975201

NUT 7/16-20 HEX NYLOC

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990250

WASHER 1/2 SAE

$1.99

$

In Stock, only 2 left!

0

35

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539106504

WASHER 1 3/4 x 1/4 HEAVY

$

$

Not available

37

Husqvarna 574172804

ARM, IDLER

$36.99

$

Usually ships in 3-10 days

0

38

Husqvarna 529311801

ARM, LH BRAKE
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

39

Husqvarna 532173902

IDLER V-GROOVE
(Superseded to 532146763)

$

$

Not available

40

Husqvarna 539990655

HCS 3/8-16 x 1 1/2

$4.99

$

In Stock, only 2 left!

0

41

Husqvarna 539107631

SCREW 1/4-20 x 5/8 THDROLL
(Superseded to 532137729)

$4.99

$

In Stock, Qty 19

0

42

Husqvarna 525848601

RHSNB 3/8-16 x 4

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539104864

WASHER 7/16 FLT
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 525848801

SPACER .390 ID x 2 1/4

$8.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539110311

PULLEY, DECK IDLER

$17.99

$

In Stock, Qty 20+

0

46

Husqvarna 532416405

COUPLING, QUICK DISC

$10.99

$

In Stock, Qty 6

0

47

Husqvarna 532192557

BRACKET, DEFLECTOR

$9.49

$

In Stock, Qty 5

0

48

Husqvarna 539990799

RHSNB 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

50

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

51

Husqvarna 573970402

COVER, PULLEY

$21.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0
