RZ 3019 (966042901) - Husqvarna 30" Zero-Turn Mower (2009-04) 30" Deck Parts Diagram

30" Zero-Turn Mower

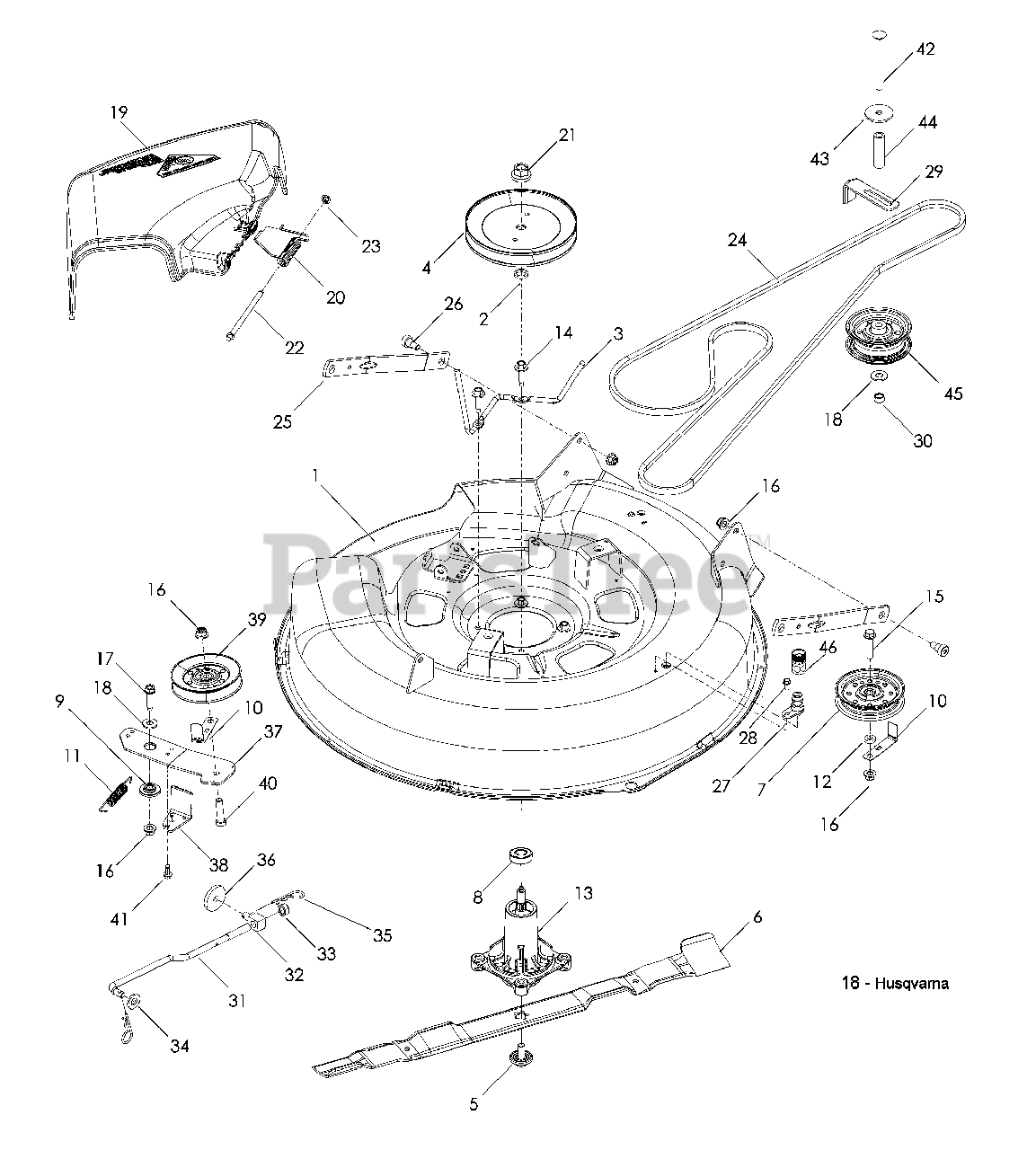

30" Deck Parts Diagram

  • Title

1

Husqvarna 527290801

DECK w/ DECALS
(Superseded to 574453501)

$

$

Not available

2

Husqvarna 539107520

WASHER/SPACER
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 529311601

KEEPER, BELT
(Superseded to 532400140)

$53.99

$

In Stock, only 1 left!

0

4

Husqvarna 532416877

PULLEY, MANDREL
(Superseded to 525568001)

$34.99

$

In Stock, only 1 left!

0

5

Husqvarna 532193003

BOLT/WASHER ASSM

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 777419274

BLADE MOWER/MULCH
(Superseded to 532419274)

$34.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532175820

PULLEY, IDLER

$

$

Not available

8

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

9

Husqvarna 532199092

SPACER RETAINER

$6.99

$

In Stock, Qty 12

0

10

Husqvarna 529311701

KEEPER, BELT

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 8

0

12

Husqvarna 539109562

WASHER 3/8 x ¾

$4.99

$

In Stock, Qty 15

0

13

Husqvarna 539112057

MANDREL ASSM
(Superseded to 587820301)

$56.99

$

In Stock, Qty 20+

0

14

Husqvarna 539107630

SCREW 5/16-18 WASHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990701

BOLT 3/8-16 x 1 ¾ WHIZLK

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 521996501

NUT 3/8-16 FLANGE NYLOC

$

$

Not available

17

Husqvarna 539110025

BOLT 3/8-16 x 1½ THD FRM

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532417344

CHUTE, DISCHARGE

$53.99

$

In Stock, only 1 left!

0

20

Husqvarna 539107609

SPRING, TORSION

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 539107590

NUT 9/16 TOP CENTER LOCK
(Superseded to 596134801)

$4.99

$

In Stock, Qty 19

0

22

Husqvarna 532121980

ROD, HINGE
(Superseded to 583383801)

$

$

Not available

23

Husqvarna 539107626

NUT 5/ PUSH
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539110413

BELT, DECK

$

$

Not available

25

Husqvarna 525567801

ARM, DECK SUSPENSION
(Superseded to 532418863)

$20.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539113621

BOLT 3/8-16 x 3/8 SKT HD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532415598

WASHOUT PORT

$8.99

$

In Stock, Qty 14

0

28

Husqvarna 539108461

BOLT ¼-20 x ½ HWST

$4.99

$

In Stock, Qty 7

0

29

Husqvarna 525851801

GUIDE, BELT

$13.99

$

In Stock, only 1 left!

0

30

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532195740

LINK, SUSPENSION
(Superseded to 581506902)

$11.99

$

In Stock, Qty 20+

0

32

Husqvarna 539114789

SWIVEL

$17.99

$

In Stock, only 2 left!

0

33

Husqvarna 539119124

NUT 7/16-14 HEX NYLOC

$

$

Not available

34

Husqvarna 539990250

WASHER ½ SAE

$1.99

$

In Stock, only 2 left!

0

35

Husqvarna 539976989

HAIRPIN

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539106504

WASHER 1¾ x ¼ HEAVY

$

$

Not available

37

Husqvarna 525821602

ARM, IDLER

$21.99

$

Usually ships in 3-10 days

0

38

Husqvarna 529311801

ARM, LH BRAKE
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

39

Husqvarna 532173902

IDLER V-GROOVE
(Superseded to 532146763)

$

$

Not available

40

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 2 left!

0

41

Husqvarna 539107631

SCREW ¼-20 x 5/8 THDROLL
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 525848601

RHSNB 3/8-16 x 4

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539111897

WASHER 3/8 SPECIAL

$

$

Not available

44

Husqvarna 525848801

SPACER .390 ID x 2¼

$8.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539110316

PULLEY, DECK IDLER

$

$

Not available

46

Husqvarna 532416405

COUPLING, QUICK DISC

$10.99

$

In Stock, Qty 7

0
