RZ 3016 CA (966612302) - Husqvarna 30" Zero-Turn Mower, CARB (2013-12) IGNITION SYSTEM Parts Diagram

30" Zero-Turn Mower, CARB

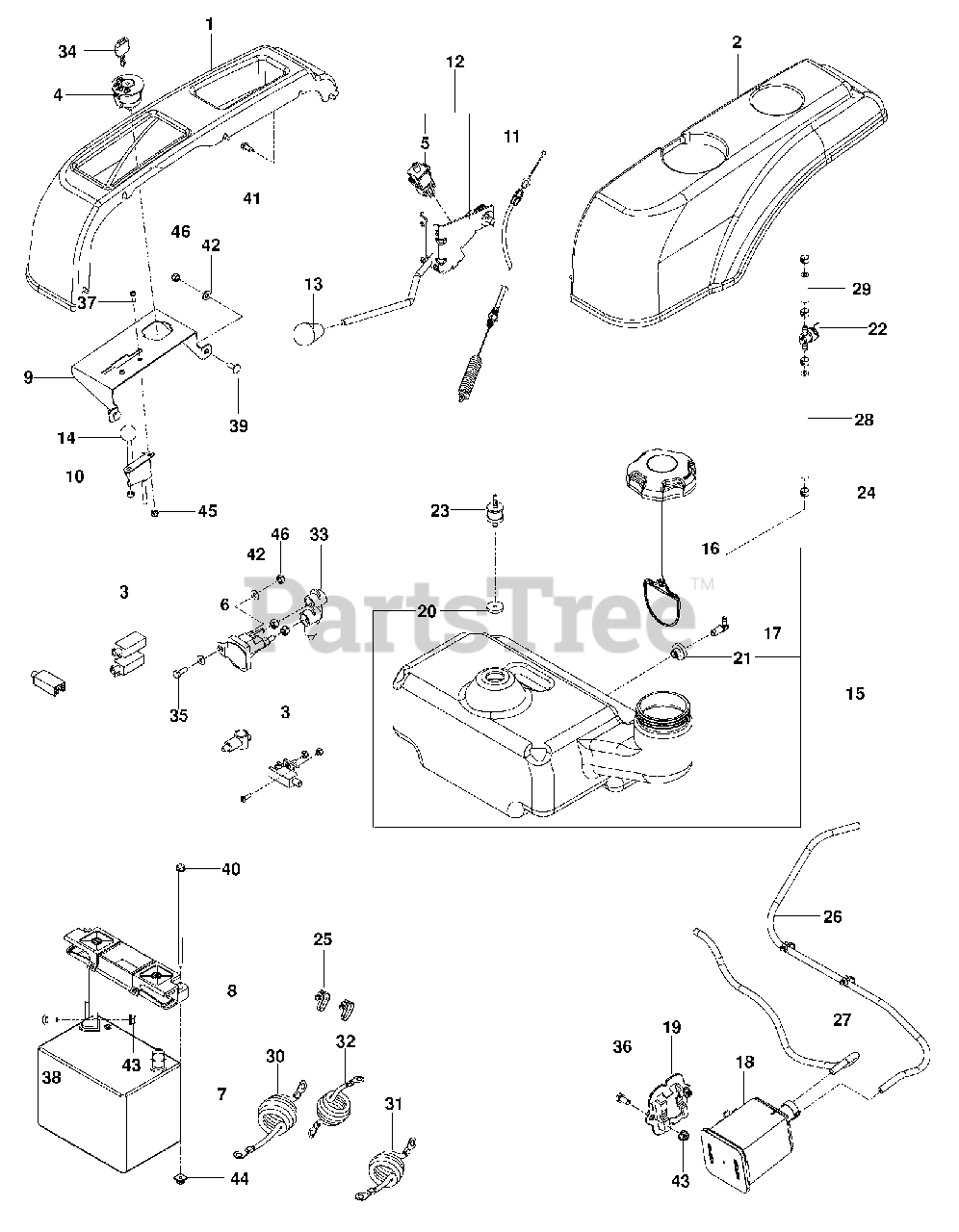

IGNITION SYSTEM Parts Diagram

  • Title

1

Husqvarna 525594701

FENDER, RZ 30/38 RT

$

$

Not available

2

Husqvarna 525594702

FENDER, RZ 30/38 LT

$

$

Not available

3

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 8

0

5

Husqvarna 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$22.99

$

In Stock, Qty 9

0

6

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 20+

0

7

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

8

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

9

Husqvarna 525598601

MOUNT, CONTROLS, BLK

$54.99

$

Usually ships in 3-10 days

0

10

Husqvarna 585974901

CABLE.THROTTLE.20"

$31.99

$

Usually ships in 3-10 days

0

11

Husqvarna 585053801

CABLE-CLUTCH ENGAGE

$44.99

$

Usually ships in 3-10 days

0

12

Husqvarna 585057901

CLUTCH.ENGAGE.ASSEM.W/CABLE

$66.99

$

In Stock, only 1 left!

0

13

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 7

0

14

Husqvarna 539133049

KNOB.ROUND.BALL.BLACK

$18.99

$

Usually ships in 3-10 days

0

15

Husqvarna 576646403

FUEL TANK ASM SMALL

$193.99

$

Usually ships in 3-10 days

0

16

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, Qty 5

0

18

Husqvarna 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

19

Husqvarna 575242701

BRACKET, CANISTER

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 10

0

21

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 5

0

22

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

23

Husqvarna 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 16

0

24

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

25

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 576660601

HOSE, VAPOR 3/16 X 39"

$

$

Not available

27

Husqvarna 574521305

HOSE, FUEL, 3/16" X 20"

$11.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539115736

HOSE 1/4 X 8

$6.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539121486

HOSE 1/4 X 2"

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539104974

POST.CABLE LONG

$

$

Not available

31

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$10.99

$

In Stock, only 2 left!

0

32

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 9

0

35

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539108392

HCS 5/16-18 X 5/8 GR 5 ZD
(Superseded to 596031601)

$3.99

$

In Stock, only 3 left!

0

37

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

38

Husqvarna 872140506

BOLT 5/16-18 X3/4 ZN/YEL GR 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 872110406

BOLT
(Superseded to 582735501)

$7.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

41

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

42

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

43

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

44

Husqvarna 539107629

PUSH NUT-NYLON

$4.99

$

In Stock, Qty 7

0

45

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

46

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

Husqvarna 574658201

HARNESS, WIRING

Note: NOT SHOWN

$148.99

$

Usually ships in 3-10 days

0

Husqvarna 539110290

FOAM STRIP, FUEL TANK

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0
