RZ 3016 CA (966612302) - Husqvarna 30" Zero-Turn Mower, CARB (2011-03) STEERING Parts Diagram

30" Zero-Turn Mower, CARB

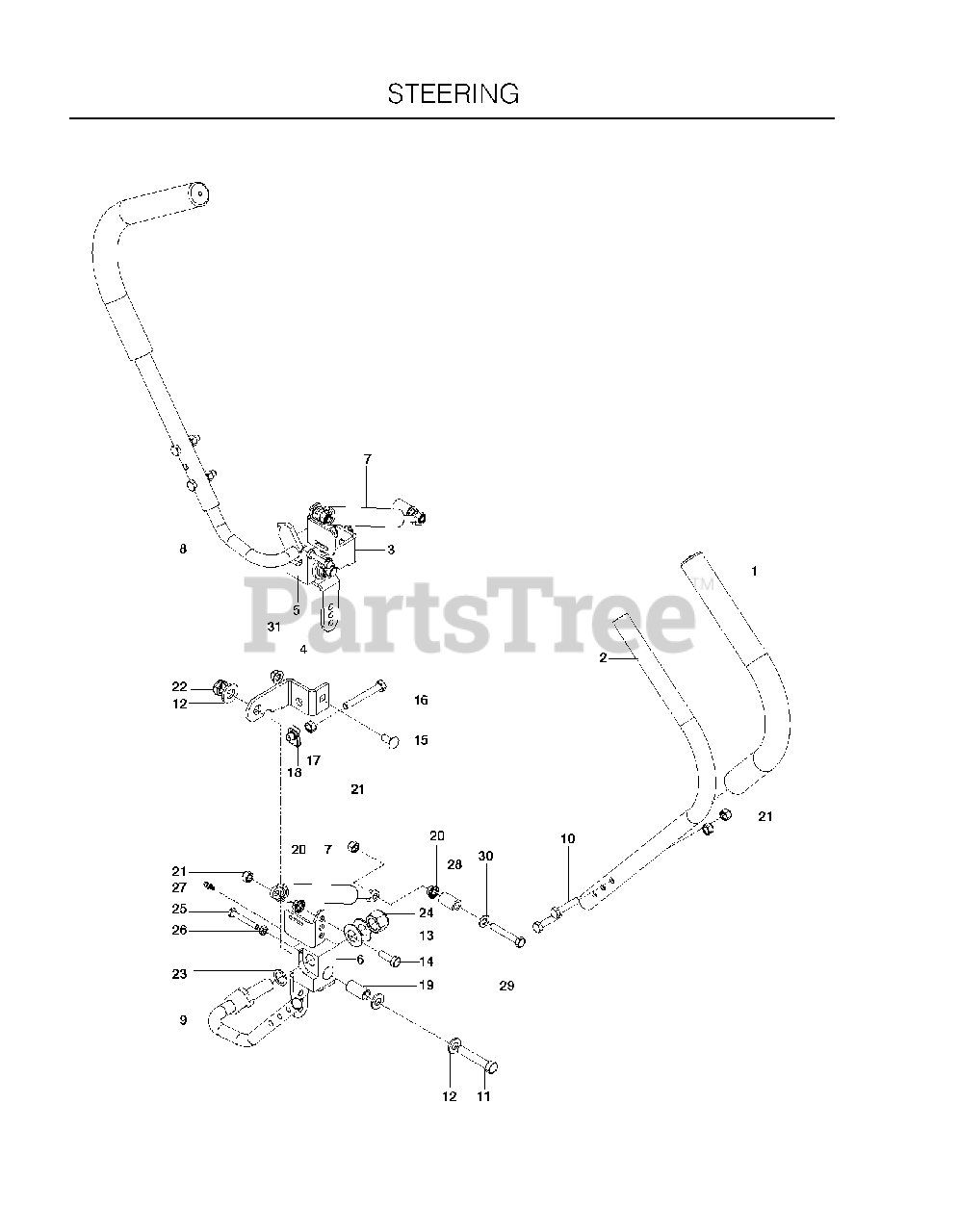

STEERING Parts Diagram

  • Title

$13.99

$

In Stock, only 1 left!

0

2

Husqvarna 539120160

LEVER UPPER

$109.99

$

In Stock, only 1 left!

0

3

Husqvarna 539117949

FORWARD STOP RH

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539117950

FORWARD STOP LH

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539120984

PIVOT RH (PLATED)

$78.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539120983

PIVOT LH (PLATED)

$

$

Not available

7

Husqvarna 539114453

DAMPENER, DUAL ACTION

$74.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539120159

LEVER.PLATED.RH

$102.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539120162

LEVER PLATED LH

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

11

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

12

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

13

Husqvarna 539911121

WASH 5/8 BEVELED DISC SPRING

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

17

Husqvarna 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

19

$

$

Not available

20

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, only 3 left!

0

23

Husqvarna 539115570

WASHER-.626IDX.056TK

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539110340

NUT 5/8-11 NYLOC

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539991003

BOLT 1/4C X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539991112

NUT 1/4-20 JAM

$3.99

$

In Stock, only 4 left!

0

27

Husqvarna 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 3 left!

0

28

$9.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

31

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0
